Product Description
COMPLETELY NEW, COMPLETELY MODERN
The new Jamo Studio 8 series has been completely reimagined to live seamlessly in modern, premium environments. Contemporary material and finish choices accentuate the clean, minimalist lines of this European design, while the compact cabinet designs are an ideal solution for urban living environments around the world.
ULTRA SLIM CABINET

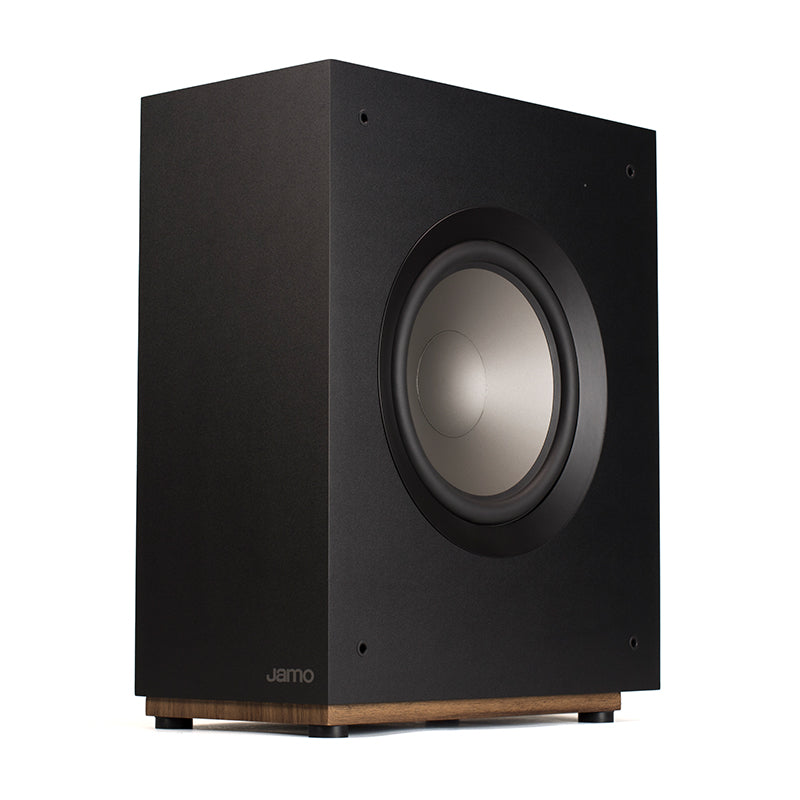

The Jamo Studio S 810 SUB utilizes an ultra-slim cabinet for exceptional placement flexibility and orientation flexibility - front firing against a wall or side firing next to a media console or cabinet.
At less than 9” deep, it can even be placed on its side and hidden underneath a sofa or chair.
The 90° power cable allows for extra tight placement against the wall, for minimal intrusion into the room.
BOTTOM MOUNTED AMPLIFIER
The high powered class D amplifier and input panel is mounted on the bottom of the cabinet, making for a clean, unobtrusive look in any orientation. 90° power cable and RCA cable are included for exceptional space management.
SPECIFICATIONS
| Frequency Response |
|
36Hz - 180Hz |
| Amplifier Type |
|
Class D |
| Amplifier Power (Cont/Peak) |
|
75W / 150W |
| Drivers |
|
25.4mm (10”) Polyfiber Woofer |
| Maximum Output |
|
110dB |
| Speaker Enclosure |
|
MDF |
| Enclosure Type |
|
Bass Reflex via slot port |
| Inputs |
|
RCA Line-In/LFE |
| Finish |
|
Black, Walnut, White |
| Dimensions |
|
507mm x 404mm x 226mm 19.9” x 15.9” x 8.9” |
| Weight |
|
26 lb (11.8 kg) |
