Connect Up to Three 8K Devices

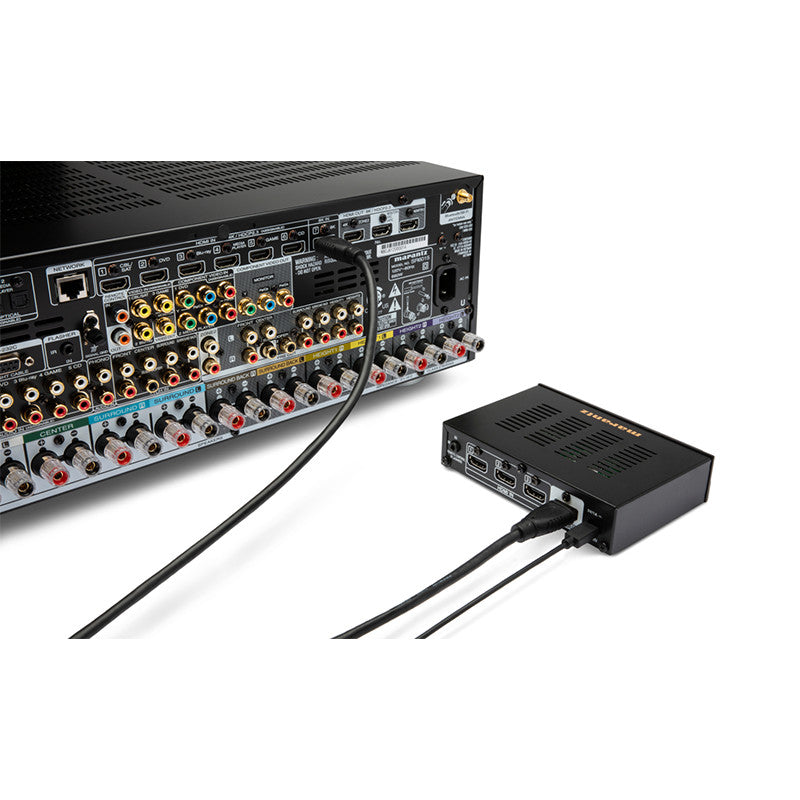

The Marantz 3 in/1 out HDMI Switcher allows you to connect up to three 8K devices to select Marantz 8K AV receivers.
Total Ease-of-Use
Use HDMI-CEC to power on and switch inputs automatically on both the HDMI Switcher and the AV receiver.
Compact Size and Elegant Look
No bigger than a Blu-ray case in width and depth, the VS3003 can fit just about anywhere. It also features a premium look thanks to a brushed black Aluminum front plate.
Custom-Install Friendly

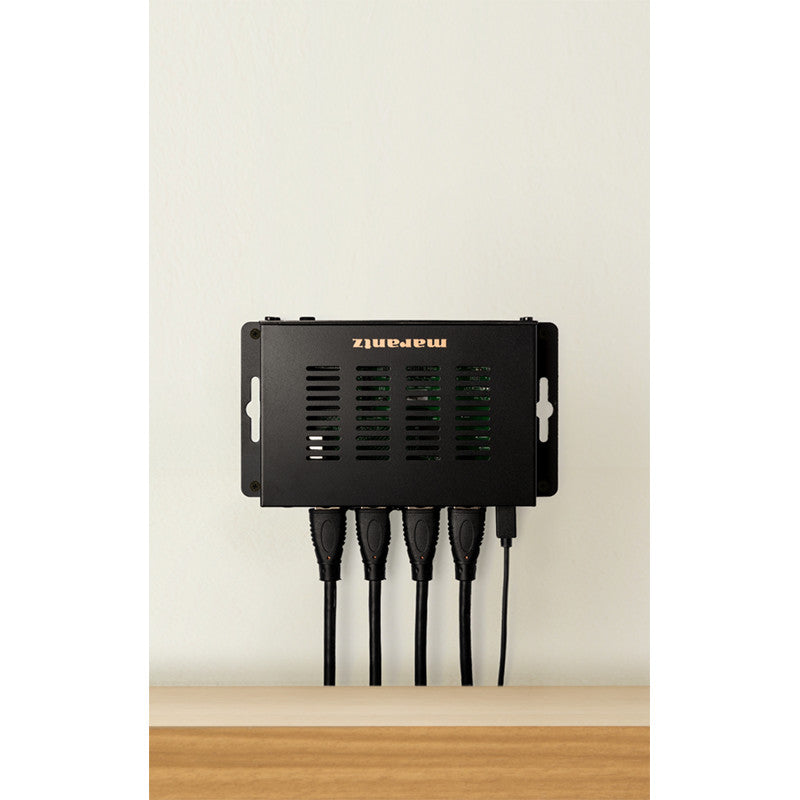

A wall-mount bracket is included to allow mounting the HDMI Switcher on a wall. It also features wired IR remote repeater connectivity in case the VS3003 and AVR are in a rack system or behind a cabinet blocking IR reception.
Features
| IR Remote Control (Flasher) In | For supplied remote only |
| Input selector - toggle | Yes |
| IR Sensor | Yes |
| Last input memory | Yes |
| AVR Control | o via IR sensor |
| Auto Power ON/OFF | Yes |
HDMI
| HDMI Inputs | 3 |
| HDCP2.3 support | Yes |
| HDMI Outputs | 1 |
| HDMI max Resolution (8k / 4k) | 8K60AB, 4K120AB |
| CEC | Yes |
General
| Available Colors: Gold / Silver / Black / Silver-Gold | No / No / Yes / No |
| Metal Front Panel | Yes |
| Remote Control | Yes |
| Power Adaptor | Yes |
| Maximum Dimensions (W x D x H) in mm | 140 x 98 x 34 |
| Weight in kg | 0.3 |
| Carton Maximum Dimensions (W x D x H) in inches | 11.22 x 10.82 x 2,68 |
| Carton Weight (inc. product) in lbs | 1.98 |
