Advanced sandwich construction of plinth with combination of MDF, carbon fibre and steel pellets
Plinth manufactured with thermo treatment
Mass loaded subchassis design with magnetic feet
Inverted main bearing with ceramic ball/plate
7,2kg acoustically inert aluminium platter with TPE damping and vinyl mat on the top
DC power supply with AC motor
Precise DC driven AC generator (Speed Box) built-in
Electronic speed control with 33/45 rpm switching
Outboard motor construction with massive steel base
Pre-mounted 10“ tonearm 10 cc Evolution
5P Connect it Phono CC cable with RCA plugs (XLR available as an option)
Technical Specifications
Speed
33, 45 (electronic speed change)
Drive principle
Belt drive
Platter
14.4 kg aluminium (300 mm diameter)
Mains bearing
Inverted stainless steel with ceramic ball/plate
Speed drift
33: +/- 0.11% I 45: +/- 0.10%
Wow & flutter
33: +/- 0.01% I 45: +/- 0.01%
Signal to noise
73dB
Tonearm
10” EVO carbon
Effective arm length
254 mm
Effective arm mass
8.5 g
Overhang
16 mm
Tracking force
10 - 35 mN
Included accessories
15 volts DC / 1600 mA power supply
Power connection
110/240 Volt - 50 or 60 Hz
Power consumption
15 Watts max / < 0.3 watt standby
Dimensions
480 x 210 x 330 mm (WxHxD)
Weight
22. kg net
Weight (Base)
14.5 kg net
PROJECT RPM-10 PO

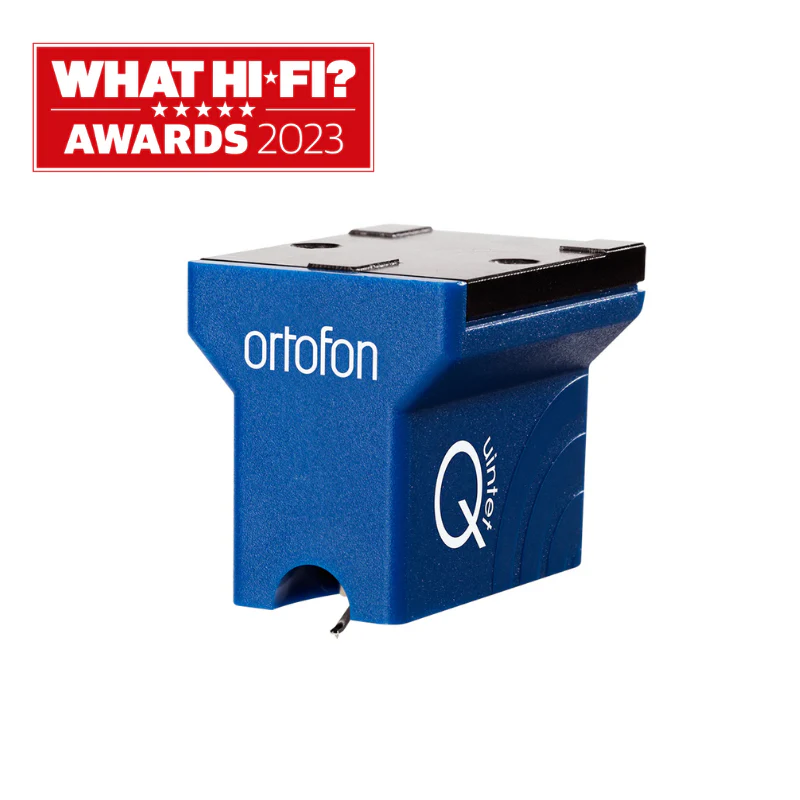

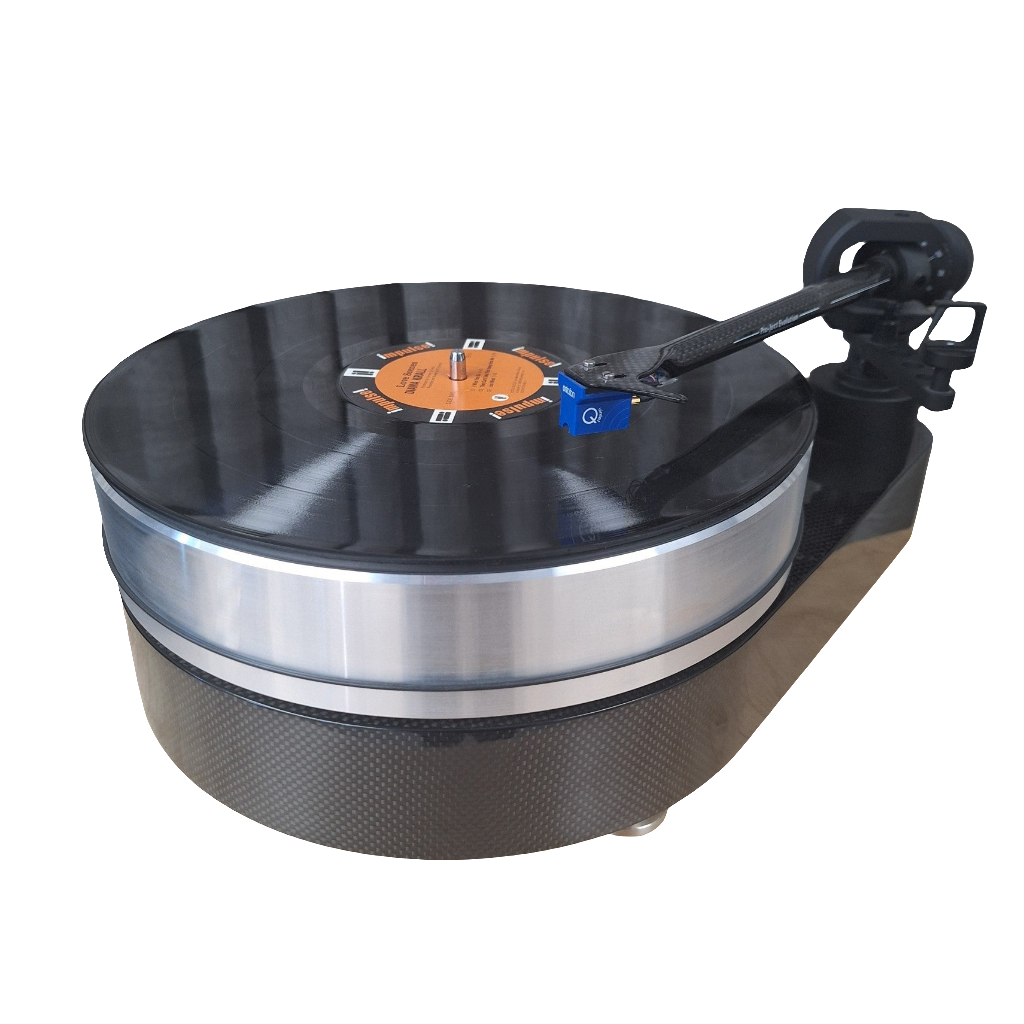

Pro-ject RPM 10 Carbon - High-end turntable with Ortofon Quintet Blue MCC | Pre-Owned
Sale priceR 59,990.00
Regular price R 149,999.00You savedR 90,009.00 OFF
No reviews
Clever design with true high-end sound quality
The RPM 10 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction. A special complex heat treatment and
Read more
Clever design with true high-end sound quality
The RPM 10 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction. A special complex heat treatment and a carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface via the included Ground it Carbon and its magnetic feet. With two magnets located in the feet, the turntable is practically floating. The studs in the feet are only used for keeping them centered. Due to this unique feature the turntable is perfectly decoupled from the surface it is placed on. Combined with a new special polished aluminium platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolute stable turntable speed with extra low rumble. The extra heavy outboard motor unit is equipped with a precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least the non-compromise 10“ Evo tonearm with conical carbon-fibre armtube and inverted bearing design ensures perfect tracking, even with demanding cartridges. Highly flexible top-grade copper internal wiring. Delivered with topgrade 5P phono cable „Connect it CC“ with RCA plugs (XLR as an option).
In the box:
RPM 10 Carbon (with or without Ortofon Cadenza Red)
