Precision Sound, Size-defying Bass

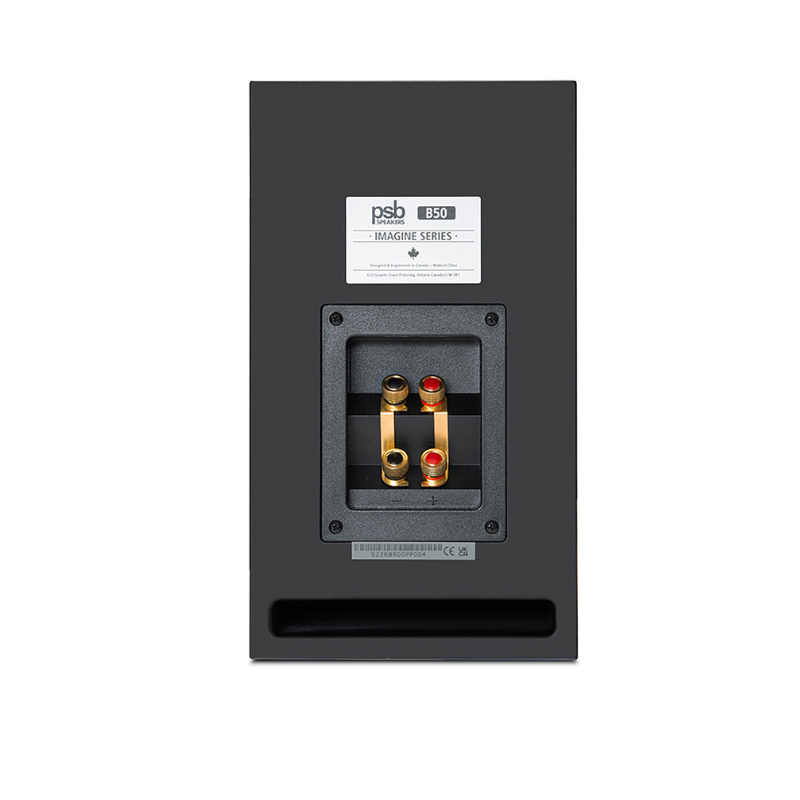

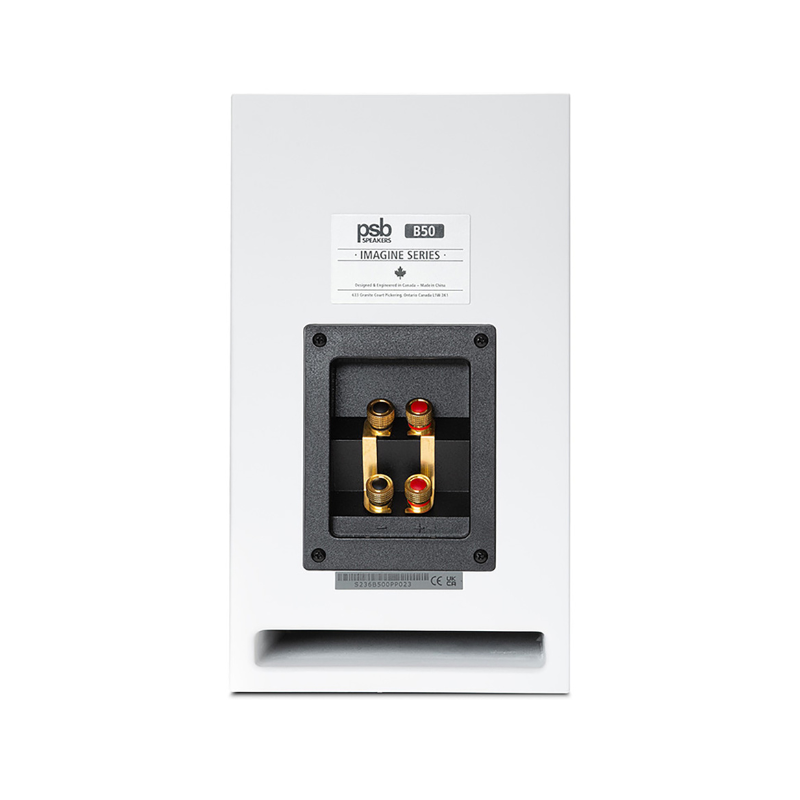

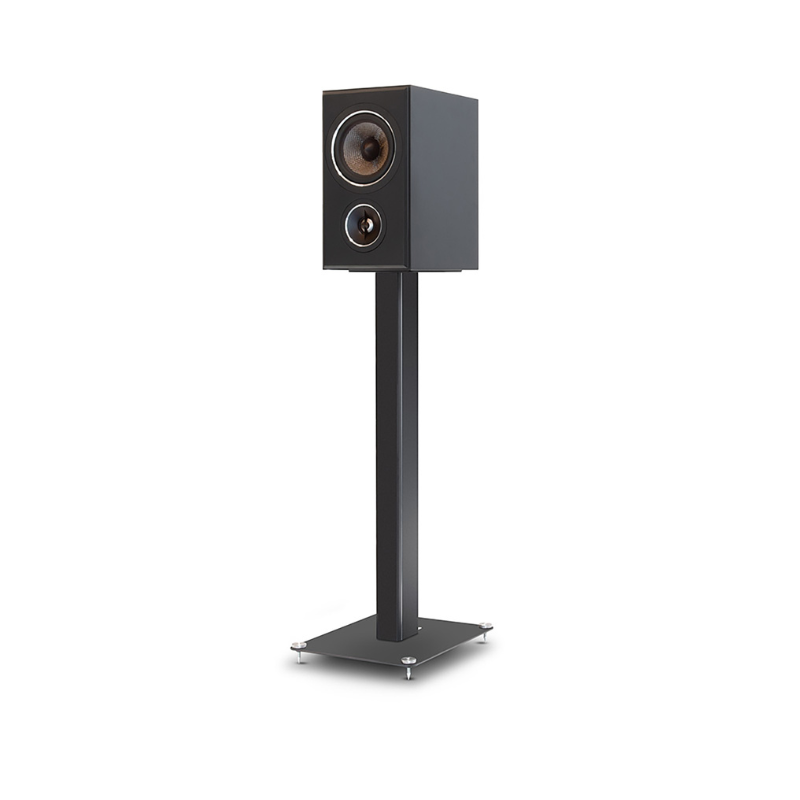

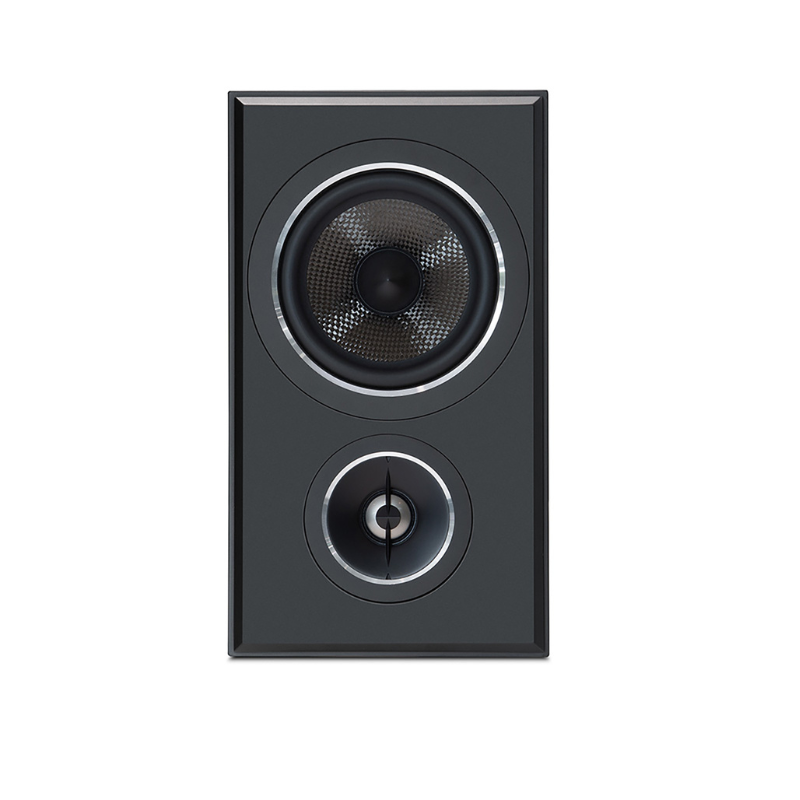

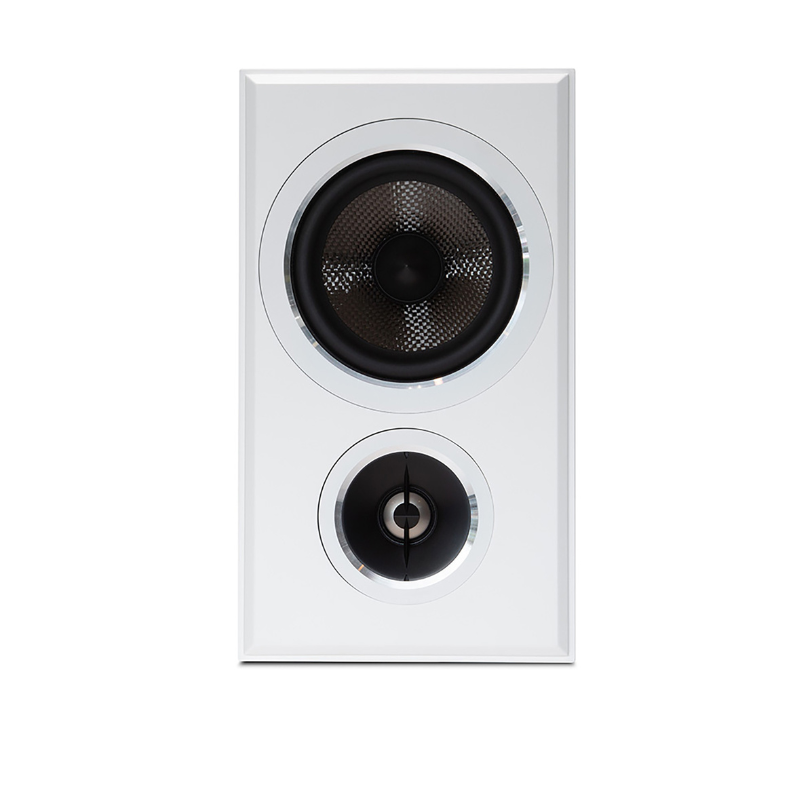

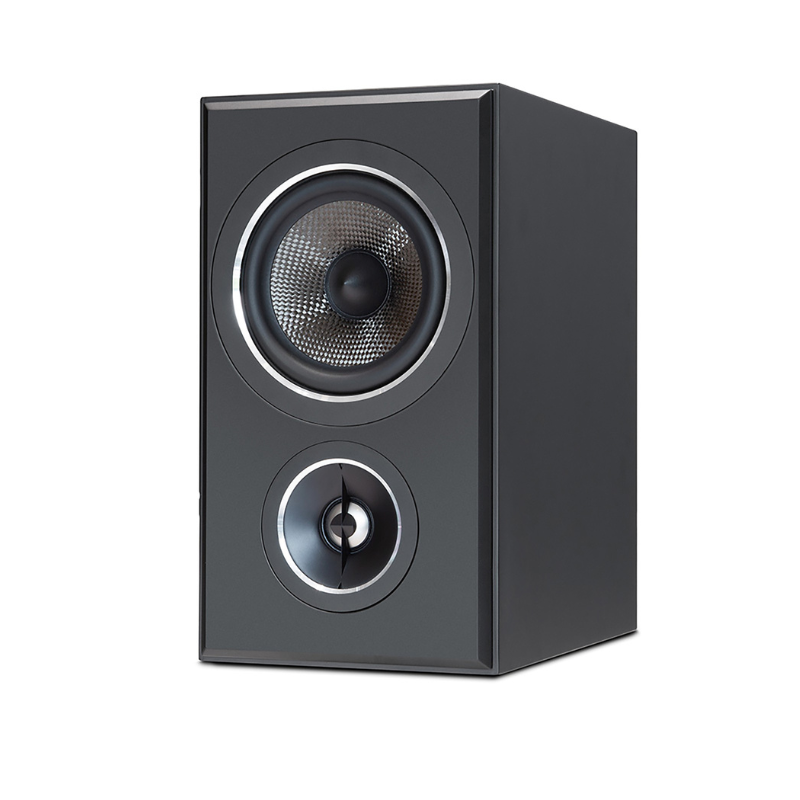

The B50 bookshelf speakers deliver room-filling true-to-nature sound, underscored by an unexpectedly impressive bass performance. Featuring a 1” tweeter and a 5.25” woofer meticulously housed within a compact architectural footprint, the B50 also unveils a sophisticated 2-way bass-reflex arrangement complemented by a rear-facing slot port. The B50s can be seamlessly integrated into any multi-channel or surround sound setup by placing them on the AST-25 floor stands.
Placement Flexibility
Enjoy crisp, detailed sound wherever you place the B50 bookshelf speakers. Their performance-focused components offer placement flexibility, wider bandwidth, higher output, enhanced efficiency, superior power handling, reduced distortion, and a smooth tonal balance. Accuracy is maintained at all sound levels, with clarity even at lower volumes, ensuring every note resonates.
Bring your Entertainment to Life
Elevate the way you listen to your music and movies. Seamlessly adaptable to hi-fi or home theatre setups, the B50s deliver a sonic experience that captivates any listener. From cinematic soundtracks, easy music listening to whisper quiet dialogues, you can expect a level of performance that defies its compact footprint.
Refined Design

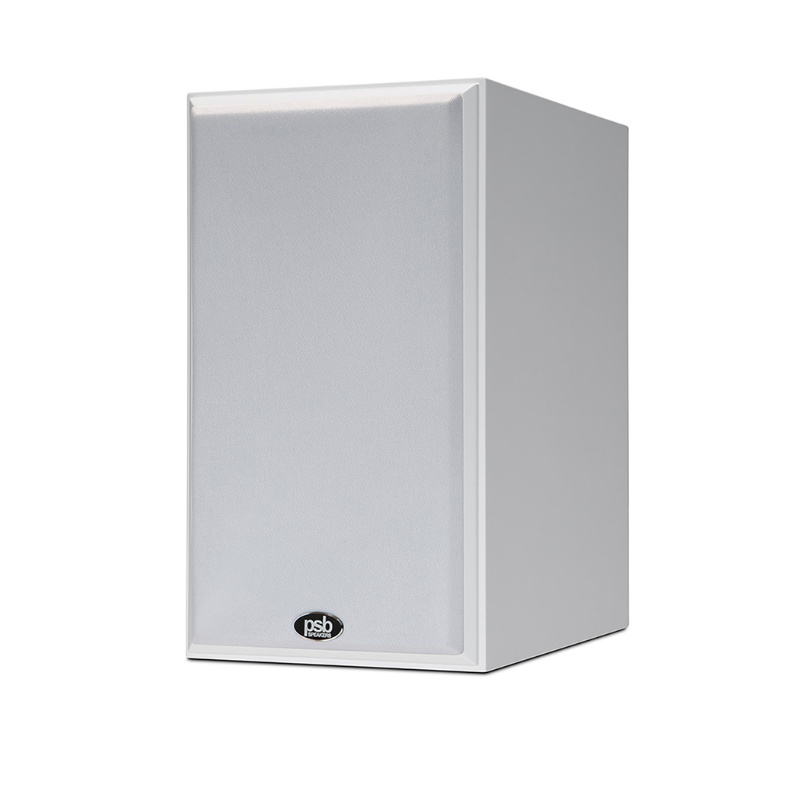

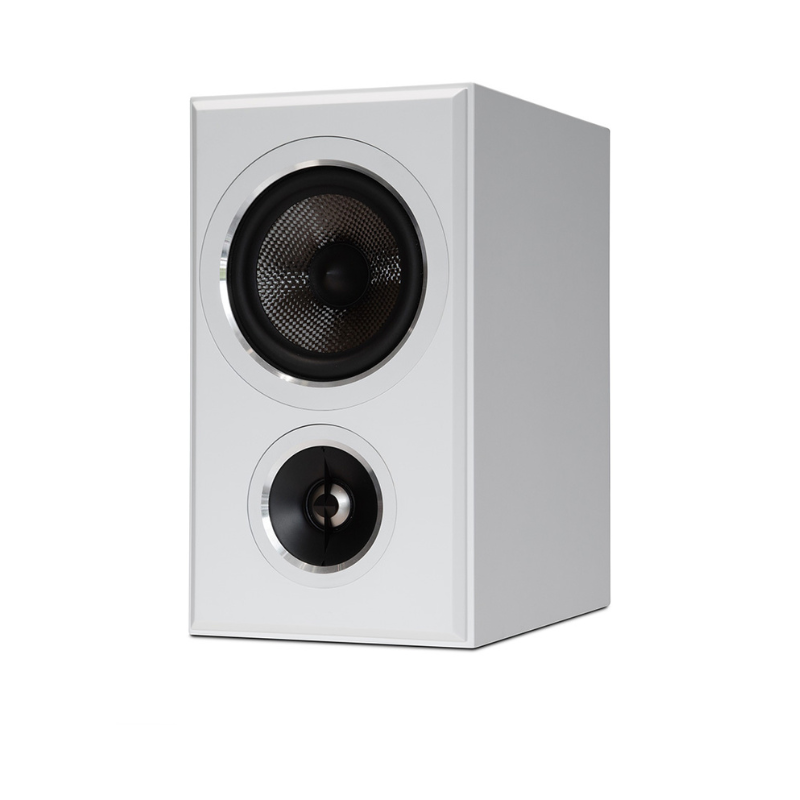

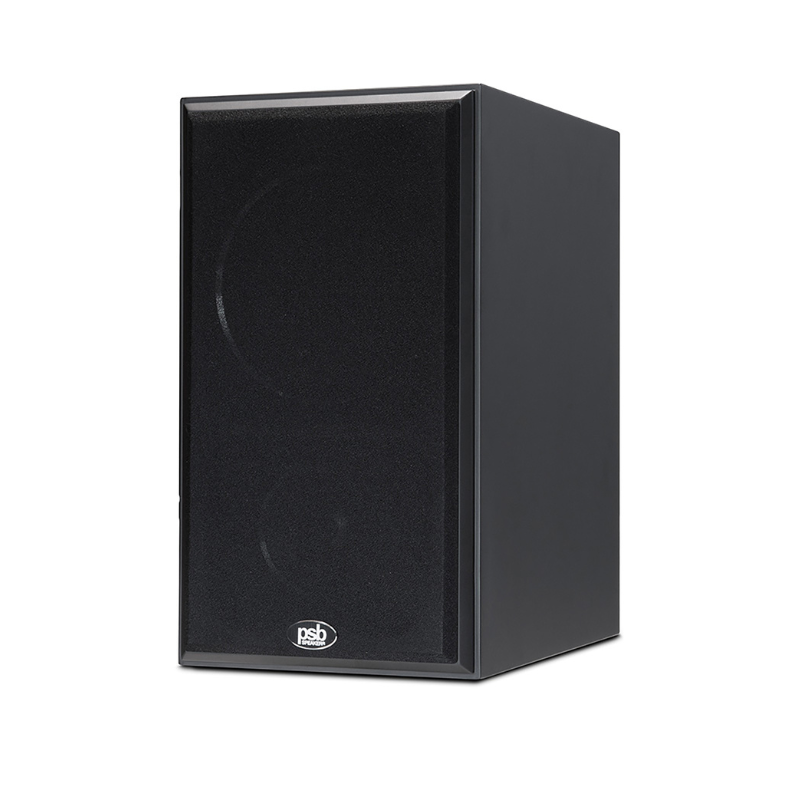

With minimalist elegance offered through a slim and compact cabinet design and neutral Satin Black and White finish options, the B50 bookshelf speakers integrate seamlessly into any space. Aluminum trim and chamfered edges not only captivate the eye but also sync perfectly with the PWM Series, creating an entertainment oasis at home.
Specifications
Audio Performance
-
Frequency Response (On Axis @ 0° ±3dB): 45Hz – 23,000Hz
-
Frequency Response (On Axis @ 0° ±1.5dB): 60Hz – 20,000Hz
-
Frequency Response (Off Axis @ 30° ±1.5dB): 60Hz – 10,000Hz
-
Low Frequency Cutoff (-10dB): 36Hz
-
Sensitivity:
-
Anechoic: 85dB
-
In-Room: 87dB
-
-
Impedance:
-
Nominal: 8Ω
-
Minimum: 4Ω
-
-
Recommended Amplifier Power: 20 – 150W
-
Program Power Handling: 150W
Driver Complement
-
Tweeter:
-
1” (25mm) Titanium Dome
-
Ferrofluid Cooling
-
Neodymium Magnet
-
-
Woofer:
-
5.25” (133mm) Woven Carbon Fibre Cone
-
Rubber Surround
-
Crossover
-
Type: 2-way
-
Crossover Point: 2,200Hz
-
Crossover Design: 4th-Order Linkwitz-Riley (LR4)
Cabinet & Design
-
Design Type: Bass Reflex (Rear Slot Port)
-
Finish Options: Satin Black or Satin White
Dimensions & Weight
-
Dimensions (W × H × D):
-
171 × 300 × 251 mm
-
(6 3/4" × 11 13/16" × 9 7/8")
-
-
Weight:
-
Net: 5.13 kg (11.3 lb) each
-
Shipping: 11.9 kg (26.24 lb) per pair
-
