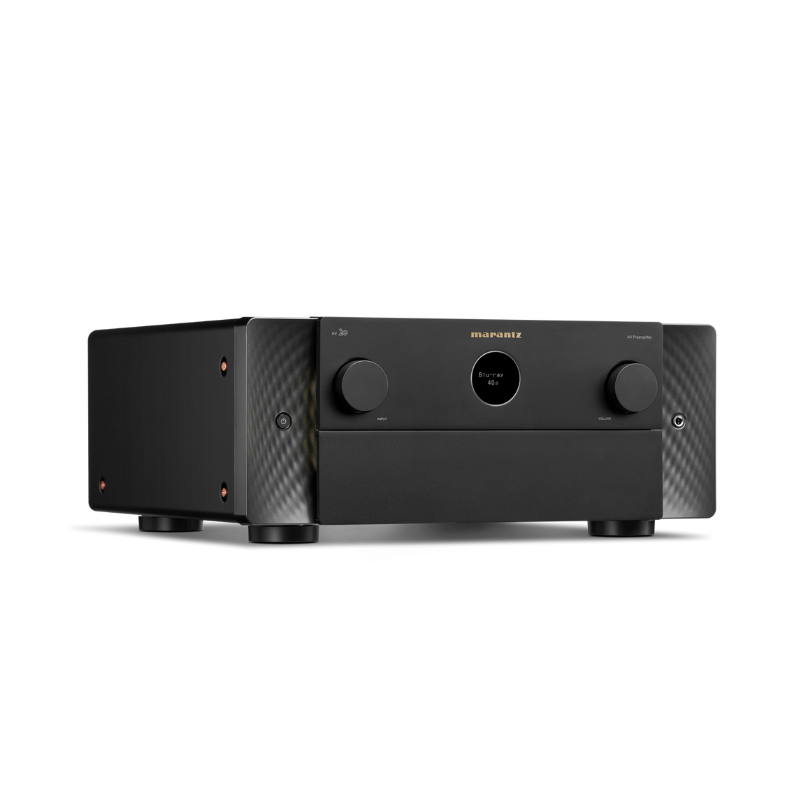

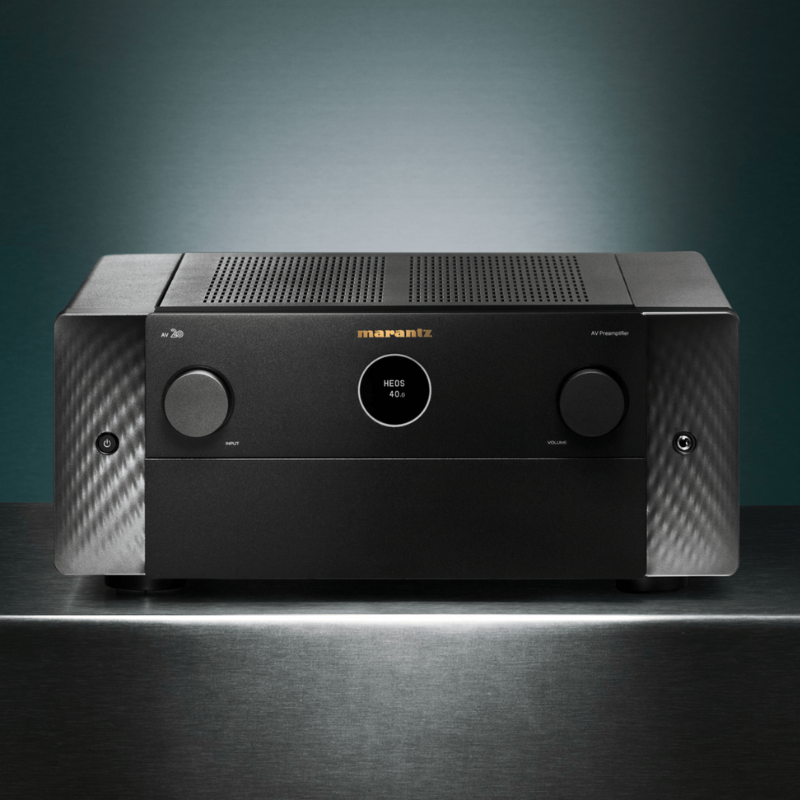

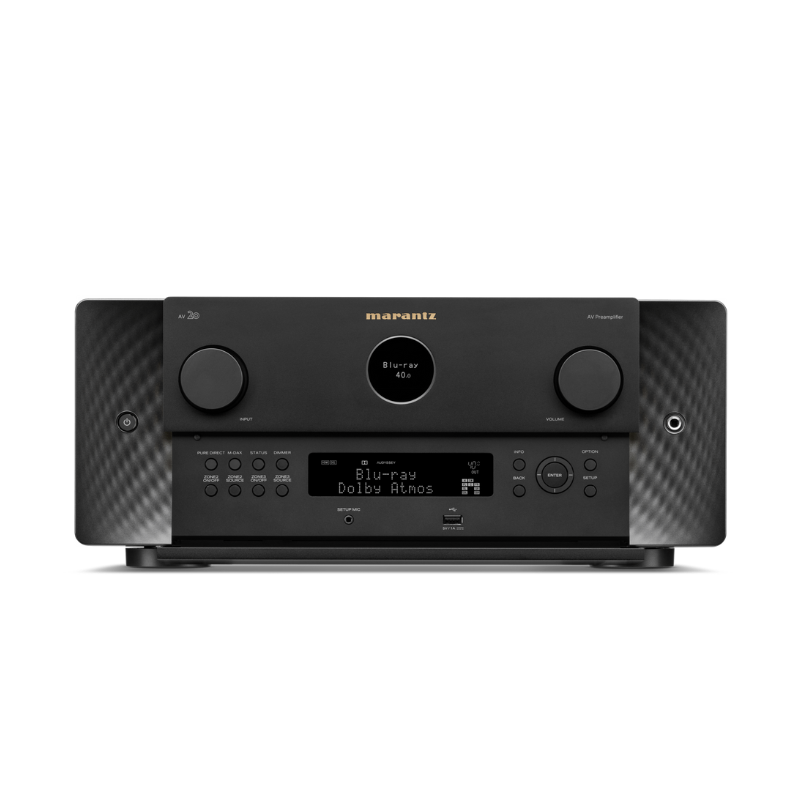

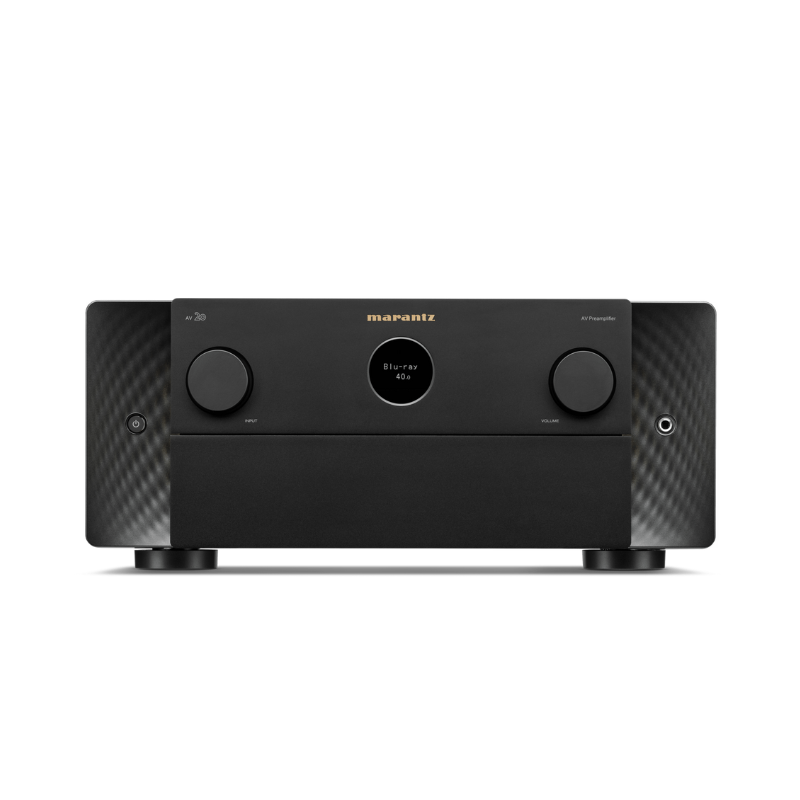

Marantz AV 20 Reference 13.4 Ch. AV Preamplifier and Powered by HEOS™

Gallery
Description

Description

Reference Quality Performance
AV 20 is engineered to create the most memorable home theater experiences possible.

Sound Master Tuned
Our Marantz Sound Master meticulously tuned AV 20 for amazing performance with careful parts selection to create outstanding sound in your home.

Endlessly Customizable
Comprehensive connectivity options and extensive optimization ability ensures AV 20 will always deliver the perfect results to suit your home theater.

System Matching

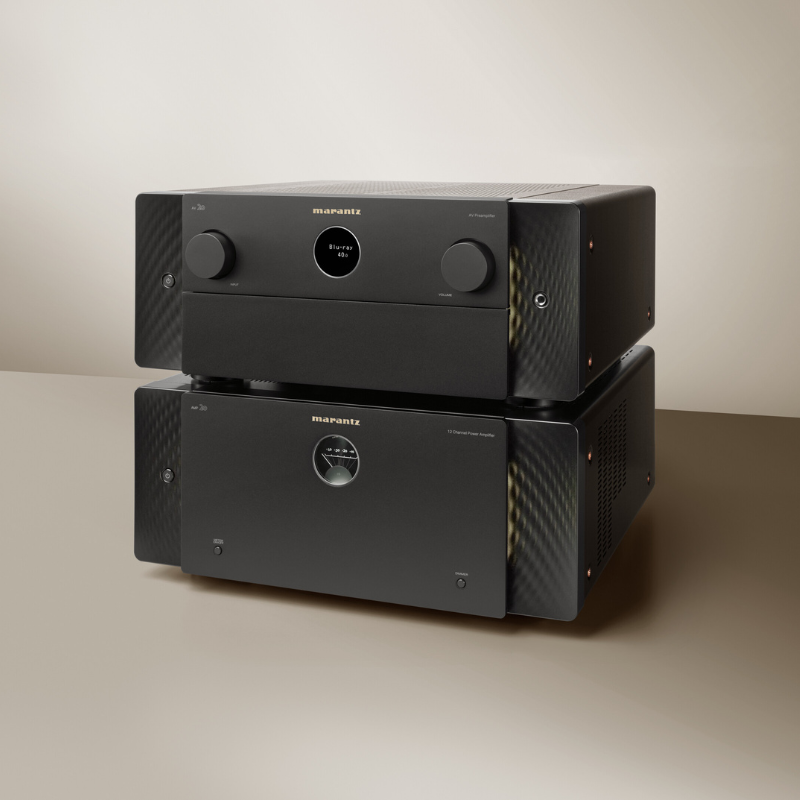

Make sure you get the best possible performance from your AV 20 by combining it with other Marantz products – such as the AMP 20.

_____________________

Details & Specifications

Multichannel Surround

Sound Enhancements

Copper-Plated Chassis / Toroidial Power Transformer Yes / Yes
Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM) Yes / Yes (SA3, monolithic)
Pure Direct / Gold-Plated RCA Terminals Yes / Yes
Clock Jitter Reducer Yes
Dirac Live upgradability Yes
Compressed Audio Enhancer: MDAX2 Yes
Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC Yes / Yes / Yes
Audyssey MultEQ XT32

Network

Wi-Fi / Bluetooth / Ethernet Yes / Yes / Yes
HEOS Multi-Room and Streaming Yes
Bluetooth Retransmit for Bluetooth HeadphonesYes
Apple HomePodYes
Lossy formatsMP3, WMA, AAC
Lossless formatsFLAC, FLAC HD 192/24,
ALAC, ALAC 192/24,
WAV, WAV 192/24
DSD Audio StreamingYes (2.8/5.6MHz)
Gapless PlaybackFLAC, ALAC, WAV, DSD
TuneIn / AirPlay 2 / SpotifyYes / Yes / Yes
Roon-ReadyYes
Other Streaming Services*Amazon Music / TIDAL /
Deezer / Napster / Soundcloud
Compatible with Remote App for Smartphones Marantz AVR Remote
Compatible with Remote App for Tablets Android / iOS / Amazon Kindle

HDMI

Total HDMI Inputs 7 (rear)
HDCP2.3 Support Yes
HDMI Outputs: Main / Zone 2 / 1
HDMI Scaling1080P/4K to 8K
GUI Overlay on HDMI Yes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out 7 / 2 (up to 40Gbps)
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
Enhanced ARC Yes
ALLM (Auto Low Latency Mode) Pass-Through for Gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes
HDMI Pass-Though in Standby Mode Yes
DSD Audio Capability Yes
Auto LipSync Yes

Inputs Outputs

Composite In / Out 2 / 0
Component In / Out 1 / 0
HDMI In / Out 7 / 3
Multi-Room Video Out: Video / HDMI No / Yes
Analogue In 6 (1x XLR)
Phono (MM) In Yes
Digital In: Optical / Coaxial2 / 2
Multi-Room Out: analog / digital2 / 0
Multichannel Pre-Amp Out Yes (15.4 RCA, 15.4 XLR)
Subwoofer Out4 (independent) RCA, XLR
Speaker A / B assignable pre out
Bi-amp drive assignable pre out
Front USB Input / USB Audio Yes / Yes
USB Power Supply (Rear) Yes
AM/FM Tuner Yes

Multi-Room CI

HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogueYes (2 ch) / Yes (2 ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-Out No / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
IR Flasher In / Marantz Remote Bus Yes / Yes
DC Trigger Output 3
HDMI Diagnostics Yes

Others

General

Metal Front Panel Yes
System Remote Control RC051SR
Backlit Yes
Power Consumption 90 W
Standby Consumption 0.2 W
CEC Standby Consumption in W 0.5 W
Network Standby Consumption <2.0 W
Maximum Dimensions
Antenna:Horizontal:(W x D x H)
Antenna:Vertical :(W x D x H)
W/o Antenna:(W x D x H)
17.4 × 18.0 × 7.5 in.
17.4 × 18.0 × 10.0 in.
17.4 × 17.2 × 7.5 in.
Weight 33.1 lbs.
What's in the boxMain unit, remote control, batteries, AM/FM antennas,
wire labels, quick start guide, Audyssey microphone, card board microphone stand,
2 External Detachable Antenna, AC cord
UPC Code 747192143848

AV20/N1B

Marantz AV 20 Reference 13.4 Ch. AV Preamplifier and Powered by HEOS™ (Each)

R 143,990.00

AV 20 represents the highest measure of performance and capability for reference-level home theater systems. This reference 13.4 Channel Balanced AV Preamplifier features Marantz HDAM discrete circuitry, and boasts seven HDMI inputs, each of which is 8K UHD compatible.
