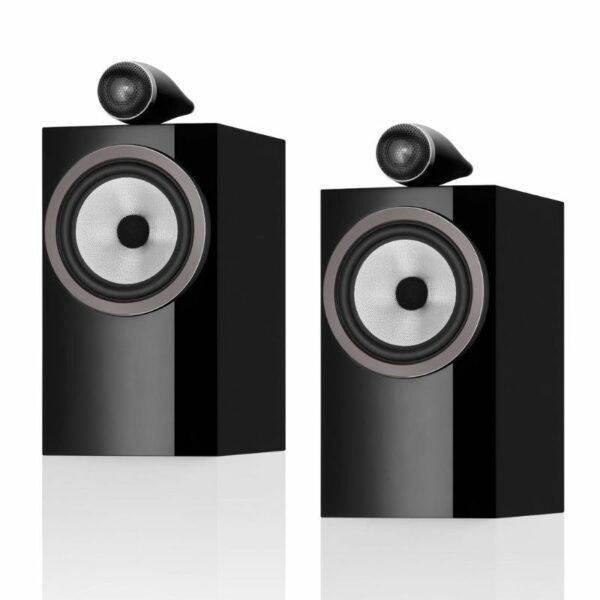

Bowers & Wilkins 705 S3 Stand-Mount Speaker (Pair)

Experience the detail
This uncompromising two-way speaker reveals subtle nuances in music others miss. Its high-performance features include a solid body Tweeter-on-Top design borrowed from the 800 Series Diamond.

A house for high frequencies
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.

Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

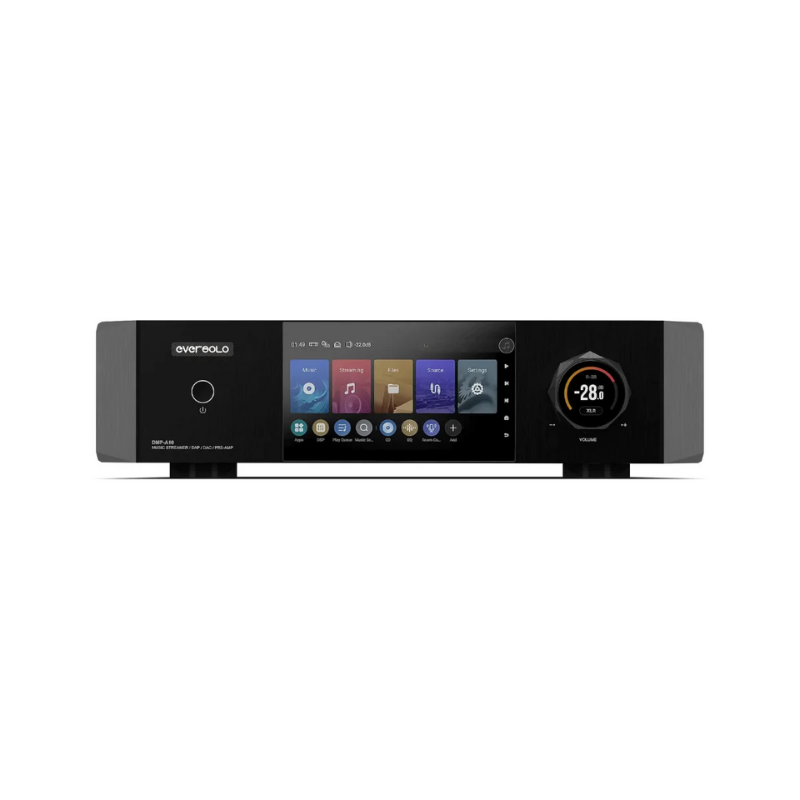

EverSolo DMP-A10 Music Streamer (Each)

Crafted Like a Piece of Art
The DMP-A10 chassis blends modern aesthetics with romanticism, precision-engineered with CNC technology. At 430mm, it fits seamlessly into high-end audio systems, combining functionality and elegance.

Precision Meets Purity
With a high-speed electrical isolation system , the DMP-A10 separates noise and interference from different circuit boards. The complete physical isolation eliminates any possible interference to audio circuits in the transmission of system circuit signals, ensuring that the audio signal remains pure and undisturbed. The display panel features a shielding design as well, resulting in outstanding audio clarity and precision for an unrivaled listening experience.

Isolated USB Audio, Ultimate Accuracy
By incorporating an advanced electrical isolation circuit, the DMP-A10 minimizes interference from high-noise power sources and grounding loop issues when connecting external DACs and USB devices. Utilizing iCoupler ® technology, it transmits both the clock signal and data to the isolated side in the correct time order and then resynchronizes them to maintain consistency. This ensures that USB signals are transmitted with high fidelity, reducing jitter and maintaining signal accuracy.

Double Subwoofer Output
Featured two subwoofer output ports, the DMP-A10 allows you to connect single or dual subwoofers as needed, or even disable the subwoofer function. MIXER and STEREO modes can be switched with ease, independent adjustments of subwoofer gain, crossover frequency, and delay are available as well.

OCXO Clock System
The Eversolo custom-developed temperature control technology for OCXO clock system ensures both audio crystal oscillators(45.1584MHz and 49.152MHz) operate at a constant optimal temperature point, thus eliminating frequency fluctuations caused by temperature changes, delivering extremely low phase noise. Each oscillator undergoes a strict testing process. Therefore, with jitter levels below 50fs, more accurate clock signals are provided to the audio system, adding more clarity, detail and air in sound.

SFP Fiber Network Interface
To eliminate interference from high-frequency noise in network switches and other network equipment, the DMP-A10 introduces an SFP Fiber port, allowing users to connect DMP-A10 to local network via fiber optics. In this case, cleaner audio is delivered without electrical connection between the network switch and the DMP-A10. Traditional RJ45 Ethernet connections are also supported for easy integration.

Crystal Clear Audio
Featured with excellent conductivity and signal transmission, silver-plated single-crystal copper wires are used to connect DMP-A10’s audio terminals, bringing extra benefit to audio with more clarity, transparency and details

Room Correction Technology
With Eversolo Digital Room Correction, the DMP-A10 analyzes your listening environment with the high-precision microphone, adjusting sound frequencies through complex algorithms to eliminate acoustic issues. The result? A listening experience that feels more immersive and lifelike, tailored specifically to your space.

Acoustic measurement
To achieve optimal accuracy during room correction, please ensure a quiet environment and limit any movement.

 Measurement curve
Measuring room acoustic curves.

Best listening position
Room correction supports connection via the device’s USB port or a microphone connected to the mobile phone, and you can also use the built-in microphone of your phone. To ensure measurement accuracy, it is recommended to use a professional measurement microphone.

Digital to Digital Converter
The DMP-A10 supports DDC(Digital to Digital Converter) functionality. Digital signals from USB audio input, coaxial/optical input, and ARC input can be output as SPDIF signals or analog signals after various EQ adjustments. Additionally, analog signal input can be captured by the high-spec ADC (up to 192kHz) , then output as SPDIF signals or analog signals after EQ adjustments.

Robust Power, Ultra-Low Noise
To further enhance sound purity, the DMP-A10 features dual power supplies with ultra-low background noise, providing stable power output for both the digital system and analog audio circuits. The ripple of the analog audio power supply can be reduced to below 30µVrms, creating a quiet and pure listening environment. Additionally, it incorporates a patented intelligent switching technology for the linear power supply voltage input, enabling compatibility with voltages worldwide without flipping switches.

Fully Balanced Analog Preamplifier Circuit
The DMP-A10 is equipped with a high-performance fully balanced preamp circuit, supporting XLR/RCA analog inputs. It features a +10dB analog gain and the R-2R analog volume control, ensuring ultra-low noise and distortion, providing better signal-to-noise ratio, dynamic range, and other performance metrics.

Powered by EOS
The Eversolo Original Sampling-rate Audio Engine(EOS) ensures original sample rate output from your favorite music apps. The DMP-A10 bypasses the SRC limitations, sending audio to your speakers without any changes. It also supports direct output from third-party apps like Apple Music for high-resolution lossless playback.

XMOS316 Audio Processor
using the third-generation XMOS316 processor, the DMP-A10 delivers faster processing and USB bandwidth, supporting lossless transmission of audio data. USB ports support up to DSD512 Native and PCM768kHz@32bit. Optical and Coaxial ports support DOP64, PCM192kHz@24Bit.

Next-Level DAC Solution
Powered by the industry-leading ES9039PRO DAC chip, the DMP-A10 brings audio to life with its HyperStream IV architecture and enhanced signal processing capabilities, significantly reducing distortion and noise to provide pure audio output. It also introduces a new clock management series to minimize the impact of jitter on audio signals.

Stream Your Favorite Music Services
Enjoy direct access to mainstream music services on DMP-A10. Whether it’s TIDAL, Qobuz, Amazon Music, Tuneln, IDAGIO, Radio Paradise, SoundCloud, Calm Radio, KKbox or Highresaudio, the DMP-A10 covers it all. (More music services will be added in the future.)

Wireless Streaming Hub
With support for Roon Ready*, Tidal Connect, Squeeze Connect, and DLNA protocols, the DMP-A10 serves as your streaming hub at home. Wherever you are in your house, just sit back and enjoy.

Home Music Center
In addition to two high-speed USB 3.0 ports and two sets of SSD slots, the DMP-A10 supports NFS, SMB, UPnP, and more sharing protocols, allowing you to stream media from NAS devices or network drives effortlessly. Even high-bitrate files like DSD512 master recordings can be played without stuttering. Additionally, it supports loading and playing music from WebDAV, Plex, Emby and Jellyfin.

Magical Volume Control
A fully balanced analog volume adjustment network composed of precision resistors and relays achieves accurate volume control, effectively suppressing distortion and noise in the analog signal. It also features volume protection, automatically reducing excessive volume to the designated safe level when startup or switching inputs. The incorporation of R2R analog volume control ensures that the DAC can operate at its optimal Bypass state continuously.

Control at Your Fingertips
The DMP-A10 comes with multiple control options. Except for the touch screen and mobile control application, there is a Bluetooth and infrared remote control included with the device. Made from a single cast of alloy material, the remote has a refined and streamlined appearance that fits perfectly in your hand, providing effortless control over your music.

Preserving Timeless Quality
The DMP-A10 allows CD playback and ripping by connecting a USB optical drive. Using a unique data verification and error correction mechanism, it ensures the lossless preservation of CD audio data. The CD app includes a smart algorithm to fetch album and track names(for officially released CDs), automatically generating information for albums and artists.

Bigger and Better
The upgraded control panel features a larger touch screen display for an immersive user experience. With operation experience similar to mobile devices, the DMP-A10’s fully intelligent music interface is intuitive and smooth, offering better viewing experience like larger album art displays. It is designed not only for exceptional sound but also for a luxurious visual enjoyment.

Qualcomm Bluetooth
With Qualcomm’s QCC5125 chip, Bluetooth 5.0 connectivity offers the convenience of wireless streaming without compromising sound quality.

SPECIFICATIONS

Product type
Streamer

Touch screen
6.5″ LCD Full HD

RAM
4Go DDR4

ROM
64Go eMMC

DAC
ES9039PRO

USB interface
XMOS XU316

AOP
OPA1612

Power supply
Dual low-noise linear + digital power supplies

SSD support
M.0 NVME 3.0 protocol 2280 up to 4TB (SSD sold separately)

Inputs
1x Ethernet RJ45 (10/100/1000Mbps)
1x Balanced XLR
1x Single-ended RCA
1x HDMI ARC
2x SPDIF Coaxial
1x USB-B
2x Optical Toslink

Outputs
1x Balanced XLR
1x Single-ended RCA
1x SPDIF Coaxial
1x Optical Toslink
2x USB-A
2x Subwoofer output
12V trigger

Wireless connectivity
2.4G+5G dual-band WiFi
Bluetooth 5.0

Suppported sample rates
USB / I2S: PCM up to 32bit 768kHz, DSD up to DSD512

Optical / Coaxial: PCM up to 24bit 192kHz, DSD DoP64

HDMI ARC: PCM up to 24bit 192kHz

Supported streaming services
Tidal
Qobuz
Amazon Music
Deezer
Apple Music
Highresaudio
Paradise Radio

Supported transmission protocols
WebDAV
UPnP
AirPlay
DLNA
Tidal Connect
Roon Ready
…

Supported Bluetooth Codecs
SBC
AAC
aptX
aptX HD
aptX LL
LDAC

Compatible OS (USB)
Windows 10 / 11
Android
iOS

RCA output
Output level
2.1Vrms

Frequency response
20Hz – 20kHz (±0.15dB)

THD+N
< 0.00009% (-119dB) @ A-wt

Crosstalk
> -122dB

Dynamic range
> 129dB

SNR
> 129dB

XLR output
Output level
4.2Vrms

Frequency response
20Hz – 20kHz (±0.15dB)

THD+N
< 0.000078% (-122dB) @ No-wt

Crosstalk
> -123dB

Dynamic range
> 130dB

SNR
> 130dB

General
Power supply
110-240VAC 50/60Hz

Power consumption
30W

Dimensions
430 x 310 x 117mm

Color
Black

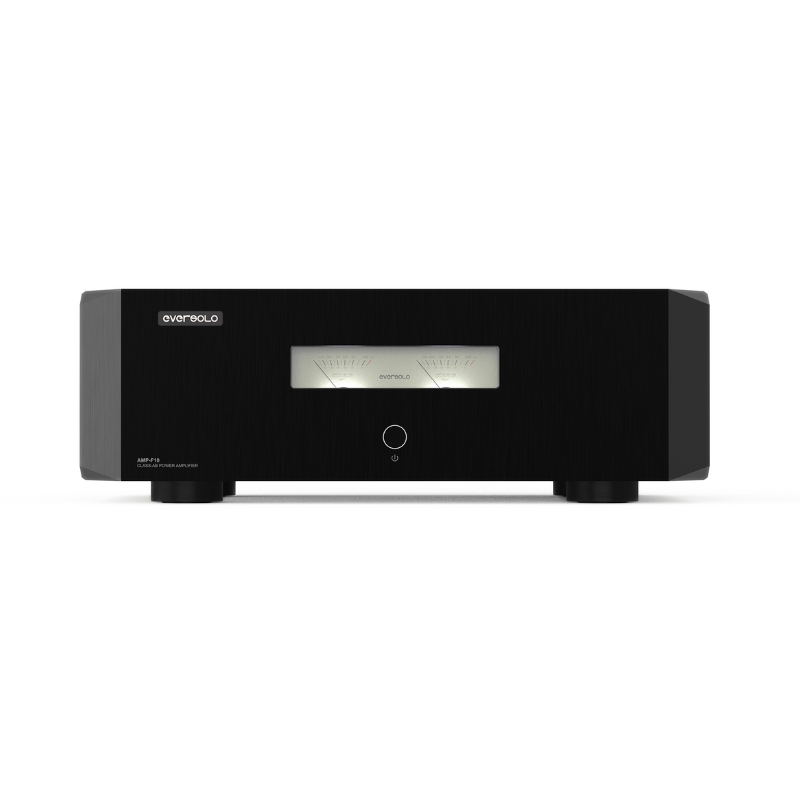

EverSolo AMP-F10 – 2 Channel Stereo Power Amplifier (Each)

Robust Output Authentic Experience
The Eversolo AMP-F10 delivers up to 950W in bridged mode and 320W per channel at 4 ohms, ensuring powerful performance across all volume levels. Whether you’re enjoying stereo sound at home or experiencing the electrifying atmosphere of live music in a large space, the AMP-F10 delivers impressive power that draws you into an unparalleled soundstage. *At 8 ohms, it can provide 200W of power per channel, and up to 650W in bridged mode. *At 4 ohms, it can provide 320W of power per channel, and up to 950W in bridged mode.

Faithful Reproduction Pure Sound Quality
With an ultra-low total harmonic distortion of 0.008%, the AMP-F10 faithfully reproduces music in its purest form. From clear highs to robust lows, every note is handled with precision, presenting an authentic and lifelike sound experience. You’ll feel the fine textures of instruments and the natural expression of vocals, as if you were right there in the performance.

Dynamic and Detailed Representation
The AMP-F10 boasts an excellent signal-to-noise ratio of 113dB, ensuring that musical details are preserved from the quietest passages to the most dynamic peaks. From the elegance of classical to the intensity of rock, you’ll capture every nuance with impressive clarity and depth, making every genre come alive.

Versatile and Flexible Connections
Whether your source device uses RCA or XLR, the AMP-F10 handles it effortlessly. Its diverse input options allow for seamless integration to various audio setups, perfectly adapting from Hi-Fi stereo systems to studio gear, delivering a convenient and smooth experience.

Advanced DC Filtering Circuit
The AMP-F10 employs an innovative DC filtering circuit between the main AC supply and audio circuit, effectively removing low-frequency DC interference. This design ensures that only clean AC power is delivered to the audio circuits, effectively enhancing the performance of the audio circuit while reducing the hum from the toroidal transformer.

Clear Sound Free of Interference
By eliminating DC interference from the AC supply, the AMP-F10’s overall performance is dramatically enhanced, delivering a pure audio experience.

High-Fidelity Audio Processing
The AMP-F10 is equipped with advanced dual differential amplifiers, which are tailored for low-level audio signals. Its symmetrical circuit design and negative feedback technology minimize distortion, ensuring high-fidelity and high linear audio output. This design not only expands dynamic range but also effectively suppresses common-mode noise(such as power and environmental interference), keeping the output sound broad and natural at any volume levels.

Powerful and Refined Bass
With a damping factor exceeding 600, the AMP-F10 ensures powerful, clear low-frequency performance. Whether delivering the intense impact of deep bass or capturing subtle low frequency details, it handles all effortlessly. From the punch of electronic music to the gentle whispers of jazz, it caters to a wide range of listening scenarios, empowering every note with emotion and passion.

Superior Sound Enduring Reliability
Designed with durability and stability in mind, the AMP-F10 features premium components and fine craftsmanship for long-term performance. Whether delivering intense volume or supporting extended playback, the AMP-F10 operates reliably, letting you enjoy the pleasures of music worry-free.

SPECIFICATIONS

Output power:
2x 320W @ 4 ohm
2x 200W @ 8 ohm
2x 450W @ 2 ohm

Bridged Mode:
1x 950W @ 4 ohm
1x 650W @ 8 ohm

THD+N
0.008%

SNR
200W @ 8Ω/1kHz
Gain 23dB : ≥ 113dB @A-wt
Gain 29dB : ≥ 110dB @A-wt

Class
AB

Transistors
5x MOSFET transistors (left channel)
5x MOSFET transistors (right channel)

Inputs
1x Single-ended RCA stereo input
1x Balanced XLR stereo input

Output
Speaker terminal output

Other connectors
Trigger in / out

Input sensitivity adjustment
23dB/29dB

Frequency response
10Hz-30kHz @ 8 ohm (±0.5dB)

Crosstalk
200W @ 8ohm/1kHz ≤ -95dB

Input impedance
RCA : 10KΩ
XLR : 10KΩ

Input sensitivity (200W @ 8ohm/1kHz)
RCA input gain 23dB: 2.65V
RCA input gain 29dB: 1.3V
XLR 23dB input gain: 5.2V
XLR 29dB input gain: 2.4V

Damping factor
>600 @ 8ohm/1kHz

Dimensions (WHD):
430 x 147 x 310 mm

Weight:
18 kg
