Performance first
The original Delta series amplifiers won more than critical acclaim. Elite audio professionals use them to master music and movies that the whole world has enjoyed. Our newest amplifiers are even better. Objectively, pure technical measurements prove they deliver our highest performance ever. Subjectively, they simply blow audiences away.

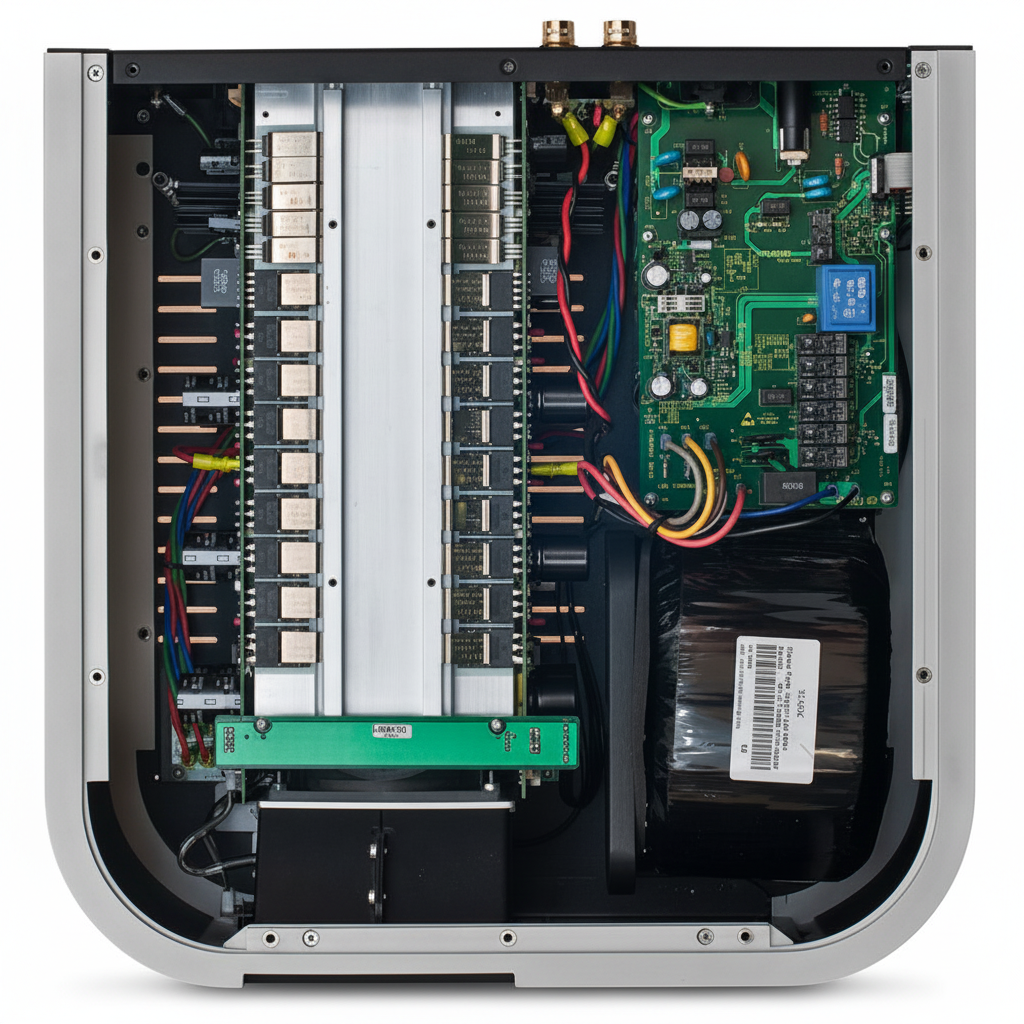

The Classé design team has created the ultimate environment to amplify an audio signal. The entire amplification process occurs on a single board, creating the most direct and transparent signal path conceivable. Our uniquely miniaturized driver stage is virtually noise free, so every nuance of the original signal reaches the output stage. Here, vast quantities of clean power are controlled with absolute precision. Suddenly, the world’s finest speakers sound even better.
Performance fast
There is a relationship between temperature and performance but it is widely misunderstood. Audiophiles say that optimal performance is obtained when an amplifier is “warmed up,” but what does this actually mean? When is it warm enough and when is it too warm?
The exposed heatsink fins found on conventional amplifiers are passive.They can’t help circuits reach their ideal temperature or keep them there throughout a listening session. They run at a temperature wholly defined by their environment and how loud they are playing. This can be far from ideal.
Heat management in Classé’s new Delta series amplifiers is provided by the ICTunnel™ (pronounced Icy Tunnel), a sensor- and microprocessor-controlled technology inspired by the heatsinks found in high-power laser and medical equipment. Mounted inside the unit, the ICTunnel™ actively regulates the amplifier temperature to ensure both optimum performance and reliability.
From room temperature, the amplifiers warm up fast. They reach their ideal temperature in less than fifteen minutes and remain there regardless of how hard they are driven. No conventional heatsink can do this.
In a Class by itself
Ground-breaking performance, prodigious power, sophisticated control and rock-steady reliability—Classé’s new Delta series is a giant leap in amplifier design. Thanks to exclusive ICTunnel™ and audio technologies, only Classé amplifiers can consistently deliver top performance and reliability in every installation.
____________
| Performance | Specification |
|---|---|
| Output Power (8Ω) | 600W RMS |
| Output Power (4Ω) | 1200W RMS |
| Frequency Response | 1Hz – 100kHz (-3dB) |
| Harmonic Distortion (Balanced) | <0.002% @ 1kHz |
| Harmonic Distortion (Single-Ended) | <0.004% @ 1kHz |
| Intermodulation Distortion (8Ω) | >100dB below fundamental |
| Intermodulation Distortion (4Ω) | >90dB below fundamental |
| Signal-to-Noise Ratio | -120dB (Peak Output into 8Ω, 22kHz bandwidth) |
| Voltage Gain | 29dB |
| Input Level at Clipping | 2.86V RMS |
| Peak Output Voltage (No Load) | 226V Peak-to-Peak / 80V RMS |
| Peak Output Voltage (8Ω) | 206V Peak-to-Peak / 73V RMS |
| Output Impedance | 0.03Ω @ 1kHz |
<br>
| Connectivity | Specification |
|---|---|
| Input Impedance | 50kΩ (Balanced / Single-Ended) |
<br>
| Power | Specification |
|---|---|
| Rated Power Consumption | 823W (1/8 Power into 8Ω) |
| Standby Power Consumption | <1W |
| Mains Voltage | Specified on Rear Panel |
<br>
| Physical | Specification |
|---|---|
| Width | 444mm (17.5") |
| Depth (Excluding Connectors) | 445mm (17.52") |
| Height | 223mm (8.78") |
| Net Weight | 39.9kg (88lb) |
| Gross Weight | 45.4kg (100lb) |
Notes
- Measurements are unweighted with a 500kHz measurement bandwidth, except for the signal-to-noise ratio, which is measured using a 22kHz bandwidth.
