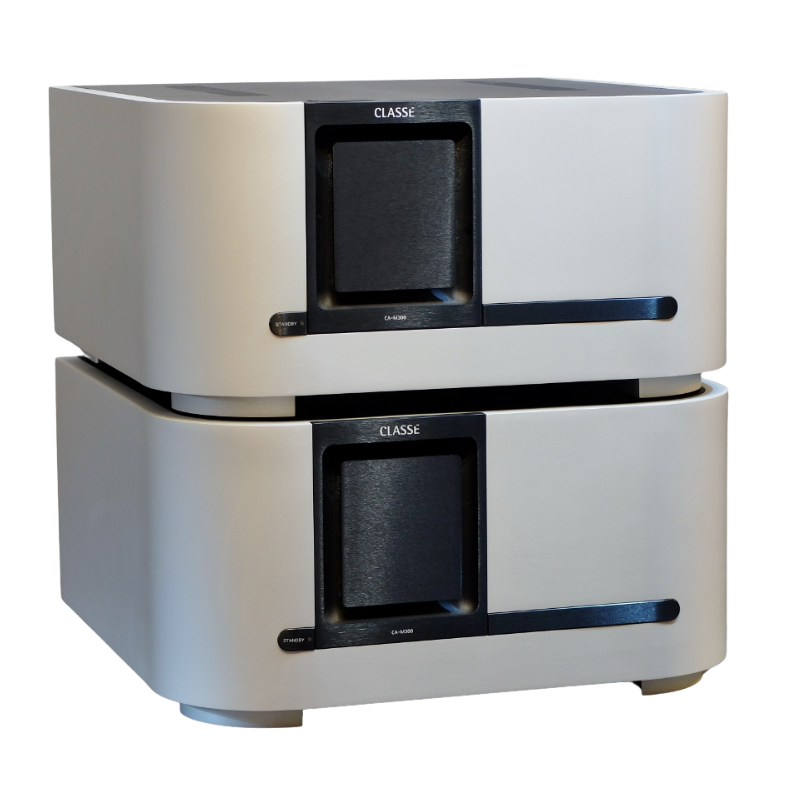

CA-M600 600W Monaural Amplifier
| Performance |
Specification |
| Output Power (8Ω) |
600W RMS |
| Output Power (4Ω) |
1200W RMS |
| Frequency Response |
1Hz – 100kHz (-3dB) |
| Harmonic Distortion (Balanced) |
<0.002% @ 1kHz |
| Harmonic Distortion (Single-Ended) |
<0.004% @ 1kHz |
| Intermodulation Distortion (8Ω) |
>100dB below fundamental |
| Intermodulation Distortion (4Ω) |
>90dB below fundamental |
| Signal-to-Noise Ratio |
-120dB (Peak Output into 8Ω, 22kHz bandwidth) |
| Voltage Gain |
29dB |
| Input Level at Clipping |
2.86V RMS |
| Peak Output Voltage (No Load) |
226V Peak-to-Peak / 80V RMS |
| Peak Output Voltage (8Ω) |
206V Peak-to-Peak / 73V RMS |
| Output Impedance |
0.03Ω @ 1kHz |
<br>
| Connectivity |
Specification |
| Input Impedance |
50kΩ (Balanced / Single-Ended) |
<br>
| Power |
Specification |
| Rated Power Consumption |
823W (1/8 Power into 8Ω) |
| Standby Power Consumption |
<1W |
| Mains Voltage |
Specified on Rear Panel |
<br>
| Physical |
Specification |
| Width |
444mm (17.5") |
| Depth (Excluding Connectors) |
445mm (17.52") |
| Height |
223mm (8.78") |
| Net Weight |
39.9kg (88lb) |
| Gross Weight |
45.4kg (100lb) |
Notes
- Measurements are unweighted with a 500kHz measurement bandwidth, except for the signal-to-noise ratio, which is measured using a 22kHz bandwidth.
___________

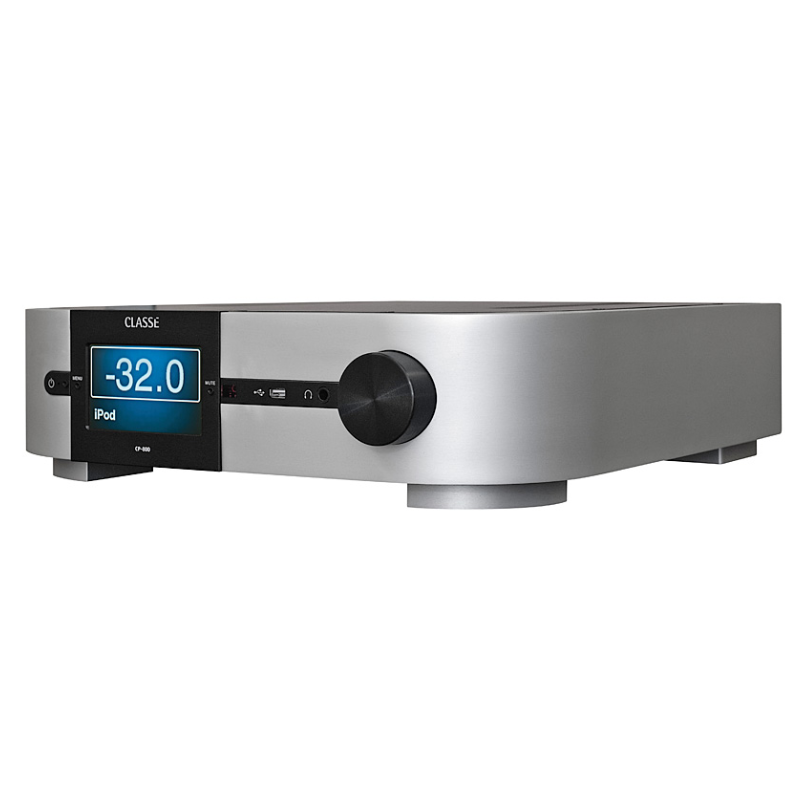

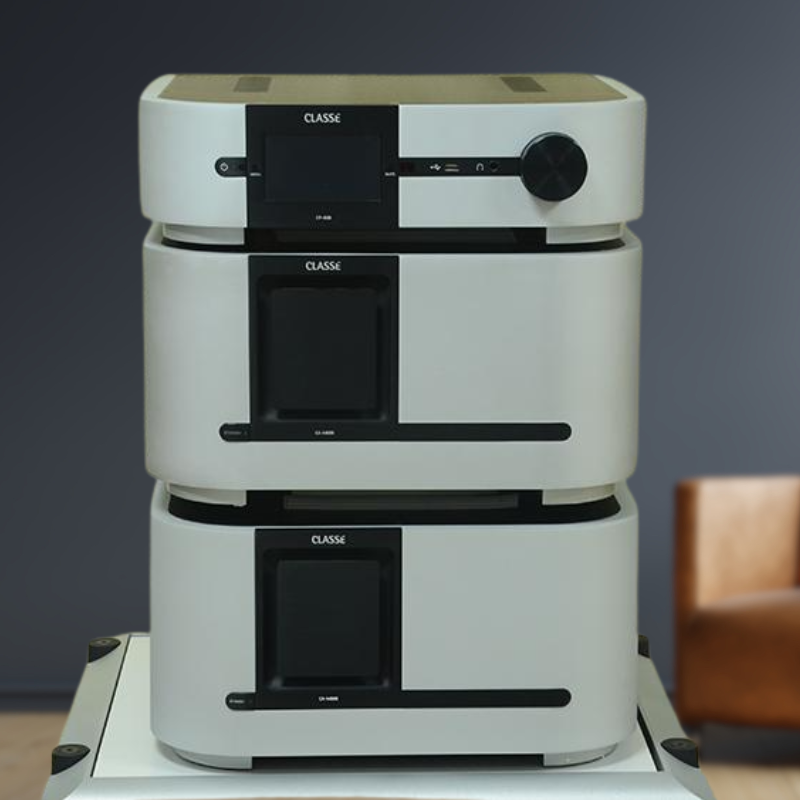

Classe CP-800 Stereo Preamplifier / Processor
Specifications
|
|
Frequency response
|
|
8 Hz - 200 kHz < 1 dB, stereo analog bypass
8 Hz - 20 kHz < 0.5 dB, all other sources
|
|
Channel Matching
|
|
better than 0.05 dB(left to right)
|
|
Distortion (THD+noise)
|
|
.0005%, digital source/bypassed analog source
.002%, processed analog source
|
|
Maximum input level
(single-ended)
|
|
2 Vrms (DSP), 4.5 Vrms (bypass)
|
|
Maximum input level
(balanced)
|
|
4 Vrms (DSP), 9 Vrms (bypass)
|
|
Maximum output level
(single-ended)
|
|
9 Vrmsd
|
|
Maximum output level
(balanced)
|
|
18 Vrms
|
|
Gain Range
|
|
-100 dB to +14 dB
|
|
Input impedance
|
|
50 kΩ (balanced)
100 kΩ (single-ended)
|
|
Output impedance
(main output)
|
|
300 Ω (balanced),
100 Ω (single-ended)
|
|
Signal-to-noise ratio
|
|
104 dB, bypassed analog source (ref. Bal. 4 Vrms input,
101 dB, processed analog source unweighted)
105 dB, digital source (ref. full-scale input, unweighted)
|
|
Channel separation
|
|
better than 100 dB
|
|
Crosstalk
|
|
better than -130 dB @ 1 kHz(any input to any output)
|
|
Standby power
consumption
|
|
<1 W
|
|
Rated power
consumption
|
|
53 W
|
|
Mains Voltage
|
|
90-264 V, 50/60 Hz
|
|
Overall dimensions
|
|
Width: 17.5” (445 mm)
Depth: 17.5” (445 mm) (excluding connectors)
Height: 4.78” (121 mm)
|
|
Net weight
|
|
23 lbs (10.43 kg)
|
|
Shipping weight
|
|
33 lbs (15 kg)
|
|
Made for
iPod touch (5th generation) iPod nano (7th generation)
iPod touch (4th generation) iPod nano (6th generation)
iPod touch (3rd generation) iPod nano (5th generation)
iPod touch (2nd generation) iPod nano (4th generation)
iPod touch (1st generation) iPod nano (3rd generation)
iPod classic iPod nano (2nd generation)
Made for
iPhone 5 iPhone 3GS
iPhone 4S iPhone 3G
iPhone 4 iPhone
Made for
iPad (4th generation) iPad 2
iPad (3rd generation) iPad
iPad mini
Airplay
Airplay works with iPhone, iPod, and iPod touch with iOS 4.3.3 or later,
Mac with OS X Mountain Lion, and Mac and PC with iTunes 10.2.2 or later
|
