AL32 PROCESSING

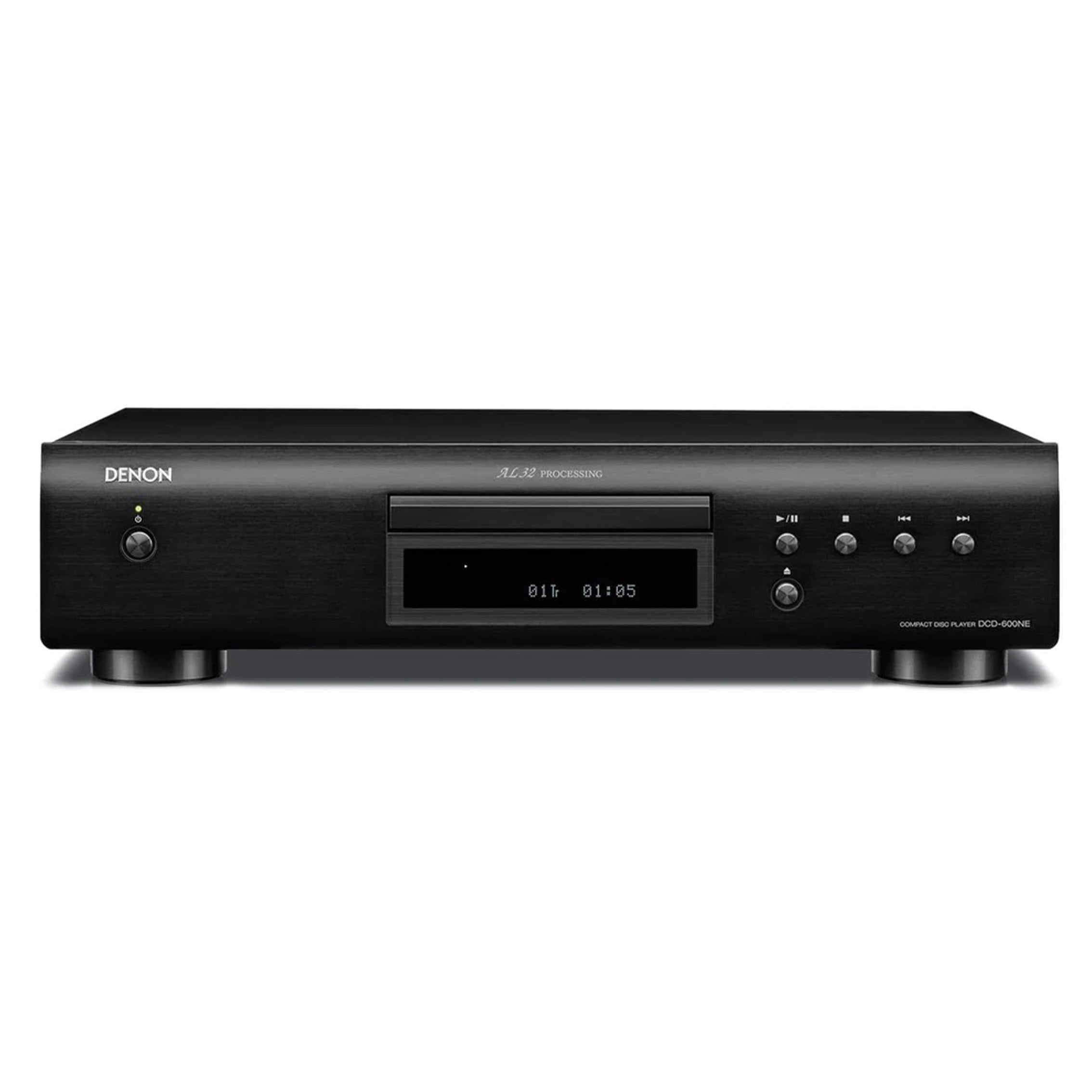

The DCD-600NE is equipped with AL32 Processing, a proprietary analog waveform reproduction technology from Denon. AL32 Processing utilizes data interpolation algorithms, which add in the points that should exist before and after large quantities of data, smoothing out the waveform and restoring information that was lost during the digital recording. The resulting playback is highly detailed, free of interferences, richly expressive in the lower range, and beautifully faithful to the original sound. Listen to songs as the artist intended.
ADVANCED CIRCUITRY WITH MINIMIZED SIGNAL PATHS
The circuit patterns in the DCD-600NE are thoughtfully engineered to make signal paths as short as possible. With layered circuit boards and shorter circuits, the interference between circuits and left and right channels is reduced, and the adverse influences on audio signals are minimized. As a result, the circuit paths in the DCD-600NE reproduce sound that’s clean, highly transparent and faithful to the original recording.
VIBRATION-RESISTANT DESIGN FOR PRISTINE SOUND
Vibration-resistant design reduces the adverse audio effects of heavy components within amplifiers so that sound quality meets Denon standards. The power transformer is fitted immediately above the insulators to prevent unwanted vibration. By placing the transformer close to the foot, the vibration surrounding the chassis is reduced, resulting in pristine sound. This design is referred to as Direct Mechanical Ground Construction. With a metal bracket connecting the CD mechanism and chassis to the high-density feet, unwanted resonance is further reduced to deliver pristine sound.
SPECIFICATIONS
Features
| Channels | 2.0 Ch |
| Frequency response | 2 Hz–20 kHz (sampling frequency: 44.1 kHz) |
| Dynamic Range | 101 dB |
| Signal-to-noise ratio | 112 dB |
| Total Harmonic Distortion | 0.0030% |
General
| Power Supply | AC 120V, 60kHz |
| Power Consumption in W | 13W |
| Power consumption (Stand-by) | 0.2W |
| Auto Power Off | No |
| Analog Output | 2ch |
| Digital Optical Output | x 1 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches |
17.09” x 10.75” x 4.21” |
| Carton Dimensions (Packaging) (W x D x H) in Inches) | 20.47” x 14.57” x 7.68” |
| Weight in LBS | 8.82 LBS |
| Weight in LBS (Packaging) | 11.47 LBS |

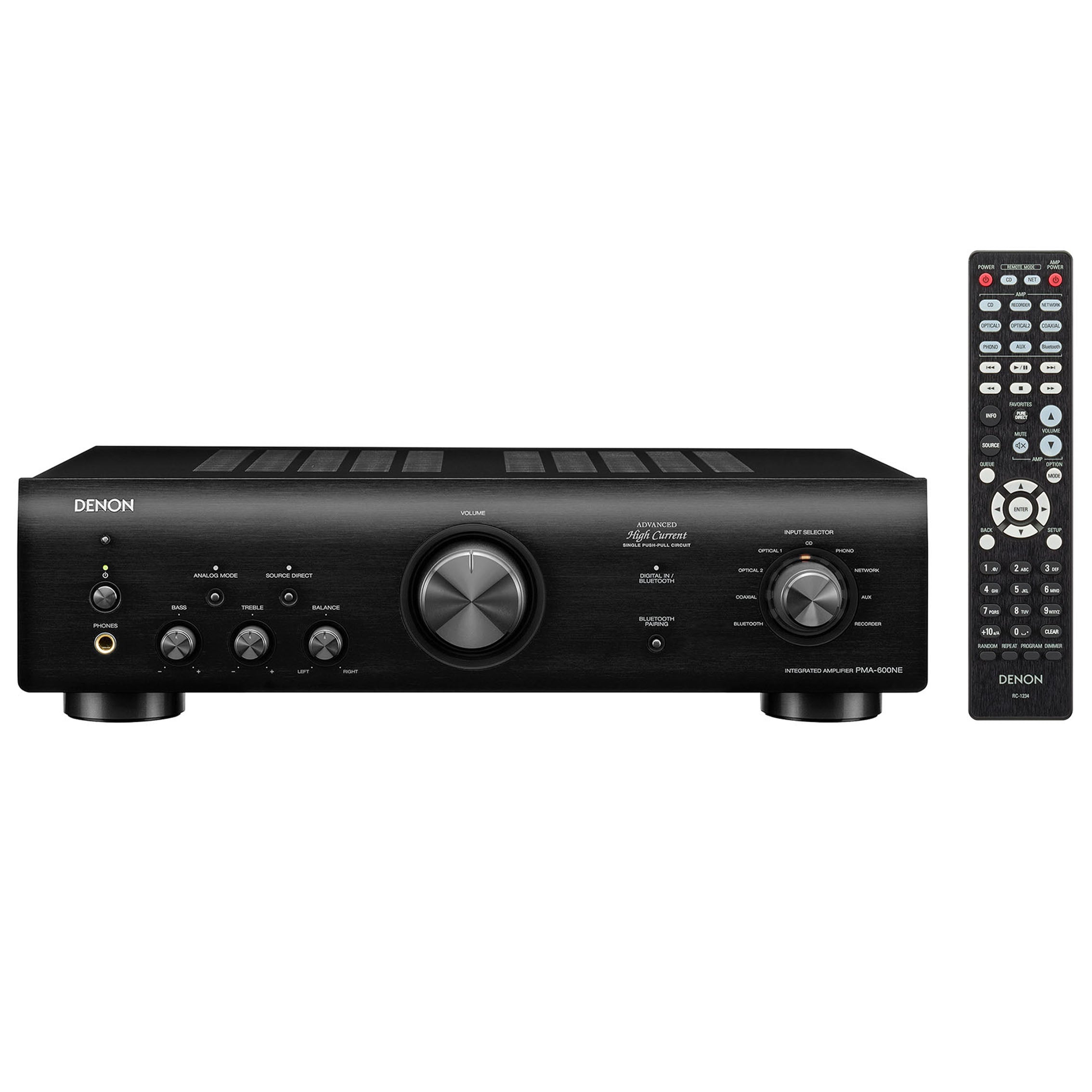

Denon PMA-600NE 90W Stereo Integrated Amplifier (Each)
Designed for the aspiring music enthusiast, the Denon PMA-600NE is the superior choice for those who want to build their first 2-channel Hi-Fi system. The PMA-600NE allows for the most vivid and emotional reproduction of vinyl and hi-res audio with digital inputs and a built-in phono equalizer. Listen to your favorite music via Bluetooth as well for seamless streaming of nearly unlimited songs. From deep bass to detailed highs, enjoy your favorite high-resolution audio content with the 192kHz/24bit D/A converter. At 70 Watts (4ohm, 1kHz, THD: 0.7%) per channel, the PMA-600NE supplies enough power to drive your speakers for optimal sound. Connect the PMA-600NE to your favorite components with the two Optical and one Coaxial digital input. Powered by the Denon Advanced High Current (AHC) single-push-pull circuit power amplifier, the PMA-600NE provides exceptional sound quality that balances high power with delicate, musical details.
Features
- 70 Watts per channel power output (4ohm, 1kHz, THD: 0.7%): Get the maximum performance to drive your favorite loudspeakers
- Advanced High Current (AHC) single-push-pull circuit power amplifier: Wide bandwidth captures everything from deep bass to detailed highs
- Bluetooth support: With an antenna inside the unit, actively pair your smart phone to the PMA-600NE via Bluetooth to stream music
- Includes two digital Optical inputs for your TV or digital device: The PMA-600NE automatically detects the signal input from your TV and outputs elevated sound
- Built-in 192kHz/24bit D/A converter: Experience high-resolution audio playback to enjoy the highest quality of your favorite songs
- Impeccable sound engineering with carefully selected and rigorously tested Hi-Fi parts: Enjoy the exceptional sound that is the signature of all Denon amplifiers
- Analog Mode for pure audio reproduction: Divided circuitry includes a Bluetooth OFF option to help remove influence from any digital interruptions
- High performance MM phono equalizer amp: Connect your turntable and enjoy vinyl tracks
- Deeper bass: Enjoy rich, evenly dispersed bass with a subwoofer output
- Vibration-resistant design with Direct Mechanical Ground Construction: Listen to music with pristine detail and quality that’s unaffected by the environment
- Thoughtful amplifier design with short signal paths: Hear pure, superior sound with a condensed relay for Source Direct function from the shortest signal path
- Main transformer with separate coiled wires for audio/control circuits: Eliminates interference to optimize sound quality
- Micro-processor with Stop Mode: Protects audio signal from external noise during playback
- Denon-proprietary Signal Level Divided Construction (SLDC) chassis: Amplify and transmit delicate musical signals to the speakers to capture the nuance of the music
- Engineered with a more than 100-year Denon legacy in audio excellence: Trust this high-quality and durable system to deliver the ultimate audio experience
SPECIFICATIONS
| Configuration | Stereo |
| Power Output | 2 x 45 W @ 8 Ohms, 20 Hz to 20 kHz, 0.07% THD 2 x 70 W @ 4 Ohms, 1 kHz, 0.7% THD |
| Speaker Impedance | 4 to 16 Ohms |
| Total Harmonic Distortion | 0.01% (Rated Output -3 dB, 8 Ohms, 1 kHz) |
| Frequency Response | Not Specified by Manufacturer |
| DAC | 192 kHz / 24-Bit |
| Wireless | Bluetooth In |
| Analog Inputs | 4 x Stereo RCA 1 x Stereo RCA Phono (MM) with Ground Screw |
| Digital Inputs | 2 x Optical TOSLINK 1 x Digital Coaxial |
| Outputs | 1 x Stereo RCA 1 x 1/4″ / 6.35 mm Headphone (Front) |
| Speaker Connectors | 2 x Binding Post Pairs |
| Subwoofer Output | 1 x RCA Pre-Out |
| Other Connections | 1 x 1/8″ / 3.5 mm IR In 1 x 1/8″ / 3.5 mm IR Out |
| Input Sensitivity | Phono MM: 2.5 mV / 47 kOhms RCA: 100 mV Optical, Digital Coaxial: 110 mV / 30 kOhms |
| S/N Ratio | 105 dB |
| Power Requirements | 120 VAC, 60 Hz |
| Power Consumption (Active) | 185 W |
| Dimensions (W x H x D) | 17.1 x 4.76 x 12.1″ / 43.43 x 12.09 x 30.73 cm |
| Weight | 15 lb / 6.8 kg |
