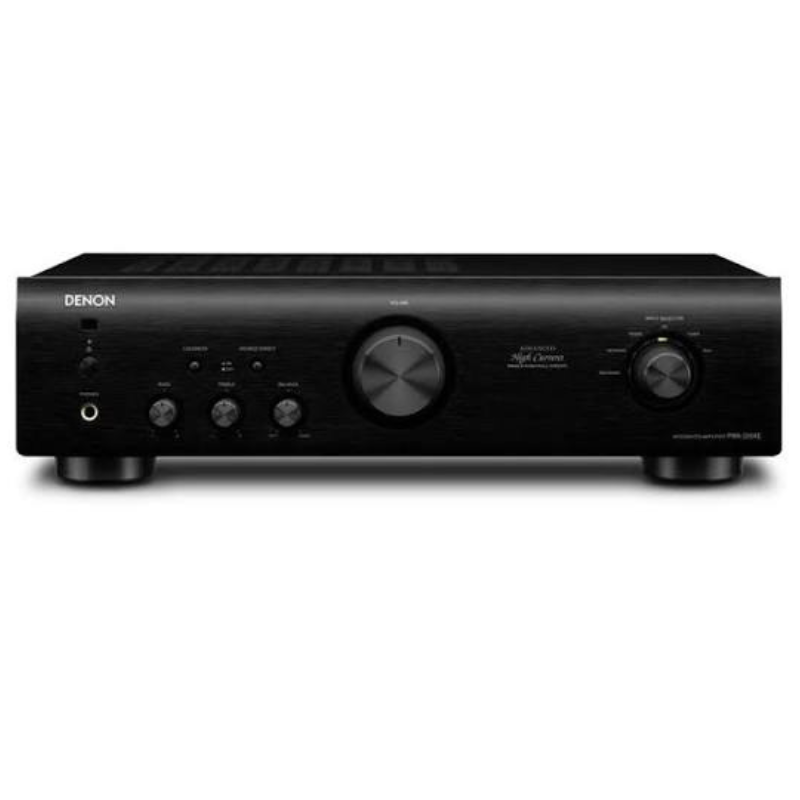

The Denon PMA-520AE is a high-performance integrated stereo amplifier that combines exceptional audio quality with elegant simplicity. Engineered using technologies inherited from Denon's higher-end amplifiers, it delivers a rich, natural, and highly detailed listening experience whether you're enjoying vinyl records, CDs, or other analogue audio sources.

At its heart is Denon's Advanced High Current (HC) Single Push-Pull Circuit, providing clean, powerful amplification with excellent control over your speakers. The high-capacity power supply, premium components, and vibration-resistant Direct Mechanical Ground Construction help preserve musical accuracy and reduce unwanted noise for a more engaging listening experience.

Vinyl enthusiasts will appreciate the built-in Moving Magnet (MM) phono stage, allowing direct connection of a turntable without requiring an external phono preamp. Source Direct mode bypasses tone controls for the purest possible signal path, while bass, treble, balance, and loudness controls offer flexibility when desired.

With multiple analogue inputs, a dedicated recording output, high-quality speaker terminals, a headphone output, and an included remote control compatible with selected Denon CD and network players, the PMA-520AE offers everything needed for an enjoyable and versatile stereo system. Its elegant aluminium front panel complements any modern hi-fi setup while maintaining Denon's renowned build quality

Specifications

General

• Type: Stereo Integrated Amplifier
• Amplifier Class: Class AB
• Colour Options: Black / Premium Silver
• Remote Control: Included
• Aluminium Front Panel
• Auto Standby Function
• Low Standby Power Consumption

Amplifier Section

• Power Output (8Ω): 45W + 45W (20Hz–20kHz, THD 0.07%)
• Power Output (4Ω): 70W + 70W (1kHz, THD 0.7%)
• Frequency Response: 20Hz – 20kHz
• Total Harmonic Distortion (THD): 0.02% (1kHz, 8Ω)
• Speaker Impedance: 4Ω – 16Ω
• Advanced HC Single Push-Pull Circuit
• High-Speed High-Capacity Power Supply
• Direct Mechanical Ground Construction
• Source Direct Mode

Preamplifier

• Built-in MM Phono Stage
• Input Sensitivity:
  • Phono (MM): 2.5mV / 47kΩ
  • Line: 100mV / 30kΩ (Source Direct Off)
  • Line: 100mV / 16kΩ (Source Direct On)
• Signal-to-Noise Ratio:
  • Phono (MM): 84dB
  • Line: 105dB
• RIAA Accuracy: ±0.5dB (20Hz–20kHz)

Tone Controls

• Bass: ±8dB (100Hz)
• Treble: ±8dB (10kHz)
• Loudness Control
• Balance Control

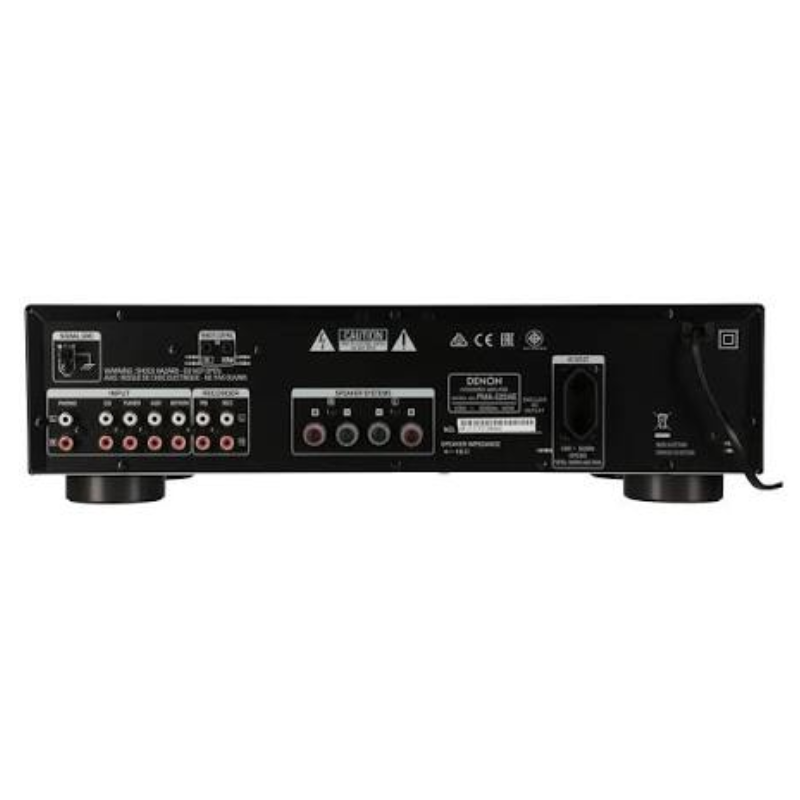

Inputs

• 1 × Phono (MM)
• 1 × CD
• 1 × Tuner
• 1 × Network
• 1 × Line
• 1 × Recorder Playback

Outputs

• 1 × Recorder Output (REC)
• 1 × Headphone Output
• Speaker Outputs
• 1 × Switched AC Outlet (region dependent)

Power

• Power Consumption: 185W
• Standby Power Consumption: 0.3W

Dimensions & Weight

• Dimensions (W × H × D): 434 × 121 × 308 mm
• Weight: 6.8 kg
