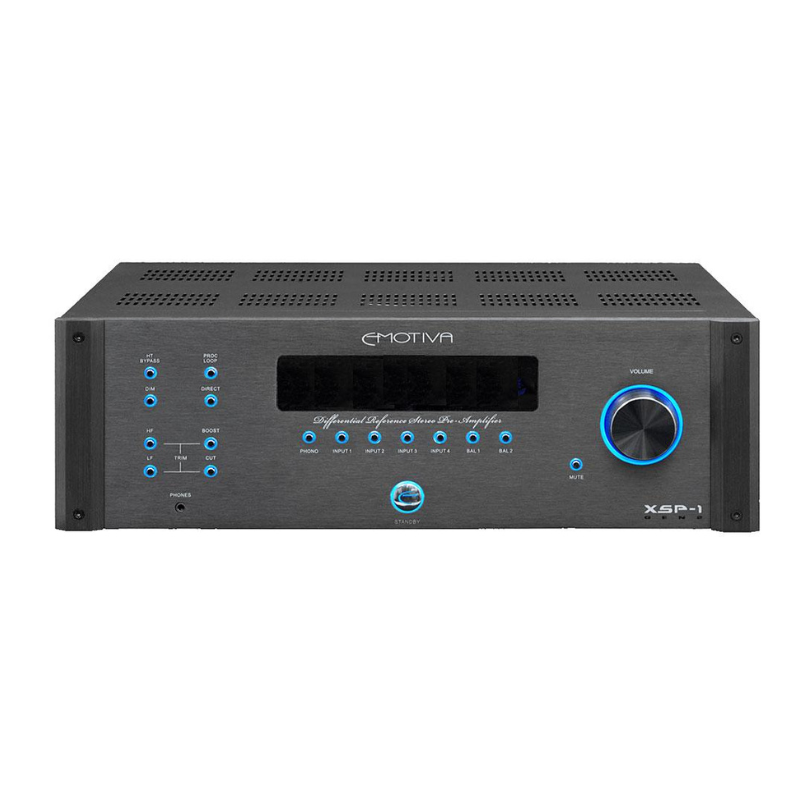

The Emotiva XSP-1 is a high-performance stereo preamplifier engineered for pure analog audio enthusiasts. Built around a fully differential signal path from input to output, the XSP-1 combines audiophile-grade sound quality with advanced control and connectivity features, making it an ideal centerpiece for premium stereo systems.
Designed with precision analog circuitry, the XSP-1 uses relay-switched inputs with silver-clad contacts and a digitally controlled analog resistor ladder volume system for accurate channel matching and ultra-low distortion. Its fully balanced architecture ensures exceptional noise rejection, superior detail retrieval, and a transparent listening experience.
The built-in phono stage supports both Moving Magnet (MM) and Moving Coil (MC) cartridges, with selectable loading options for optimal vinyl playback performance. Analog bass management with adjustable crossover controls allows seamless subwoofer integration while maintaining signal purity.
Additional features include multiple balanced and unbalanced inputs, home theater bypass, processor loop functionality, trigger inputs and outputs, tone adjustments, and a dedicated headphone amplifier. Whether paired with high-end power amplifiers or integrated into a reference-level audio system, the XSP-1 delivers remarkable clarity, imaging, and musical accuracy.
Praised by audiophile communities for its “natural” and “uncolored” sound signature, the XSP-1 remains a sought-after stereo preamp for serious music listeners
Specifications
General
- Type: Fully Differential Analog Stereo Preamplifier
- Signal Path: Fully balanced analog design
- Volume Control: Digitally controlled analog resistor ladder network
- Display: Front panel VFD display
- Remote Control: Included
- Home Theater Bypass: Yes
- Processor Loop: Yes
- Bass Management: Analog adjustable high-pass and low-pass crossover
Inputs
- 4 x Stereo RCA Line Inputs
- 2 x Stereo XLR Balanced Inputs
- 1 x MM/MC Phono Input
- 1 x Home Theater Bypass Input
- Trigger Input/Output
- IR Input/Output
Outputs
- Balanced XLR Outputs
- Unbalanced RCA Outputs
- Subwoofer Outputs
- Headphone Output
Phono Stage
- MM Gain: 40 dB
- MC Gain: 60 dB
- MC Loading Options: 47Ω, 100Ω, 470Ω, 1kΩ
Audio Performance
- Frequency Response: 20Hz – 20kHz (±0.02 dB balanced)
- THD + Noise: < 0.004%
- Signal-to-Noise Ratio:
-
117 dB (balanced)
-
113 dB (unbalanced)
-
- Crosstalk: <102 dB
Bass Management
- Adjustable High-Pass Filter: 50Hz – 250Hz
- Adjustable Low-Pass Filter: 50Hz – 250Hz
- Crossover Slope: 12 dB/octave
Tone Controls
- HF Trim: ±3 dB
- LF Trim: ±3 dB
Dimensions & Weight
- Dimensions: 430 x 165 x 170 mm
- Weight: 10 kg
Power
- Power Consumption: 32W max
- Standby Consumption: <1W
- Universal Voltage Operation: 115V / 230V auto switching
