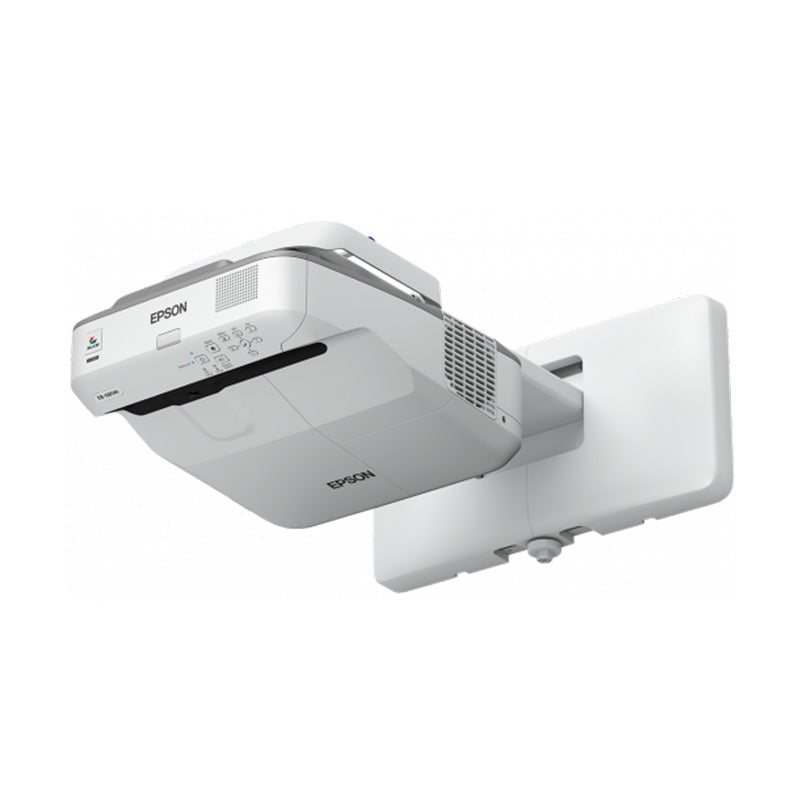

The ultimate ultra short-throw presentation display for BYOD classrooms.
Take classroom collaboration to another level with the PowerLite 685W widescreen ultra short-throw presentation display. Designed for today’s BYOD classroom, this WXGA performer displays 100" images from just 11" away for optimal visibility. Offering high Color Brightness*, Epson® 3LCD projectors and displays ensure bright, vivid images. Delivering 3,500 lumens of color and white brightness2, the 685W ensures stimulating presentations. It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks — up to four at once with Moderator software3. Plus, its lamp lasts up to 10,000 hours in ECO Mode4.
- High Color Brightness1, and reliable performance — 3LCD, 3-chip technology
- Bright display — 3,500 lumens color/white brightness2
- Amazing, widescreen images — native WXGA resolution (1280 x 800) and 16:10 format
- Long-life lamp — lasts up to 10,000 hours in ECO Mode4
- Ultra short-throw presentation display — get a 100" image from as little as 11" away with virtually no shadow interference
- Simultaneously display and control multiple device screens — wirelessly share content from up to four devices3, including Chromebooks, with Moderator software
- Manage your display and send announcements remotely — easy network connectivity; software included
- Wireless support — display Chromebook, iOS®, Android™, Mac®, and PC screens5
- Versatile connectivity — 3x HDMI® supports multiple high-definition A/V devices, with MHL® support6
- Long-life lamp — lasts up to 10,000 hours in ECO Mode6
- Powerful sound to engage every student — built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode
What's in the box:
- PowerLite 685W projector
- 15' power cord
- Projector remote control
- Batteries
- User manual CD
- Projector software CDs
- Quick Setup Sheet
- Installation Guide
- Template sheet
- Projector feet
TECHNICAL SPECIFICATIONS
Specifications Projector:
Projection System: 3LCD, 3-chip technology
Lamp Life:
- ECO mode: Up to 10000 hours2
- Normal mode: Up to 5000 hours2
Throw Ratio Range: 0.28 - 0.37
Manual:
- Vertical: ±3 degrees
- Horizontal: ±3 degrees
Contrast Ratio: Up to 14,000:1
General:
Temperature: 41° to 104° F (5° C to 40° C)
Security:
- Kensington®-style lock provision
- Padlock and security cable hole
- Password protect function
Eco Features: RoHS compliant, Recyclable product8, Epson America, Inc. is a SmartWay® Transport Partner9
Power:
Power Supply Voltage: 100 – 240V ±10%, 50 / 60Hz
Power Consumption:
- ECO mode: 324 W
- Normal mode: 373 W
- Communication on: 2.2 W standby
- Communication off: 0.23 W standby
Projection Lens:
Type: Digital zoom / Manual focus
Connectivity Projector:
Standard Connectivity: Projector is Mac compatible via USB, DVI to HDMI or VGA adapter (not included), DP to HDMI or VGA (not included)
Remote Control:
Features: Source Search, HDMI/Video, LAN, Computer, USB, Power, Aspect, Color Mode, Volume, E-zoom, A/V Mute, Freeze, Menu, Page Up and Down, Home, Auto, Mouse Functions, User, Split Screen7
Projector Dimensions:
Including feet: 14.5" x 15.8" x 7.4" (W x D x H)
Projector Details:
Display Performance:
-
- NTSC: 480 lines
- PAL: 576 lines
(Depends on observation of the multi burst pattern)
Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:
- Wireless LAN Port 802.11(USB) b/g/n
- (Optional – module sold separately)
- Microphone: 1x
- RS-232c: 1x
- Video: 1x
- Audio in: 3x Mini Stereo
- USB (Type B): 1x
- USB (Type A Power): 1x
- Audio-out: 1x
- Monitor-out: 1x / Computer 2
- Computer: 2x
- Network: 1x RJ-45
- 3x HDMI (1x MHL)
Speaker: x 1 (16W)Fan Noise: 29 dB / 35 dB
