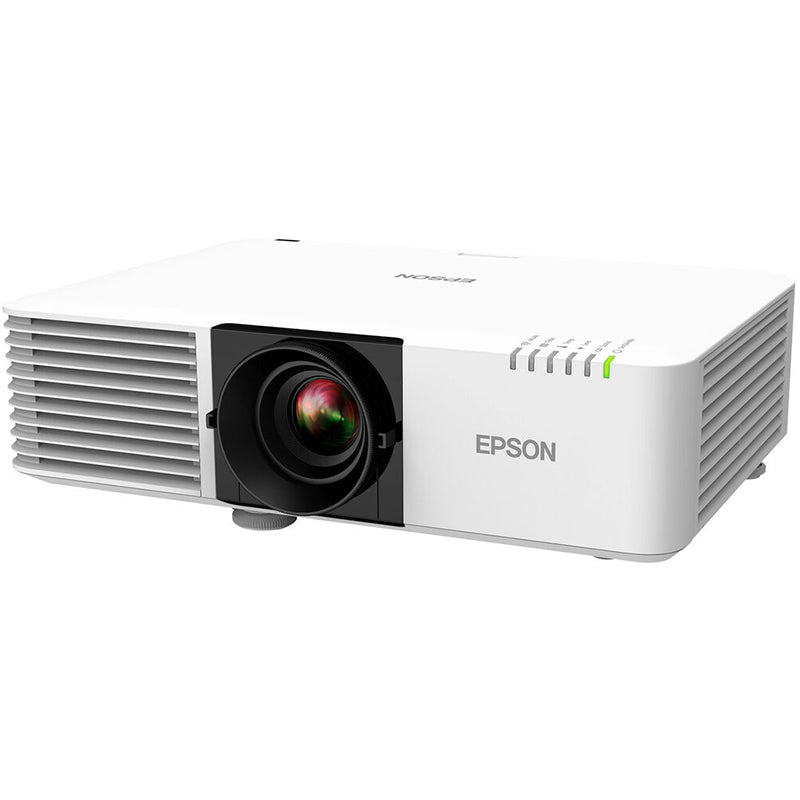

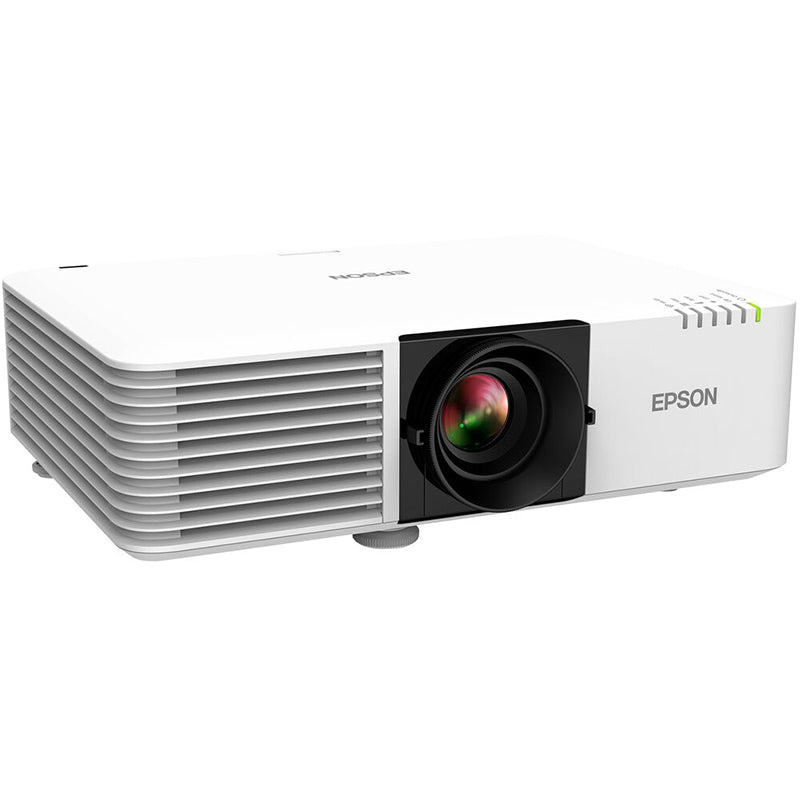

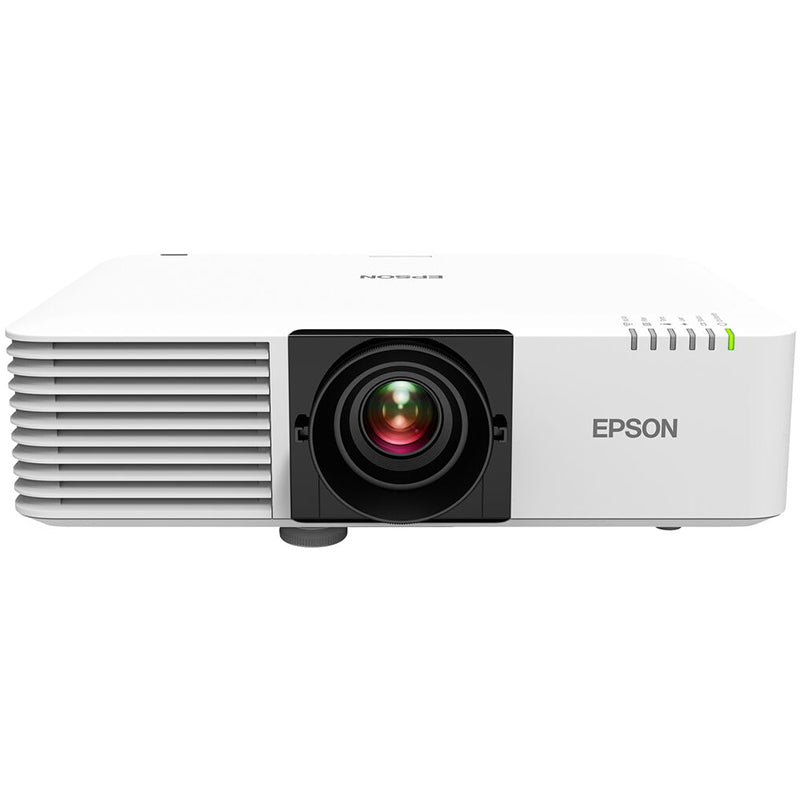

Deliver professional content with sharp images and bright colours to any audience. The EB-L520U is designed to project a scalable laser display up to 500 inches and offers a range of connectivity options to make content sharing an easy, seamless experience.
Featuring 5,200 lumens high-brightness capability, along with Full HD, WUXGA, 16:6 widescreen, support for 4K input, and detail enhancement technology, it gives users brighter, more vivid displays of up to 500”.
Providing more premium features than you would typically expect to find in this display class, the EB-L520U delivers edge-blending and geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists, and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.
Flexibility is another hallmark of this display solution - a split-screen function allows two or four images from different sources to be combined in one large display; wired or optional wireless1 with support for Miracast1 make connectivity simple and straightforward, and HDBaseT content can be shared and distributed without compromising on quality.
Thanks to the renowned market leading2 reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence, the EB-L520U comes with a standard 3-year warranty to provide lasting peace of mind.
Specifications
Projection System:
- Technology: 3LCD Technology
- LCD Panel: 0.76 inch with C2 Fine
Image:
- Color Light Output: 5,000 Lumen
- White Light Output: 5,000 Lumen
- Resolution: WUXGA (1920 x 1200)
- Aspect Ratio: 16:10
- Contrast Ratio: 2,500,000:1
- Colour Reproduction: Up to 1.07 billion colors
- HDR Support: HDR10, HLG
Optical:
- Light Source: Laser
-
Laser Light Source Life:
- 20,000 hours (Normal Mode)
- 30,000 hours (Eco Mode)
- Throw Ratio: 1.35 - 2.84:1
- Zoom: Motorized, Factor: 1 - 2.1
- Lens Shift: Motorized - Vertical ± 96.3 %, Horizontal ± 47.1 %
- Lens Position Memory: 10 positions
- Screen Size: 50 inches - 300 inches
- Projection Distance Wide/Tele: 3 m - 6.4 m (for a 100-inch screen)
- Projection Lens F Number: 2.0 - 2.9
- Projection Lens Focal Length: 22.5 mm - 46.7 mm
- Projection Lens Focus: Motorized
Connectivity:
-

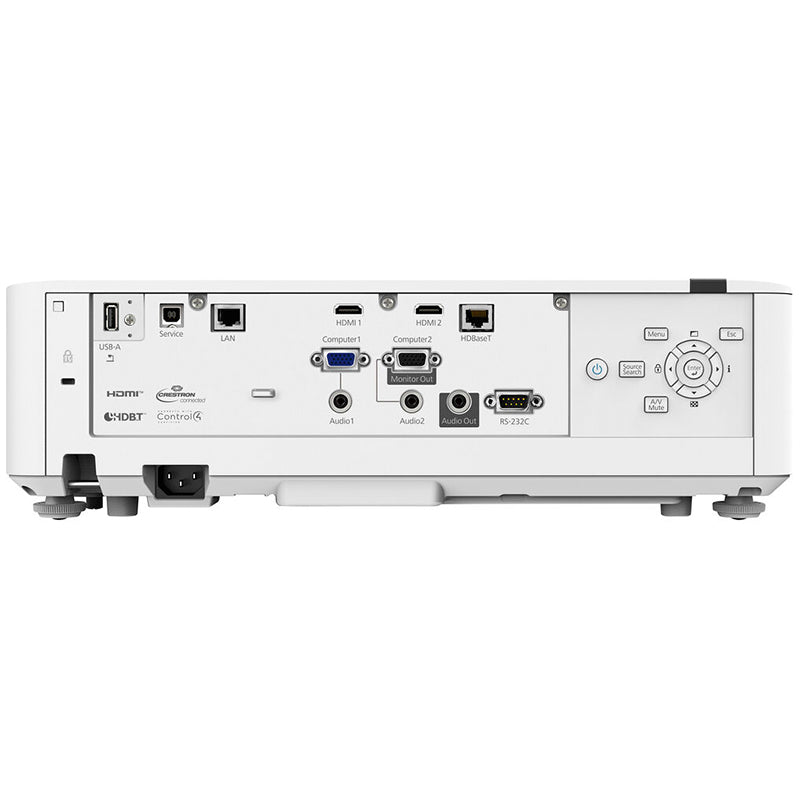

Interfaces:
- USB 2.0-A (2x)
- USB 2.0 Mini-B
- RS-232C
- Ethernet Interface (100 Base-TX / 10 Base-T)
- HDMI (HDCP 2.3) (2x)
- Trigger out
- Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features:
- Security: Kensington lock
-
Other Features:
- 4K enhancement
- A/V mute
- Digital zoom
- Frame interpolation
- Horizontal and vertical keystone correction
- Instant on/off
- Lens position memory
- Long light source life
- Super resolution
- Web Control
- iProjection App
General:
-
Power Consumption:
- Normal Mode: 295 Watt
- Eco Mode: 310 Watt
- Standby Mode: 0.5 Watt
- Heat Dissipation: 1,247.8 BTU/hour (max)
- Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
- Product Dimensions: 545 mm x 436 mm x 189 mm (WxDxH)
- Product Weight: 15.4 kg
-
Noise Level:
- Normal Mode: 30 dB (A)
- Economy Mode: 28 dB (A)
-
Supported Temperature:
- Operation: 5° C - 35° C
- Storage: -10° C - 60° C
-
Supported Humidity:
- Operation: 20% - 80%
- Storage: 10% - 90%
-
Included Software:
- Epson Creative Projection
- Epson Projector Config Tool
- Epson Projector Content Manager
- Epson Projector Management
-
Options:
- Air filter
- Camera module

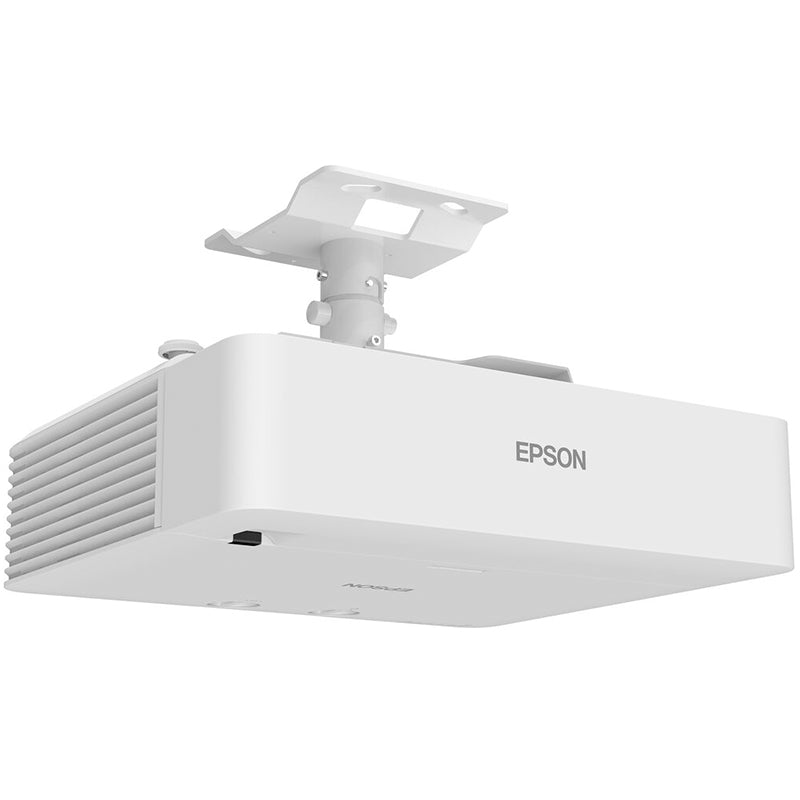

- Ceiling mount
- Wireless LAN unit
-
Room Type / Application:
- Boardroom
- Large Meeting Room / Auditorium
- Meeting room / Classroom
- Projection Mapping
- Rental / Staging
- Signage / Retail
- Visitor Attraction
- Positioning: Ceiling Mounted, Desktop, Flying Frame
