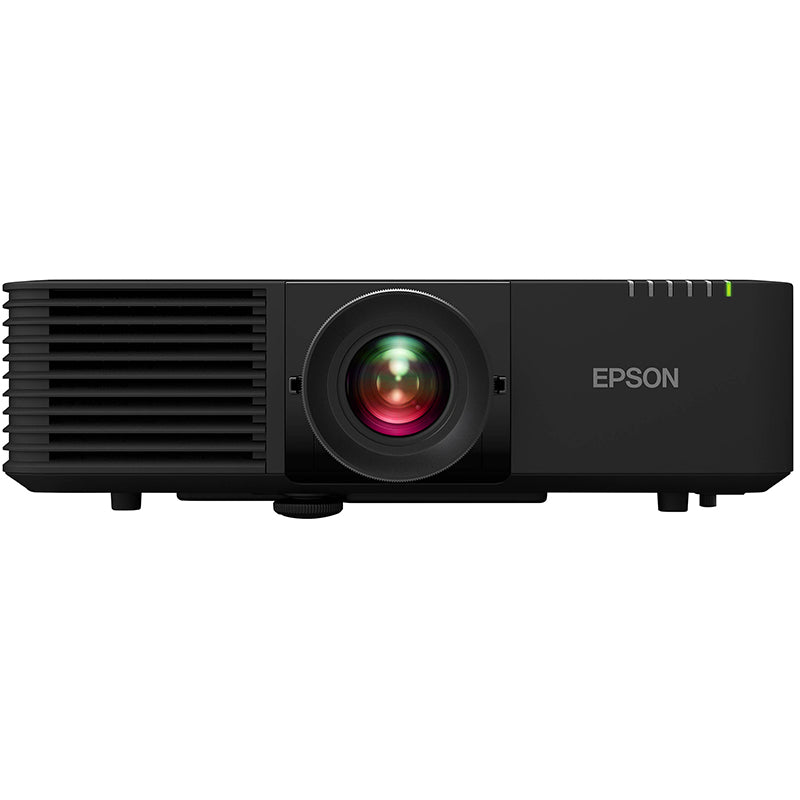

As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L735U delivers even more effective, practical and creative display applications across a number of different industries.
Bright, cost-effective display solutions
Providing bolder, brighter, more engaging, and impactful displays even in brightly lit environments, the EB-L735U offers impressive 7,000-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features 4K input support, detail enhancement technology, edge blending, and wide lens shift to fit challenging installation environments. The EB-L735U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.
Enhanced connectivity
This display solution offers many different ways to connect, show multiple sources simultaneously and present wirelessly. The EB-L735U comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player, and support for Epson’s ELPWP10 wireless presentation system.
Specifications
Projection System:
- Technology: 3LCD Technology
- LCD Panel: 0.76 inch with C2 Fine
Image:
- Color Light Output: 7,000 Lumen
- White Light Output: 7,000 Lumen
- Resolution: WUXGA (1920 x 1200)
- Aspect Ratio: 16:10
- Contrast Ratio: 2,500,000:1
- Colour Reproduction: Up to 1.07 billion colors
- HDR Support: HDR10, HLG
Optical:
- Light Source: Laser
-
Laser Light Source Life:
- 20,000 hours (Normal Mode)
- 30,000 hours (Eco Mode)
- Throw Ratio: 1.35 - 2.84:1
- Zoom: Motorized, Factor: 1 - 2.1
- Lens Shift: Motorized - Vertical ± 96.3 %, Horizontal ± 47.1 %
- Lens Position Memory: 10 positions
- Screen Size: 50 inches - 300 inches
- Projection Distance Wide/Tele: 3 m - 6.4 m (for a 100-inch screen)
- Projection Lens F Number: 2.0 - 2.9
- Projection Lens Focal Length: 22.5 mm - 46.7 mm
- Projection Lens Focus: Motorized
Connectivity:
-
Interfaces:
- USB 2.0-A (2x)
- USB 2.0 Mini-B
- RS-232C
- Ethernet Interface (100 Base-TX / 10 Base-T)
- HDMI (HDCP 2.3) (2x)
- Trigger out
- Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features:
- Security: Kensington lock
-
Other Features:
- 4K enhancement
- A/V mute
- Digital zoom
- Frame interpolation
- Horizontal and vertical keystone correction
- Instant on/off
- Lens position memory
- Long light source life
- Super resolution
- Web Control
- iProjection App
General:
-
Power Consumption:
- Normal Mode: 295 Watt
- Eco Mode: 310 Watt
- Standby Mode: 0.5 Watt
- Heat Dissipation: 1,247.8 BTU/hour (max)
- Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
- Product Dimensions: 545 mm x 436 mm x 189 mm (WxDxH)
- Product Weight: 15.4 kg
-
Noise Level:
- Normal Mode: 30 dB (A)
- Economy Mode: 28 dB (A)
-
Supported Temperature:
- Operation: 5° C - 35° C
- Storage: -10° C - 60° C
-
Supported Humidity:
- Operation: 20% - 80%
- Storage: 10% - 90%
-
Included Software:
- Epson Creative Projection
- Epson Projector Config Tool
- Epson Projector Content Manager
- Epson Projector Management
-
Options:
- Air filter
- Camera module
- Ceiling mount
- Wireless LAN unit
-
Room Type / Application:
- Boardroom
- Large Meeting Room / Auditorium
- Meeting room / Classroom
- Projection Mapping
- Rental / Staging
- Signage / Retail
- Visitor Attraction
- Positioning: Ceiling Mounted, Desktop, Flying Frame
- Colour: White
