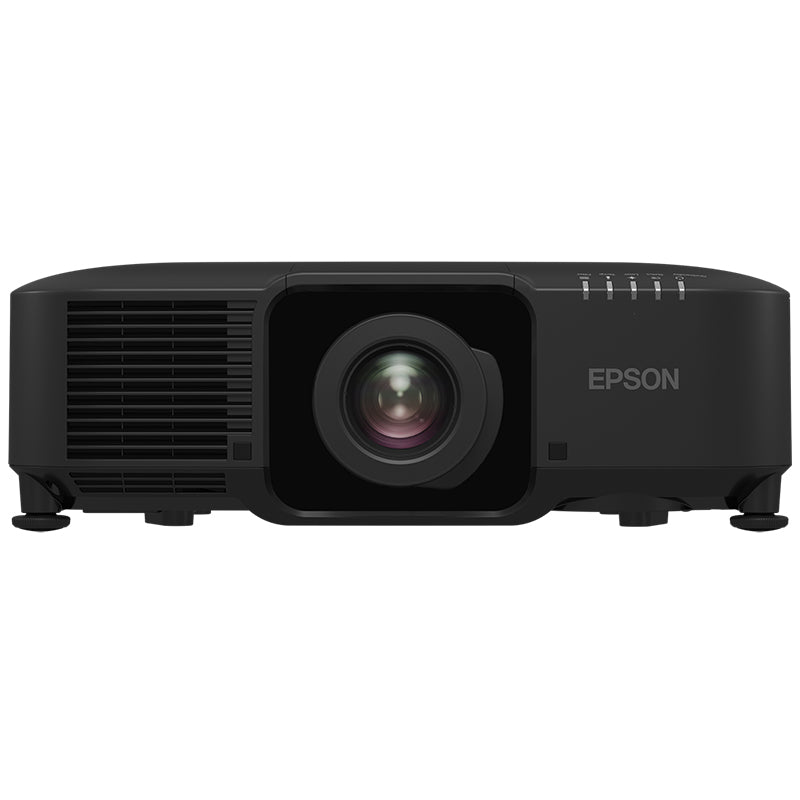

This highly versatile 10,000 lumens installation projector is sold as 'body only' and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU2010B offers WUXGA resolution with 4K enhancement, HDR, and advanced installation features.
Superior image quality
The 10,000 lumens EB-PU2010B projects clear whites, vivid details, deep blacks, defined shadows, and high contrast imagery.
Compact and lightweight

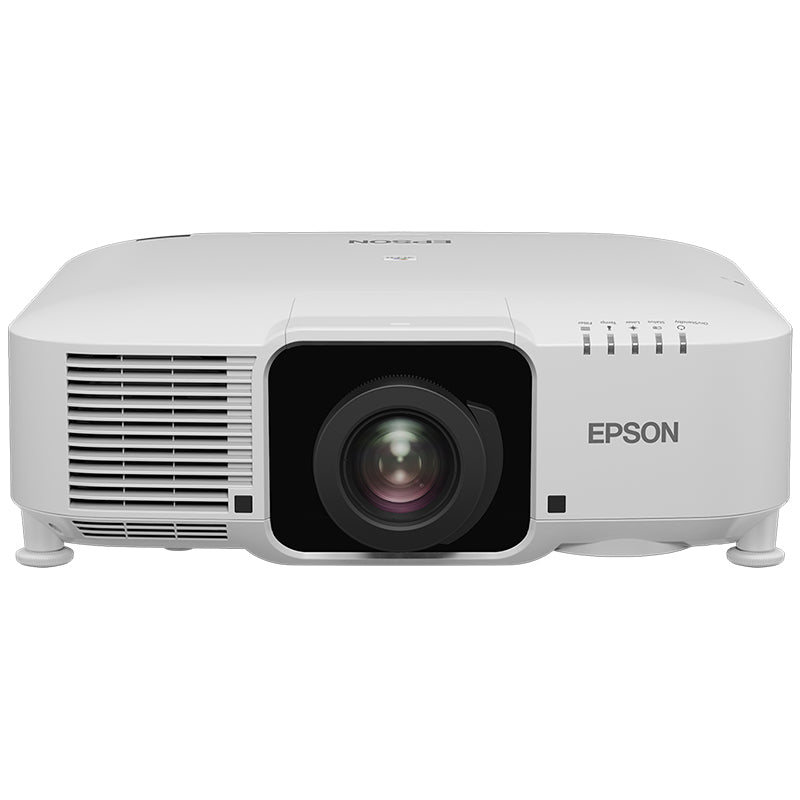

The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments. Also available in white.
Interchangeable lens support
The EB-PU2010B accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.
Designed for installation agility
Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking, and lens flexibility are key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU2010B features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool. Also includes SDI input and output connectivity.
Projection System:
- Technology: 3LCD Technology, RGB liquid crystal shutter
- LCD Panel: 0.76 inch with C2 Fine
Image:
-
Color Light Output:
- 10,000 Lumen
- 7,000 Lumen (economy)
-
White Light Output:
- 10,000 Lumen
- 7,000 Lumen (economy)
- Resolution: WUXGA
- Resolution Enhancement: 4K enhancement
- Aspect Ratio: 16:10
- Contrast Ratio: Over 5,000,000:1
- Native Contrast: 2,000:1
- Colour Reproduction: Up to 1.07 billion colours
- Colour Video Processing: 10 Bits
- HDR Support: HDR10, HLG
Optical:
- Light Source: Laser
-
Laser Light Source Life:
- 20,000 hours (High Durability)
- 30,000 hours (Eco Durability)
-
Keystone Correction:
- Manual Vertical: ± 45°
- Manual Horizontal: ± 30°
- Throw Ratio: 0.35 - 10.11:1
- Zoom: Motorized
- Lens Shift: Varies by lens
- Screen Size: Varies by lens
- Projection Distance Wide/Tele: Varies by lens
- Projection Lens F Number: Varies by lens
- Projection Lens Focal Length: Varies by lens
- Projection Lens Focus: Motorized
- Offset: Varies by lens
- Interchangeable Lens: Yes
- Standard Lens: Not included
Connectivity:
-
Interfaces:
- USB 2.0-A (2x)
- USB 2.0 Type B (Service Only)
- RS-232C
- Ethernet Interface (100 Base-TX / 10 Base-T)
- Wireless LAN IEEE 802.11a/b/g/n (optional)
- VGA in
- DVI in
- HDMI (HDCP 2.3)
- Near Field Communication (NFC)
- USB content playback
- Remote
- Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
-
Advanced Features:
- Security: Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
-
Other Features:
- 21:9 aspect ratio support
- 4K enhancement
- A/V mute
- Auto Power On
- Auto source search
- Direct Power on/off
- Edge Blending
- Horizontal and vertical keystone correction
- Lens position memory
- Long light source life
- OSD copy function
- Point correction
- Power on button
- Quick Corner
- Schedule Function
- Super resolution
- Web Control
- Web Remote
- iProjection App
- Video Color Modes: Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
- Projector Control: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery
General:
-
Power Consumption:
- Normal On-Mode: 295 Watt
- Normal Peak-Mode: 367 Watt
- Eco Peak-Mode: 310 Watt
- Energy Saving Standby: 0.5 Watt
- Heat Dissipation: 1,247.8 BTU/hour (max)
- Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
- Product Dimensions: 545 mm x 436 mm x 189 mm (WxDxH)
- Product Weight: 15.4 kg
-
Noise Level:
- Normal: 30 dB (A)
- Economy: 28 dB (A)
-
Supported Temperature:
- Storage: -10° C - 60° C
-
Supported Humidity:
- Operation: 20% - 80%
- Storage: 10% - 90%
-
Included Software:
- Epson Creative Projection
- Epson Projector Config Tool
- Epson Projector Content Manager
- Epson Projector Management
- Epson Projector Professional Tool
-
Options:
- Air filter
- Camera module
- Ceiling mount
- Wireless LAN unit
-
Room Type / Application:
- Boardroom
- Large Meeting Room / Auditorium
- Meeting room / Classroom
- Projection Mapping
- Rental / Staging
- Signage / Retail
- Visitor Attraction
- Positioning: Ceiling Mounted, Desktop, Flying Frame
- Warranty: 36 months Carry in
