Add movement and life to retail displays, hospitality events, visitor experiences, galleries, museums, corporate environments, or exhibitions, with a low visual noise projector that blends into any environment. The EV-110 brings lighting and projection together and perfectly combines high design, high image quality, and installation flexibility.
LightScene EV-110
Add movement and life to retail displays, hospitality events, visitor experiences, galleries, museums, corporate environments, or exhibitions, with a low visual noise projector that blends into any environment. The EV-110 brings lighting and projection together and perfectly combines high design, high image quality, and installation flexibility.
Minimalist design - maximum impact
The LightScene EV-110 allows users to unlock their creativity and project instantly appealing visuals, with sharp WXGA resolution and 2,200 lumens brightness. Thanks to its discreet design, it can be used where a traditional projector may stand out. A black version is also available.
Simple, flexible implementation

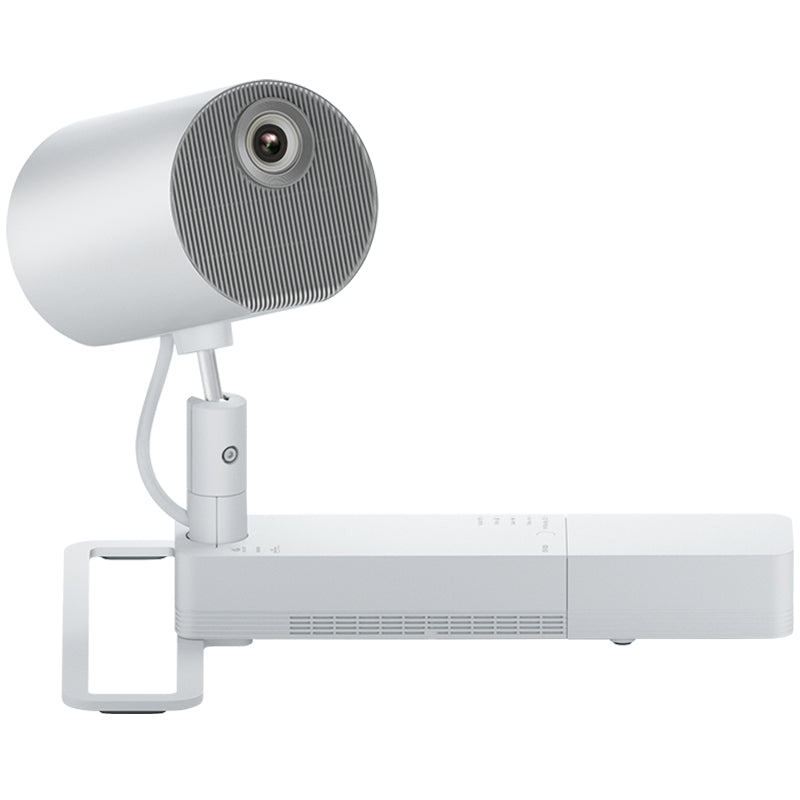

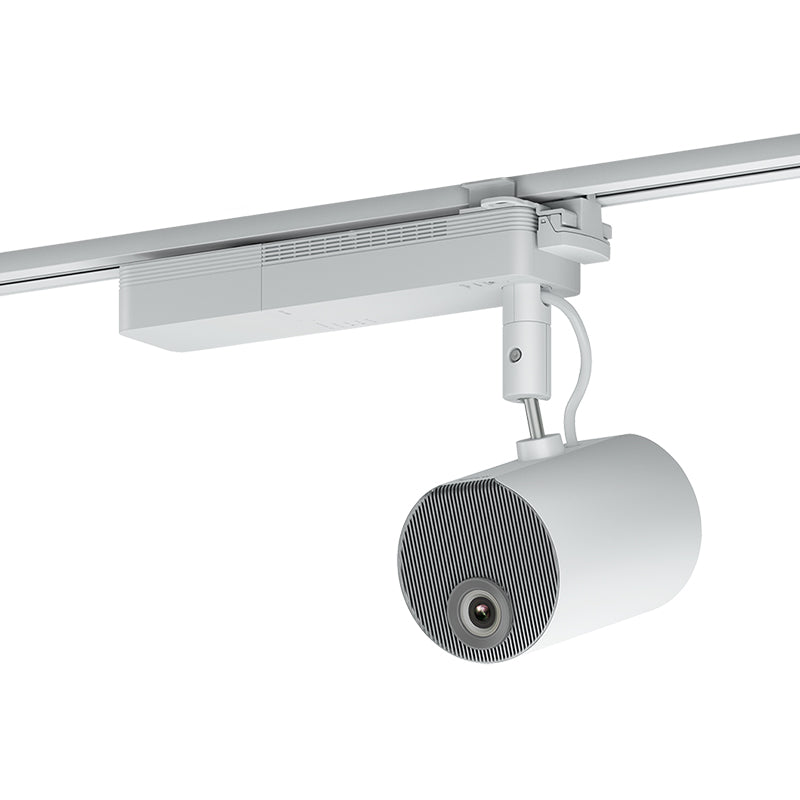

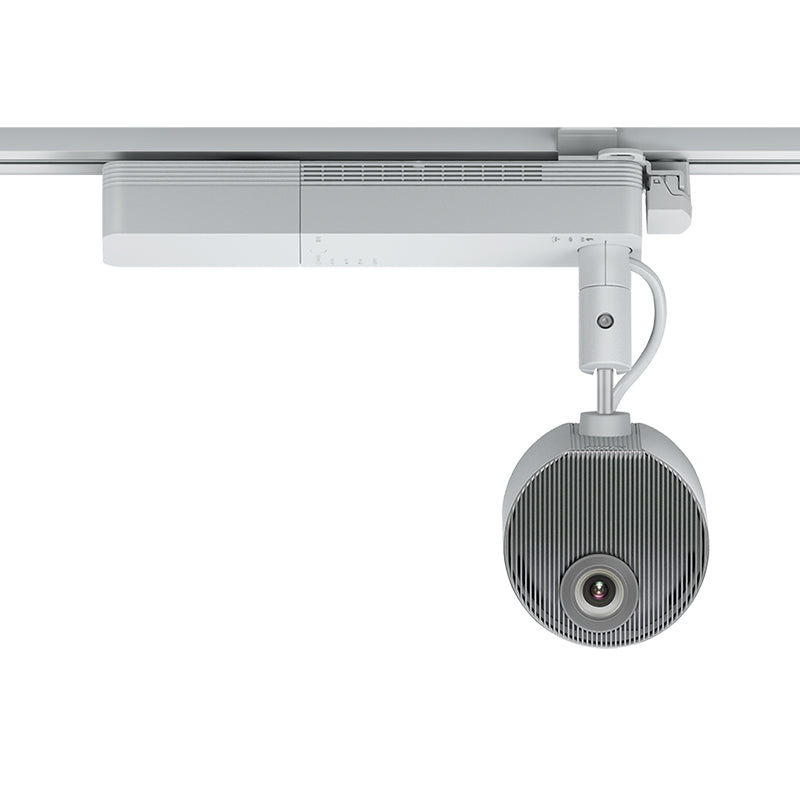

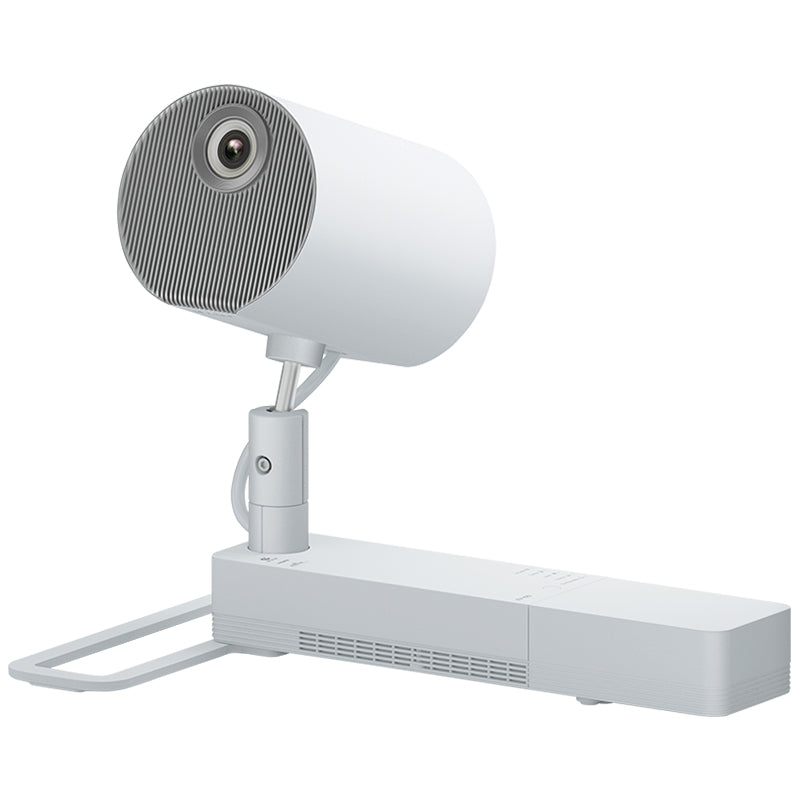

A lightweight, adaptable design means the EV-110 can be installed in a variety of ways, from a traditional ceiling mount to a freestanding floor mount, or attached to a lighting track, including recessed lighting tracks.
Signage-ready
Featuring a built-in media player with the wireless content upload, allowing playlists to be loaded onto an SD card and played directly from the projector1. The EV-110 also features HDMI connectivity for simple integration into content management systems without specialist installation.
Advanced installations made easy
The GPI function supports direct sensor connectivity for creating dynamic experiences that can adapt to situational changes without the need for costly external hardware. The EV-110 also uses advanced techniques such as edge blending to achieve stunning results in larger spaces that require multiple unit installations.
Fit and forget reliability
A five-year warranty, combined with Epson's reliable laser light source technology and sealed optical engine, means that the EV-110 does not require regular maintenance.
Specifications
Projection System:
- Technology: 3LCD Technology
- LCD Panel: 0.55 inch with C2 Fine
Image:
- Color Light Output: 2,000 Lumen
- White Light Output: 2,000 Lumen
- Resolution: WXGA (1280 x 800)
- Aspect Ratio: 16:10
- Contrast Ratio: 2,500:1
- Colour Reproduction: Up to 1.07 billion colors
Optical:
- Light Source: Laser
-
Laser Light Source Life:
- 20,000 hours (Normal Mode)
- 30,000 hours (Eco Mode)
- Throw Ratio: 1.27 - 1.85:1
- Zoom: Fixed
- Lens Shift: Fixed
- Screen Size: 30 inches - 120 inches
Connectivity:
-

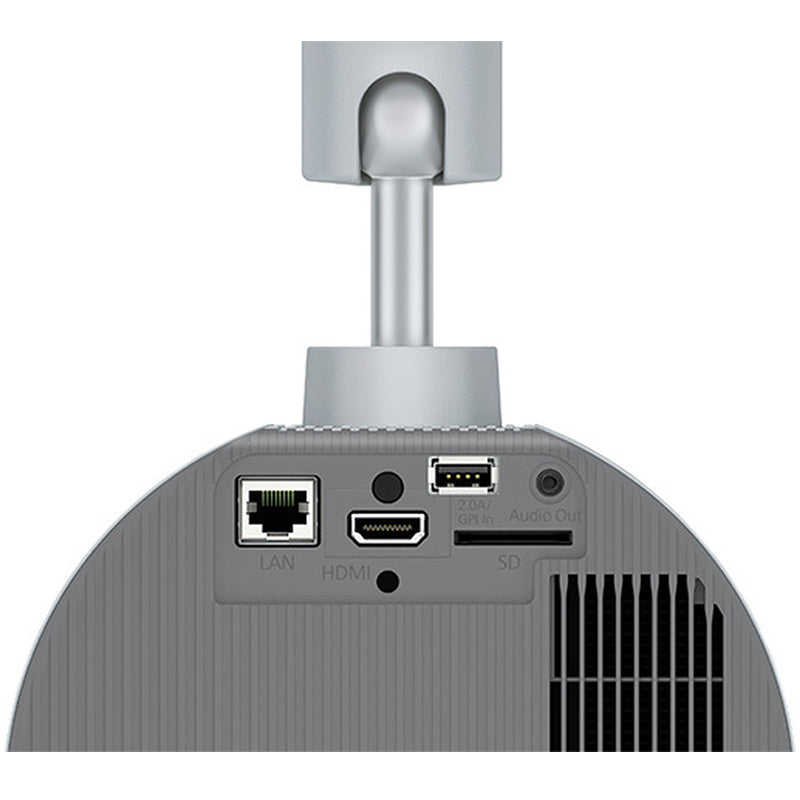

Interfaces:
- USB 2.0-A (2x)
- HDMI (HDCP 2.2)
- Ethernet Interface (100 Base-TX / 10 Base-T)
- Wireless LAN (optional)
- Audio out
- Network Protocol: HTTPS, IPv6, SNMP, PJLink
-
Advanced Features:
- Security: Kensington lock, Password protection
-
Other Features:
- 3D object projection
- Auto Power On/Off
- Direct Power On/Off
- Edge Blending
- Keystone Correction (manual)
- Web Control
- iProjection App
- Media Playback via USB
General:
-
Power Consumption:
- Normal Mode: 140 Watt
- Eco Mode: 105 Watt
- Standby Mode: 0.4 Watt
- Heat Dissipation: 477.6 BTU/hour (max)
- Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
- Product Dimensions: 211 mm x 235 mm x 55 mm (WxDxH)
- Product Weight: 2.8 kg
-
Noise Level:
- Normal Mode: 32 dB (A)
- Eco Mode: 26 dB (A)
-
Supported Temperature:
- Operation: 5° C - 35° C
- Storage: -10° C - 60° C
-
Supported Humidity:
- Operation: 20% - 80%
- Storage: 10% - 90%
-
Included Software:
- Epson Creative Projection
- Epson Projector Config Tool
- Epson Projector Content Manager
- Epson Projector Management
-
Options:
- Wireless LAN unit
- Wall mount
- Ceiling mount
-
Room Type / Application:
- Retail
- Museums
- Exhibitions
- Events
- Signage
- Positioning: Ceiling Mounted, Desktop
