• UltraBlack™ Technology – Taking full advantage of the laser-array light source, Epson created a proprietary compensation filter that controls the polarization of light itself. This allows Epson to suppress any stray light within the signal to dramatically enhance the overall black density and picture contrast while producing a Dynamic Contrast Ratio exceeding 5,000,000:1
• Epson VRX Cinema Lens – Designed for zero-light leakage, the Epson VRX Cinema Lens utilizes a proprietary 15-element precision glass structure for outstanding image clarity and edge-to-edge focus uniformity. This could be one of the best projector lens technologies Epson has ever developed
• 3-Axis Motorized Lens Shift – Making installation simple, you can precisely shift the lens up to 96% horizontally and up to 47% vertically without any loss in picture distortion or clarity. You can also set the zoom and focus, then store all the settings in one of 10 lens memory presets
• HDMI^® 2.1 – Supports the full 40 Gbps bandwidth for accepting 4K HDR content up to 120 Hz. Along with ARC and eARC support, this allows for outstanding compatibility with the latest AV receivers and next-generation gaming consoles
• Native 120 Hz Refresh Rate – Refresh rates up 120 Hz allow for smoother motion for supported content while providing the option for impressive frame interpolation for content below 120 Hz
• Epic for Gaming – Gaming up to 4K at 120 frames per second, along with input lag times below 20 ms, allow for serious gamers to take full advantage of the latest generation of gaming consoles and even higher-end gaming PCs; Auto Low Latency Mode minimizes input lag for smooth and responsive gaming
• World-Class Warranty & Support – Standard 3-year limited warranty with 2-business day full unit replacement, including free shipping. And all Epson professional theater projectors come with free lifetime technical phone support
• ISF^® Certified – The Imaging Science Foundation has been setting the display standards since 1994 and has been dedicated to improving the quality of electronic imaging. Epson shares this passion for image quality and has developed technologies to allow an ISF Certified Technician to professionally calibrate the Epson QB1000 projector to the highest level of image quality

Eco Features

• RoHS compliant
• End-of-life options available
• Epson America, Inc. is a SmartWay™ Transport Partner

-----

Specifications

Projection System: Epson 3LCD
Chip Design (Architecture): 3-Chip

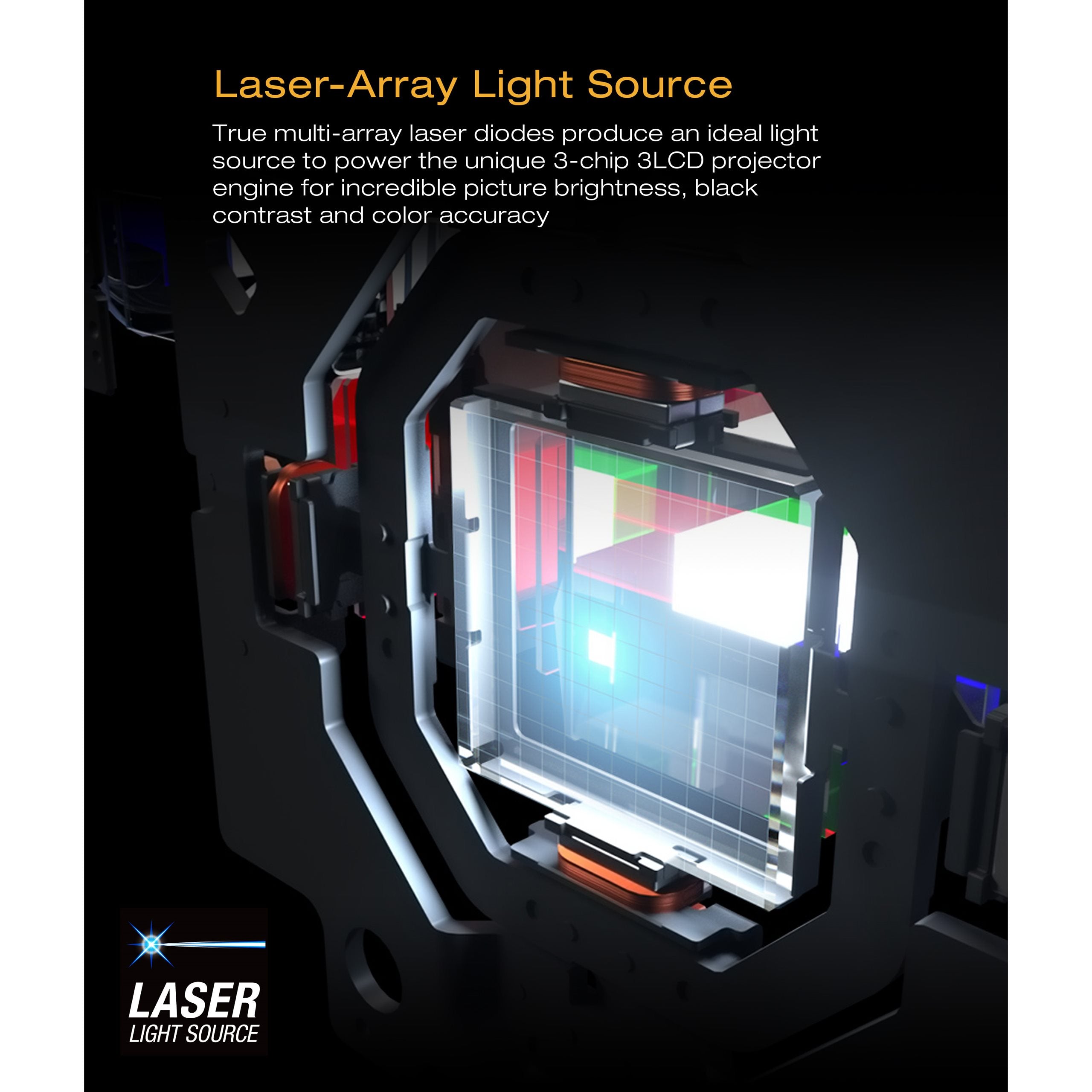

Light Source: True Laser Diode Array
Projection Method: Front, Front-Ceiling, Rear, Rear-Ceiling
Product Color: Black
Driving Method: Poly-Silicon TFT Active Matrix, 0.74"-wide panel, 12-bit
Output Resolution: 4K Display Technology1, 3840 x 2160 (dual-axis: 1920 x 1080)
Maximum Input Resolution: 4096 x 2160
Maximum Refresh Rate: 120 Hz
Supported Resolutions: 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
Native Aspect Ratio: 16:9 widescreen
Resize Aspect Ratio Support: 1.9:1 (4096 x 2160), 21:9 (2560 x 1080), 4:3 (1600 x 1200), 3:2 (720 x 480), 5:4 (720 x 576); compatible with Normal, Full or Zoom Modes
Color Brightness: Color Light Output: 3,300 lumens (IDMS Rated)
White Brightness: White Light Output: 3,300 lumens (ISO Rated)
Contrast Ratio: Up to and over 5,000,000:1, with Dynamic Contrast in Normal or High Speed setting
White Balance: 13-point temperature adjustment
Color Reproduction: Full-color (up to 1.07 billion colors)
Size (Projected Distance): 50" to 300" (at 58" to 62'4")
HDR Color Processing: Full 10-bit
Epson QZX Picture Processor: Full 12-bit
Light Source Life:

• Normal Mode: Up to 20,000 hours
• Medium Mode: Up to 20,000 hours
• Eco Mode: Up to 20,000 hours

Projection Lens
Epson VRX Lens: 15-element precision glass structure (AGS)
Type: Powered focus/optical zoom/lens position
F-Number: 2.0 – 3.0
Focal Length: 22.5 – 46.7 mm
Zoom Ratio: 1 – 2.1
Throw Ratio Range: 1.35 – 2.84
Lens Shift:

• Vertical: -96.3% to +96.3% (H center, powered)
• Horizontal: -47.1% to +47.1% (V center, powered)
  Keystone Correction: Vertical/Horizontal: ± 30 degrees
  Lens Cover: Powered, slide lens shutter

Other Features
Dynamic Range Support: HDR10, HLG
HDR Adjustment: 16 steps, real-time; Automatic Dynamic Tone Mapping
Color Modes: Dynamic, Vivid, Cinema, Natural
Aspect Adjustment: Yes (Auto/Full/Zoom/Anamorphic Wide/Horizontal Squeeze)
Anamorphic Lens Option: Compatible with third-party options; Anamorphic Lens Kit sold separately
Frame Interpolation: Input up to 4K at 60 Hz, output up to 4K at 120 Hz
eARC Audio Compatibility: LPCM, supports Dolby® Digital AC-3, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS-HD High Resolution Audio, Master Audio, DTS

, AAC
ARC Audio Compatibility: LPCM, Dolby Digital (AC-3), DTS, AAC
Web Control: Projector setup and control via web browser
Operating Temperature: 41° to 95° F (5° to 35° C)
Smart Home Control: PJLink®, Control4® and Crestron® Support
Power Supply Voltage: 100 – 240 VAC ± 10%, 50/60 Hz
Power Consumption:

• Normal Mode: 341 W
• Medium Mode: 301 W
• Eco Mode: 206 W
  Fan Noise: 22 – 32 dB
  Security: Kensington® security lock port
  Parental Controls: Power Button Lock hinders projector from being turned on without parental supervision

Dimensions (W x D x H):

• Projector, Including Feet (Excluding Cable Cover): 20.5" x 17.6" x 7.6"
  Weight: 28.2 lb
• Packaging: 27.25" x 21.75" x 10.5"
  Weight: 49.8 lb

Remote Control
Features: Front and rear directional
Operating Distance: 32 ft (10 m)
Operating Angle:

• Front Right/Left: ± 30 degrees
• Upper/Lower: ± 30 degrees
• Rear Right/Left: ± 30 degrees
• Upper/Lower: 0 + 60 degrees
• What’s in the Box
  QB1000 projector, cable cover, power cord, remote control with (2) AA batteries, Quick Setup Guide

Color Space (YCbCr)

*HDR: Support for HDR10, HDR10+, and HLG. For more information, visit epson.com/hdrcompatibility
