Exceptional Design. Effortless Elegance.
Aerospace-grade aluminum chassis, solid yet refined. Clean and understated, with a premium tactile feel. The metal chassis provides natural shielding, reducing external interference for a quieter background and greater clarity. More than a chassis, it becomes part of the listening experience, unifying form and sound.
A Refined Form

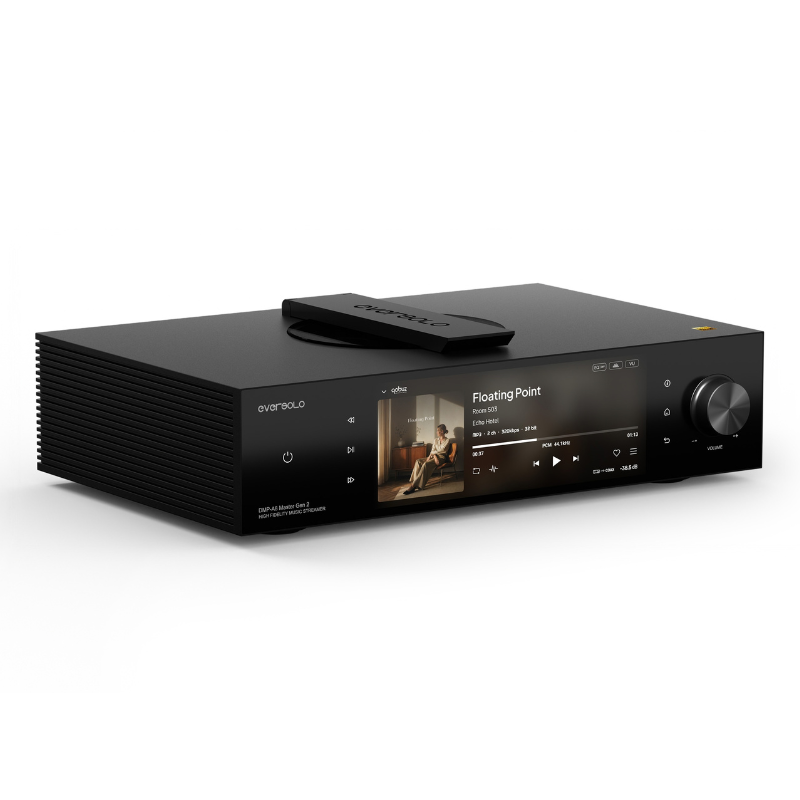

With a 388mmL× 265mmW× 98.5mmH wide-body design, DMP-A8 Master Gen 2 delivers a more refined and balanced presence. The larger chassis provides more space for internal architecture, while the extended proportions create a look that is understated yet powerful.

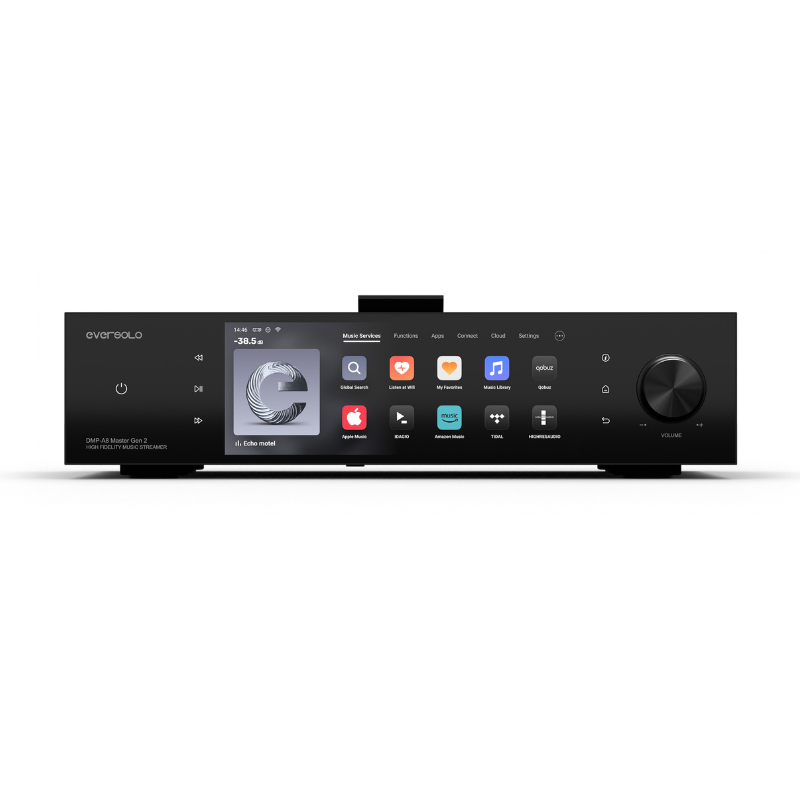

Wider View, Smoother Control
DMP-A8 Master Gen 2 introduces a redesigned UI experience, turning the display into an intuitive control center—not just an information screen.
Every Turn, Refined
Each rotation feels smooth and effortless. Smooth damping, precise response. Volume, input, and functions—all in a single turn. Clearly defined micro-scale markings. Simple, intuitive control. Clean and fluid.
Flagship DAC Architecture
Each component plays a dedicated role. AK4191EQ handles digital processing, while AK4499EXEQ focuses on D/A conversion. Ensuring precise processing at every stage of the signal path. From lossless formats such as FLAC, WAV, and APE to DSD512 playback. More musical details are preserved, with a quieter background and greater separation.Combined with AKM’s Velvet Sound™ technology, Vocals, instruments, and spatial imaging become more natural and engaging.
IIS Output, Multi-Mode Support
8 configurable IIS output modes for seamless DAC compatibility. Fewer compatibility issues, less repeated setup. More time for music. Once connected, great sound follows naturally.
Deep Bass Extension
Dedicated SUB output connects easily to a subwoofer for fuller low-frequency performance. Stronger impact. Richer atmosphere. Bringing with a more immersive experience.
SFP Pure Transmission
Dedicated SFP optical network port enabling pure optical signal transmission. Providing a “zero-interference” streaming access solution for users with extreme demands on network purity. Cleaner data delivery, resulting in more natural sound reproduction.
Specifications
DMP-A8 Master Gen 2
8.6-inch LCD Touchscreen
8 GB DDR5 + 64 GB eMMC
AK4499EXEQ + AK4191EQ
Eversolo AuralEngine
OPA1612
High-quality, low-noise dual power supply with separate linear and digital power sections
M.2 NVMe PCIe 3.0, 2280 form factor, supporting SSDs up to 8 TB
RJ-45 (10/100/1000Mbps)
Dual-band Wi-Fi 6 (2.4G + 5G)
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio, Paradise, Deezer, SoundCloud, Presto Music, Apple Music...
Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA, Network Audio Adapter, and more...
USB3.0 * 2
Bluetooth 5.4
USB compatibility: Windows 10/11, macOS, Android, and iOS. Supports up to stereo DSD512 and PCM 768kHz/32bit.
Supports up to stereo PCM 192kHz/24bit and DSD64 via DoP.
Supports up to stereo PCM 192kHz/24bit.
XLR balanced + RCA pre-input. Input range: RCA maximum 2.1 Vrms; XLR maximum 4.2 Vrms.
Supports up to stereo Native DSD512 and PCM 768kHz/32bit. Compatible only with UAC-compliant USB DACs.
Supports up to stereo Native DSD512 and PCM 768kHz/32bit.
Supports up to stereo PCM 192kHz/24bit and DSD64 via DoP.
XLR balanced + RCA pre-output.
Output Level: XLR 4.2 V
Frequency Response: 20 Hz–20 kHz, XLR/RCA ±0.25 dB
THD+N: 0.000075% (-122 dB)
Dynamic Range: XLR >129 dB
SNR: XLR >129 dB
Crosstalk: XLR >133 dB
Output Level: RCA 2.1 V
Frequency Response: 20 Hz–20 kHz, XLR/RCA ±0.25 dB
THD+N: 0.000086% (-121 dB)
Dynamic Range: RCA >127 dB
SNR: RCA >127 dB
Crosstalk: RCA >131 dB
On-screen Touch Control, Eversolo Control App, and Remote Control
AC 100–240 V, 50/60Hz
30 W
388 × 265 × 98.5 mm (L × W × H)
Remote Control × 1, Power Cable × 1, Product Manual × 1, Trigger Cable ×1, Polishing Cloth ×1
6 kg
8.45 kg
