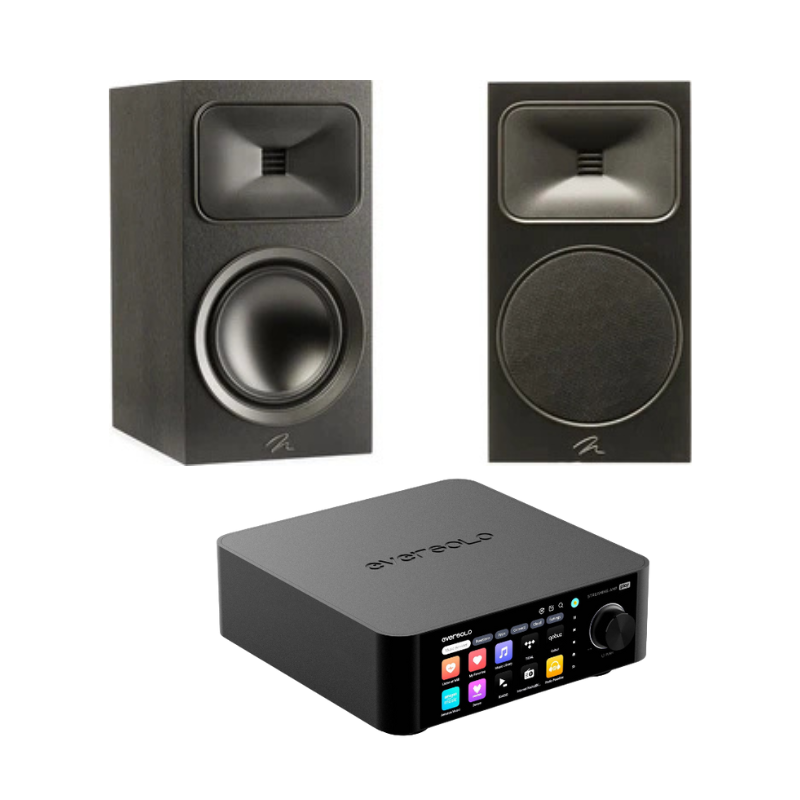

Eversolo Play Streaming Amplifier (Each)
Music Streaming Without Boundaries
Play series deeply integrates with TIDAL, Qobuz, IDAGIO, Amazon Music, TuneIn Radio, Presto Music, KKBOX, Radio Paradise, Deezer, and other leading platforms, enabling high-res lossless audio playback without additional devices.
Streaming Lossless Music
Supports streaming protocols such as Roon Ready, Qobuz Connect, TIDAL Connect, and JPLAY CERTIFIED, enabling real-time track streaming via streaming services. Access tens of millions of tracks instantly—play anytime with a click!
Control Playback Directly via Built-in Screen
The redesigned UX interaction enables track selection, favoriting, and other operations directly through Play's on-device display.
Eversolo Control
The highly acclaimed Eversolo Control welcomes a brand-new update, featuring a fresh visual style and more user-friendly operation methods. Supporting iOS, Android, and iPad devices, it offers multi-device compatibility for effortlessly controlling Eversolo Play.
Robust LAN & Cloud Integration
Play series delivers robust LAN and cloud storage compatibility, enabling seamless access to home computers and local NAS via LAN while supporting protocols like UPnP and WebDAV. Experience lightning-fast access to personal history favorites and build an all-new curated local music library.
Cross-Platform Multi-Device Interaction
Quickly connect various Eversolo Plays via the mobile app, effortlessly adjust playback tracks and volume across devices. Seamless control, your music moves with your emotions.
Listen at Will
The "Listen at Will" feature of Play can automatically play randomly recommended tracks from both logged-in music services and your local music library, breaking away from the fixed styles of algorithmic recommendations to fill your music journey with surprises.
Room Correction
Enables acoustic correction via an external measurement microphone or smartphone microphone, automatically detecting large living rooms and compact bedrooms. Intelligently eliminates environmental reflections to deliver flawless music immersion in every space.
Aluminum Alloy Body
Crafted with CNC-machined unibody construction and high-strength aluminum alloy, it enhances structural rigidity, effectively shields against external electromagnetic interference, ensures pristine audio signal transmission, while showcasing master-level precision craftsmanship.
Full-Coverage Heat Sink
The bottom of Play series features an extensive thermal design with a large-area heat sink, effectively reducing internal electronic component temperatures and ensuring circuit board and chip stability. Every product detail is meticulously crafted for an uncompromised lossless music experience.
5.5-inch Vibrant Screen with All-New UX Interaction
A 5.5-inch HD large display featuring a all-new UI interface ensures intuitive and smooth operation, with clear playlist visibility. From browsing your music library to switching playback modes, everything is within easy reach, making your music experience more convenient and immersive.
Vibrant RGB Light Ring
Play series features a RGB light ring supporting seamless color switching: vibrant orange for Rock, serene blue for Blues, deep green for Country... transforming intangible melodies into visible lightscapes.
Bring Music to Life
Featuring retro dynamic VU meters and dynamic spectrum, Play series visually tracks musical rhythms, unlocking immersive experiences.
Specifications
Model:
Play / Play CD Edition
Body Material:
Aluminium alloy
Display:
5.5” LCD Touchscreen
CD-ROM:
Only the CD Edition includes a CD-ROM
Core Components
DAC:
AK4493SEQ
Internal Memory:
4G DDR4 + 32G eMMC
USB Ports:
USB 3.0 × 2
Ethernet:
RJ-45 (10/100/1000 Mbps)
WiFi:
2.4G + 5G
DAC Decoding:
Up to Stereo DSD512, PCM 768kHz 32Bit
Music File Formats Supported:
DSD (DSF, DFF, SACD ISO – DST up to DSD512), MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, CUE
Music Services & Streaming
Services:
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, etc.
Streaming Support:
Roon Ready, TIDAL Connect, DLNA, Qobuz Connect
Control Methods:
-
On-screen touch control
-
Android/iPhone/iPad App control
Audio Input & Output
-
Bluetooth Input: BT 5.3 (SBC / AAC)
-
HDMI ARC Input: PCM 192kHz 24Bit Stereo
-
Optical / Coaxial Input: PCM 192kHz 24Bit, DoP64
-
Analog Line In: Max input voltage 2V RMS
-
PHONO Input: MM/MC Supported
-
USB Audio Output: DSD512 Native, PCM 768kHz 32Bit (UAC standard DACs only)
-
Coaxial Output: PCM 192kHz 24Bit, DoP64
-
Subwoofer Output: Adjustable crossover from 40Hz to 500Hz
Audio Performance
-
Continuous Output Power: 60W RMS @ 8Ω / 110W RMS @ 4Ω
-
Amplifier Type: Class D
-
Amplifier Gain: 20.8dB
-
Input Sensitivity: 2V
-
THD (20Hz–20kHz): < 0.0037% @ 5W, 1kHz
-
Signal-to-Noise Ratio: >109dB (A-weighted) @ 110W, 4Ω
-
Frequency Response:
-
20Hz–20kHz: < ±0.25dB
-
20Hz–40kHz: < -3dB
-
-
Damping Factor: >107
-
Channel Crosstalk: < -108dB
PHONO Input
-
Amplifier Gain: MM 60dB, MC 74dB
-
Input Sensitivity: MM 5mV, MC 0.5mV
-
RIAA Equalization: ±0.5dB, 20Hz–20kHz
Power Supply
-
AC Input: 110~240V, 50/60Hz, Max 4A
Physical
-
Dimensions: 230mm × 230mm × 75mm
-
Net Weight: 2.6kg / 2.9kg
-
Color: Black
Included in Box:
-
Power Cable × 1
-
Quick Start Guide × 1

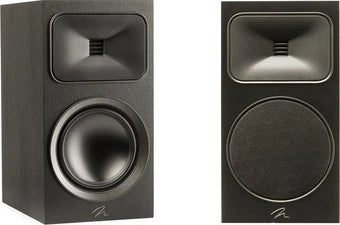

Martin Logan Motion Foundation B2 Bookshelf Speakers (Pair)
The MartinLogan Foundation Story
MartinLogan Foundation Series products redefine affordability by incorporating many of MartinLogan's renowned high-performance technologies at accessible prices.
Leveraging 40 years of design and engineering prowess and offering MartinLogan’s renowned thin-film performance, Motion® Foundation is a gateway into the world of true hi-fi sound. With a choice of 5 different models in 3 different finishes, Motion® Foundation speakers are an ideal foundation for building a high performance Stereo or Surround sound system. Bringing high end performance to a wider audience, Motion® Foundation offers incredible immersion for all your favorite content.
Legendary MartinLogan Sound
MartinLogan speakers are known for their exceptional articulation, detail and realism, regardless of the listening environment. By using advanced thin-film technologies and Controlled Dispersion, MartinLogan delivers a unique and unparalleled listening experience that is not commonly found in other speakers.
Gen2 Obsidian Folded Motion Tweeter S
The Gen2 FMT S offers effortless performance, unmatched by conventional technologies. By folding thin film material, MartinLogan is able to pack more surface area into a small space. Large surface area, light weight and low excursion means an incredibly fast and responsive tweeter capable of reproducing the most nuanced content with stunning detail and clarity.
Folded Motion® Waveguide
Enhances the Controlled Dispersion of the tweeter, blanketing the listening area with incredible detail and precision. Avoids performance robbing room reflections and provides a more consistent sound across a wider seating area.
Aluminum Mid-Bass Driver
Using trickle down technology from MartinLogan’s own Motion XT and Motion Series, the B1 uses the exceptional properties of Aluminum to maximize clarity, detail, and output from the mid-bass driver.
Modern Design Featuring Timeless Finishes
Motion® Foundation® models are available in 3 timeless finishes to compliment any decor: Walnut with Bronze trim, Black with Gunmetal trim, or Satin White with Silver trim.
Specifications:
- Frequency Response: 42 Hz - 23 kHz ± 3 dB
- Tweeter Dispersion (horizontal x vertical): 90° x 90°
- Recommended Amplifier Power: 15 - 100 watts
- Sensitivity: 90 dB
- Impedance: 5 ohms
- High Frequency Driver: 0.94” x 1” (2.4 x 2.5cm) Gen2 Folded Motion® Tweeter S with 3.5 in2 (22.6 cm2) diaphragm.
- Crossover Frequency: 3,800 Hz (2-way)
- Mid-Frequency Drivers: 6.5” (16.5cm) aluminum cone with cast aluminum basket. Non-resonant sealed chamber format. Unibody cone construction.
- Cabinet: Rear Ported
- Binding Post Inputs: 5-way Binding Posts (Non Bi-Wire)
- Weight: 15 lbs / 6.8 kg
- Dimensions (H x W x D): 15” x 7-3/4” x 11-1/2” (38.1cm x 19.7cm x 29.2cm)
