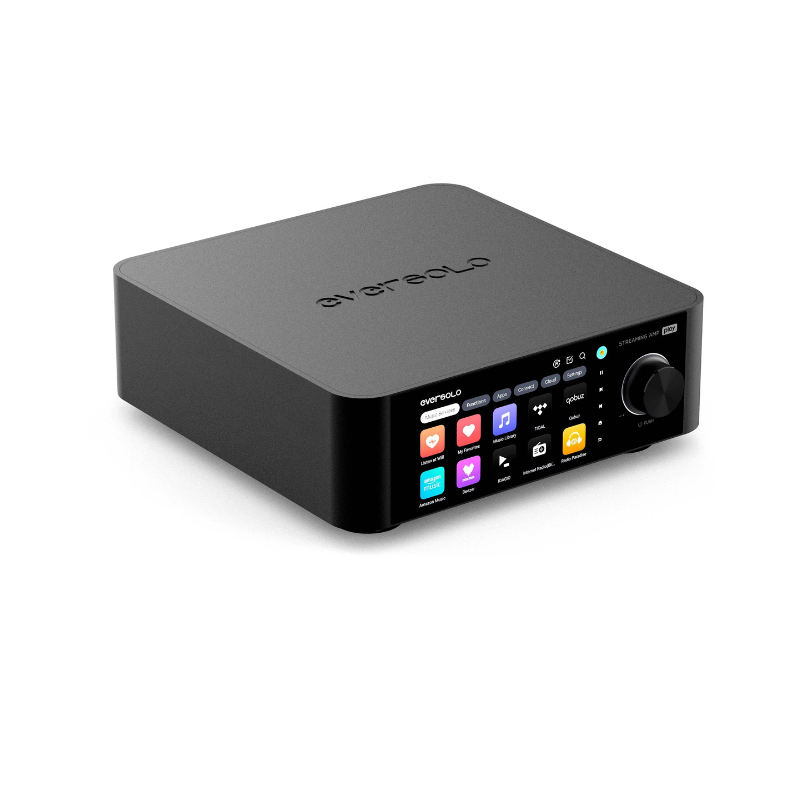

Eversolo Play Streaming Amplifier (Each)
Specifications
Model:
Play / Play CD Edition
Body Material:
Aluminium alloy
Display:
5.5” LCD Touchscreen
CD-ROM:
Only the CD Edition includes a CD-ROM
Core Components
DAC:
AK4493SEQ
Internal Memory:
4G DDR4 + 32G eMMC
USB Ports:
USB 3.0 × 2
Ethernet:
RJ-45 (10/100/1000 Mbps)
WiFi:
2.4G + 5G
DAC Decoding:
Up to Stereo DSD512, PCM 768kHz 32Bit
Music File Formats Supported:
DSD (DSF, DFF, SACD ISO – DST up to DSD512), MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, CUE
Music Services & Streaming
Services:
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, etc.
Streaming Support:
Roon Ready, TIDAL Connect, DLNA, Qobuz Connect
Control Methods:
- On-screen touch control
- Android/iPhone/iPad App control
Audio Input & Output
- Bluetooth Input: BT 5.3 (SBC / AAC)
- HDMI ARC Input: PCM 192kHz 24Bit Stereo
- Optical / Coaxial Input: PCM 192kHz 24Bit, DoP64
- Analog Line In: Max input voltage 2V RMS
- PHONO Input: MM/MC Supported
- USB Audio Output: DSD512 Native, PCM 768kHz 32Bit (UAC standard DACs only)
- Coaxial Output: PCM 192kHz 24Bit, DoP64
- Subwoofer Output: Adjustable crossover from 40Hz to 500Hz
Audio Performance
- Continuous Output Power: 60W RMS @ 8Ω / 110W RMS @ 4Ω
- Amplifier Type: Class D
- Amplifier Gain: 20.8dB
- Input Sensitivity: 2V
- THD (20Hz–20kHz): < 0.0037% @ 5W, 1kHz
- Signal-to-Noise Ratio: >109dB (A-weighted) @ 110W, 4Ω
-
Frequency Response:
- 20Hz–20kHz: < ±0.25dB
- 20Hz–40kHz: < -3dB
- Damping Factor: >107
- Channel Crosstalk: < -108dB
PHONO Input
- Amplifier Gain: MM 60dB, MC 74dB
- Input Sensitivity: MM 5mV, MC 0.5mV
- RIAA Equalization: ±0.5dB, 20Hz–20kHz
Power Supply
-
AC Input: 110~240V, 50/60Hz, Max 4A
Physical
-
Dimensions: 230mm × 230mm × 75mm
-
Net Weight: 2.6kg / 2.9kg
-
Color: Black
Included in Box:
- Power Cable × 1
- Quick Start Guide × 1
________

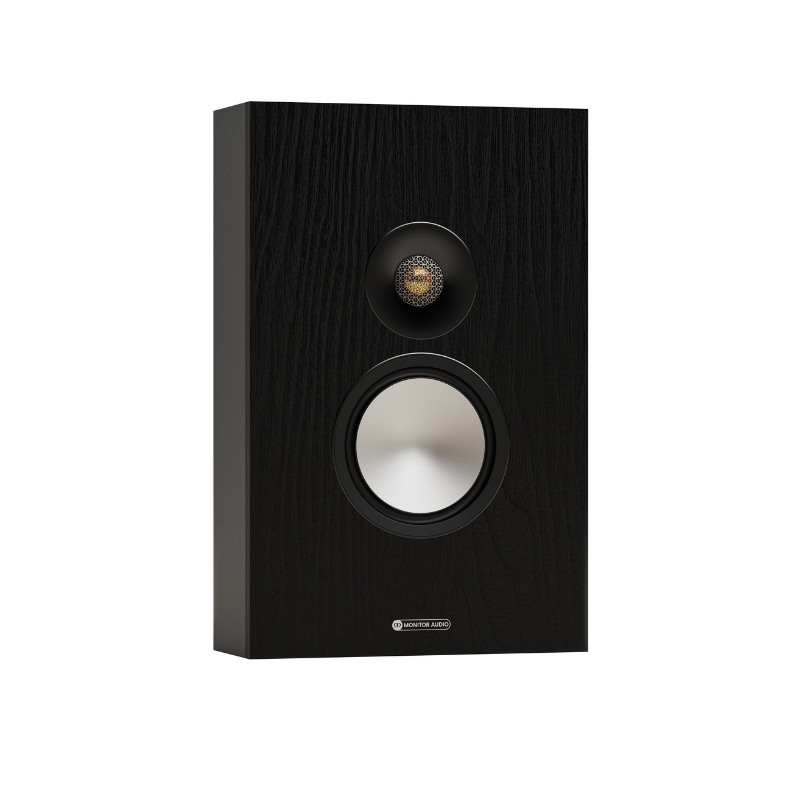

Monitor Audio Bronze On-Wall 7G (Each)
Specifications
System Format
2-Way
Performance
-
Frequency Response (-6dB, In-Room): 42 Hz — 30 kHz
-
Sensitivity (2.83 Vrms @ 1m, Free-Field): 88 dB
-
Nominal Impedance: 8 Ohms
-
Minimum Impedance (20 Hz - 20 kHz): 4.7 Ohms @ 17 kHz
-
Maximum Peak SPL (AES75, Z-weighted): 112 dB
-
Continuous Power Handling (CTA 426-B): 100 W
-
Recommended Amplifier Power:
-
50 – 200 W into 4 Ohms
-
30 – 100 W into 8 Ohms
-
Acoustic Design
-
Bass Alignment: Ported
-
Port Tuning Frequency: 47 Hz
-
Crossover Frequency (LF/HF): 3.0 kHz
-
Drive Units:
-
1 x 6" C-CAM Bass/Mid Driver
-
1 x 25mm C-CAM Gold Dome Tweeter
-
Dimensions & Weight
-
External Dimensions (H x W x D): 465 x 300 x 135 mm (18 5/16 x 11 13/16 x 5 5/16")
-
Packed Dimensions (H x W x D): 573 x 402 x 240 mm (22 9/16 x 15 13/16 x 9 7/16")
-
Weight (each): 7 kg (15 lb 7 oz)
Additional Information
-
Sold As: Single
-
Warranty: 5 Years
__________

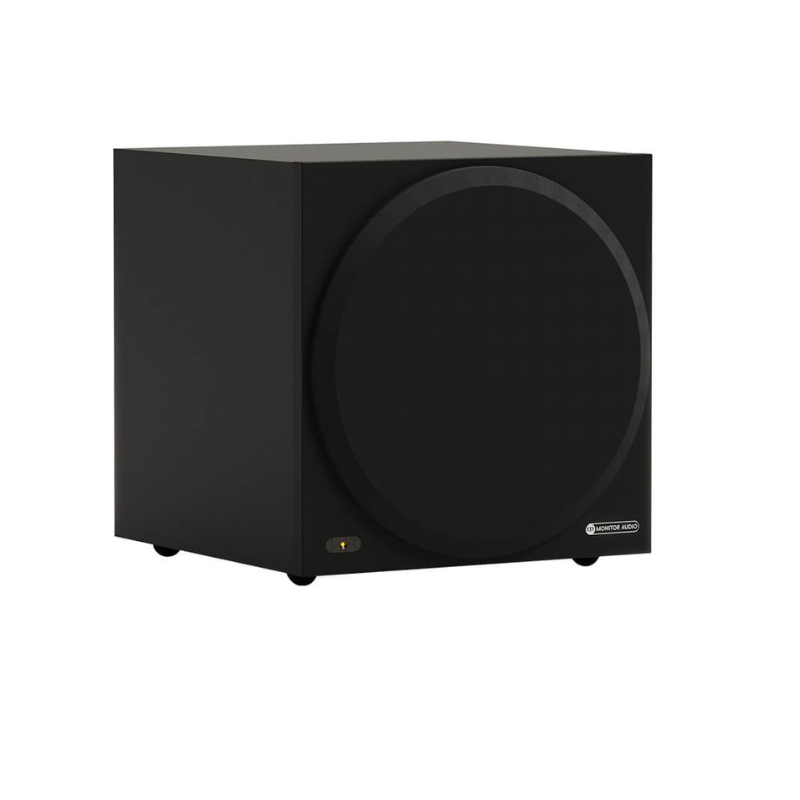

Monitor Audio Vestra W10 Subwoofer (Each)
Specifications
| Category | Details |
|---|---|
| System Format | Active |
| Frequency Response | 19 – 200 Hz (In-room, -6 dB) |
| Maximum Peak SPL | 111 dB (CTA 2010-B, Z-weighted, half-space) |
| Amplifier Output | 250 W RMS (Instantaneous) |
| Amplifier Type | High-Efficiency Class-D |
| Bass Alignment | Sealed |
| Low Pass Filter | 32 – 200 Hz (-6 dB) |
| Inputs | - Stereo Unbalanced RCA - LFE Unbalanced RCA - 12V Trigger (3.5 mm mono jack) |
| Input Impedance | 47 kΩ |
| Phase Control | 0° / 180° (Toggle Switch) |
| EQ DSP Modes | 3 Presets: Impact, Movie, Music |
| Auto Music Sensing | Auto On: Line Level > 3 mV Auto Standby: After 20 minutes |
| Mains Input Voltage | Universal (85 – 265 VAC, 50 – 60 Hz) |
| Power Consumption | 60 W (1/8th Max Output) |
| Driver | 1 × 10" (254 mm) High Linear-Excursion Driver |
| Dimensions (H × W × D) | 344 × 330 × 360 mm (13½ × 13 × 14³⁄₁₆”) |
| Weight | 13.3 kg |
| Grille | Cloth-covered |
| Warranty | 5 Years |
