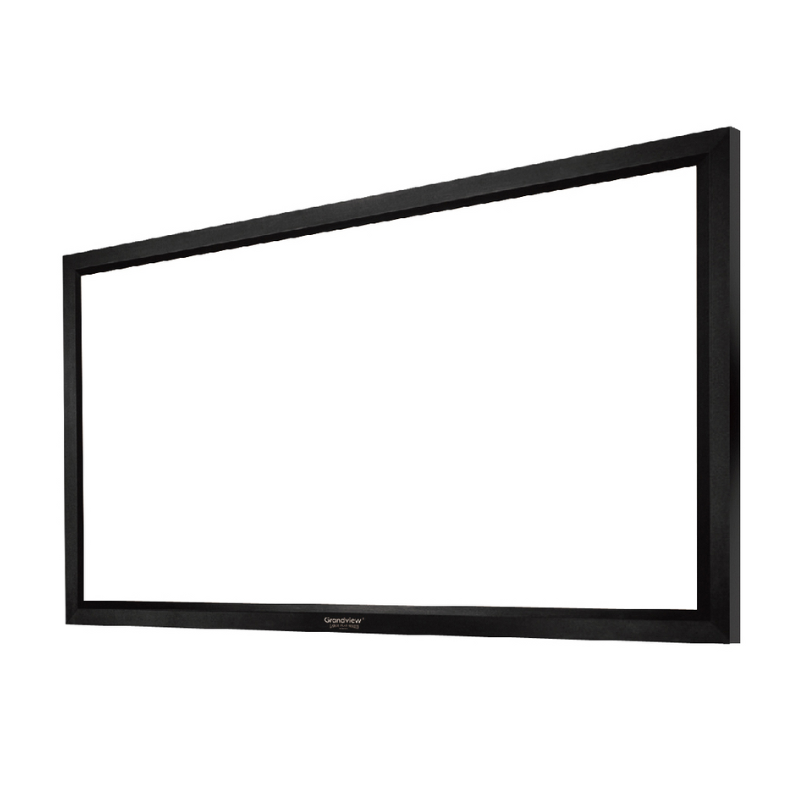

Grandview’s Fixed-Frame Series is the enthusiast’s choice for a dedicated home theatre experience. It features a multi-point tensioning system that ensures the surface is evenly tensioned for a perfectly flat projecting surface. Grandview’s ISF certified 4K screens will bring the big cinema experience right into your home.
• Sizes: 100” – 200”
• Installation Options: Wall Mount
• 100mm bezel

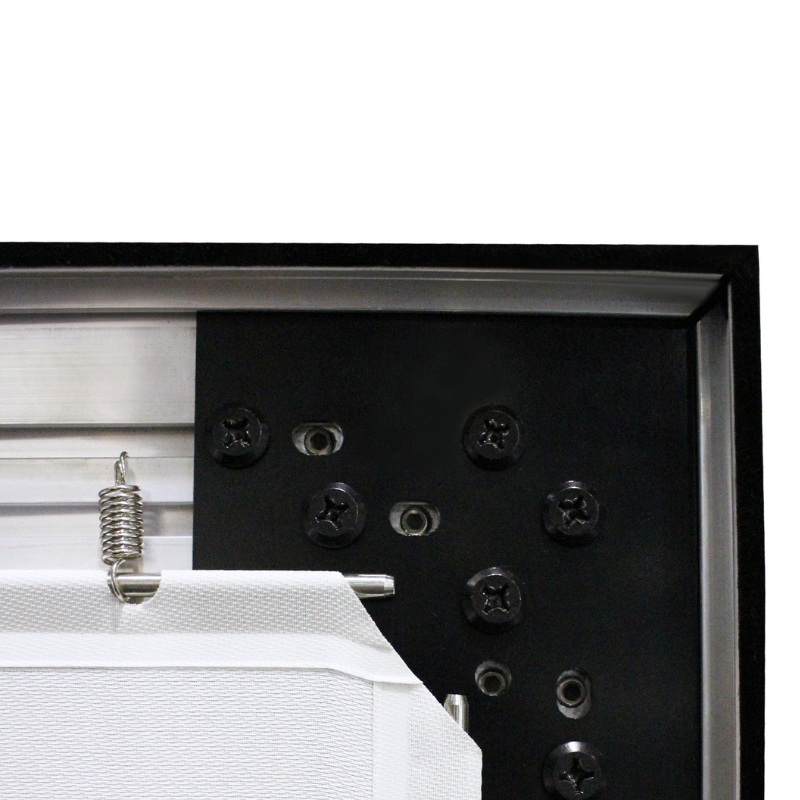

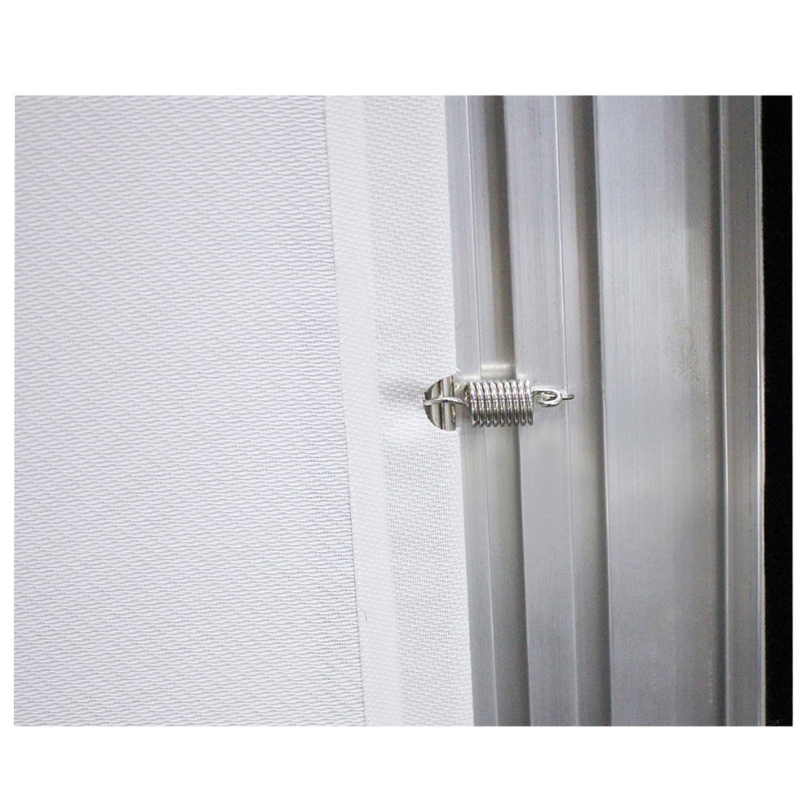

• Multi-Point Tension Design
• Aluminum Frame
• Easy Installation
• Lightweight design
------
Product Specifications:
| Diagonal Measurement | Viewing Area (W×H) mm | Product Height (A) mm | Black Drop (B3) mm | Lower Border (B2) mm | Left/Right (B1) mm | Product Length (L) mm | Endcap Height (Hc) mm | Endcap Width (Wc) mm |
|---|---|---|---|---|---|---|---|---|
| 100" | 2214 × 1245 | 1445 | 100 | 100 | 100 | 2414 | ||
| 106" | 2346 × 1319 | 1519 | 100 | 100 | 100 | 2546 | ||
| 112" | 2479 × 1394 | 1594 | 100 | 100 | 100 | 2679 | ||
| 120" | 2656 × 1494 | 1694 | 100 | 100 | 100 | 2856 | ||
| 135" | 2988 × 1680 | 1880 | 100 | 100 | 100 | 3188 | ||
| 150" | 3320 × 1867 | 2067 | 100 | 100 | 100 | 3520 | ||
| 180" | 3984 × 2240 | 2440 | 100 | 100 | 100 | 4184 | ||
| 200" | 4427 × 2489 | 2689 | 100 | 100 | 100 | 4627 |
