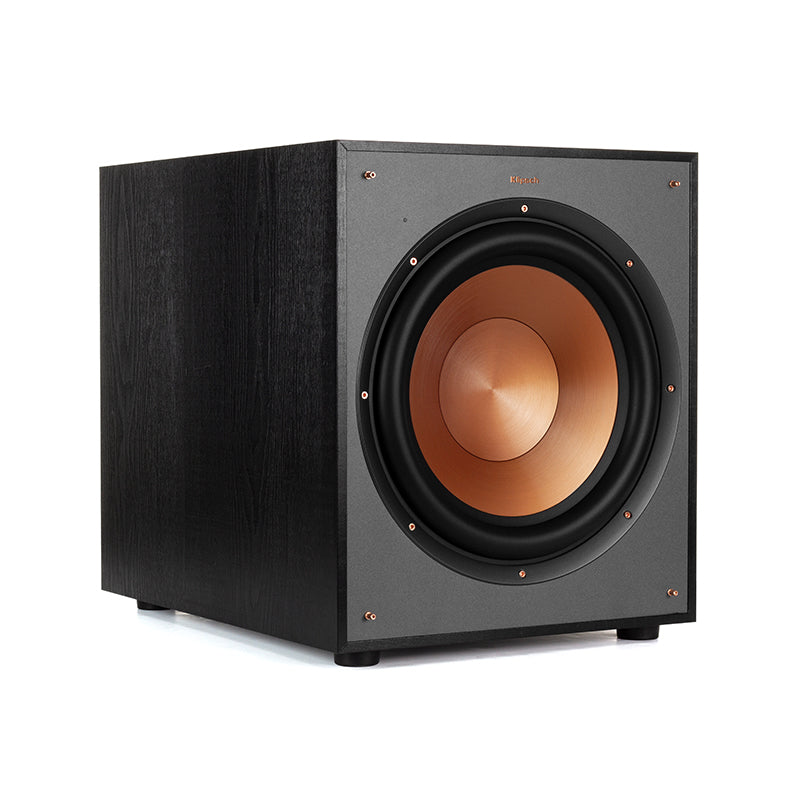

Spun-Copper IMG Woofer
Injection Molded Graphite (IMG) woofers are designed to be light and rigid for the enhanced low-frequency response with minimal cone breakup and distortion.
Digital Amplifier
The built-in digital amplifier is engineered to deliver power with high efficiency and true-to-source accuracy to the driver for augmented efficiency, output, detail, and power.
Front-Firing Driver
The driver provides deep bass and placement flexibility.
Low Pass Crossover and Phase Control
These controls help you blend the subwoofer with other Klipsch speakers and establish the level of bass you want in your room.
Line/LFE Inputs
Having two input options helps ensure compatibility with a variety of receivers.
Front Mounted LED Power Indicator
Lets you know when the subwoofer is on or off.
Onboard Controls
Control options include volume, low-pass, phase (0/180°), and auto power on
MDF Cabinet with Scratch-Resistant, Textured Wood Grain Vinyl
The cabinet design is meant to fit into nearly any décor.
Low-Profile Magnetic Grille
The magnetically-attached grille is engineered for acoustic transparency.
SPECIFICATIONS
Subwoofer
| Subwoofer Type | Active |
| Enclosure Type | Bass-Reflex |
| Amplifier Power Rating | 200 W RMS 400 W Peak |
| Drivers | 12" / 30.5 cm Copper-Spun Graphite (Front-Firing) |
| Frequency Response | 29 to 120 Hz |
| Connectivity | 1 x RCA Input (LFE) |
| Maximum SPL | 116 dB |
| Phase Adjustment | 0 / 180° |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Physical
| Cabinet Material | MDF |
| Dimensions | 14 x 16.5 x 19.2" / 356 x 419 x 488 mm |
| Weight | 31.0 lb / 14.1 kg |
