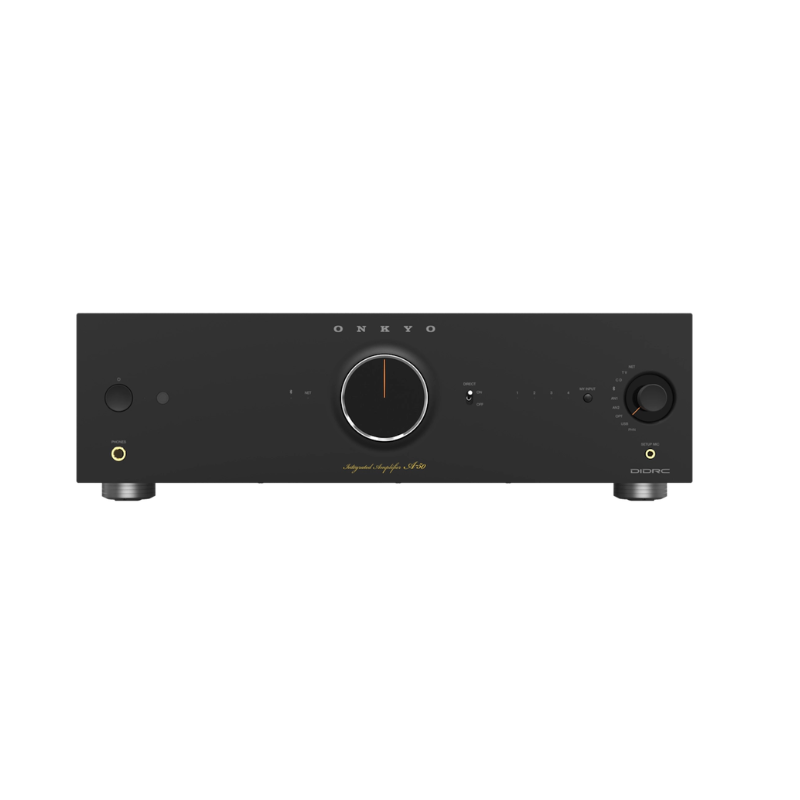

Onkyo Icon A50 2-Channel HiFi Integrated Amplifier (Each)
Inverted Darlington Amplifier
A three-stage Inverted Darlington Amplifier drives high current signals with minimal distortion, so your content is just as clear and strong as the artists intended.
Dynamic Intermodulation Distortion Reduction Circuitry (DIDRC)
Thanks to patented DIDRC circuitry (Dynamic Intermodulation Distortion Reduction Circuitry), the Onkyo A-50 Integrated Amplifier delivers a vivid yet smooth and comfortable sound from any musical source. DIDRC is a discrete signal control circuit designed to embody Onkyo’s sound philosophy, used in the analog filter of the DAC. DIDRC’s high slew-rate design reduces noise generated in very high frequency bands of digital sources, resulting in cleaner, clearer audio.
Aluminum front panel
A 5mm-thick extruded aluminum front panel is used to increase rigidity and suppress vibration.
An oval chassis
The “oval chassis” with oval press lines strengthens the bottom surface and disperses vibration.
Fan-less design
Combined with a fan-less design that eliminates noise, a premium stereo DAC (32bit / 768kHz) that reduces distortion, and an extrusion aluminum heat sink for vibration suppression, this amplifier provides an exquisite and powerful sound.
High quality capacitors
High-quality 10000uF capacitors custom-made exclusively for Onkyo, a copper bus bar, and rigid front panels further reduce vibration and signal degradation.
Everything you need for sublime audio experiences
Hardwire your turntable, plug in your CD player, and stream your songs with ease thanks to the Onkyo A-50’s many connectivity options. With 3pairs RCA, HDMI ARC, MM/MC phono, coax, USB-A, optical, and headphone output, you have all the flexibility.
Create your perfect system
The A-50 has an output power of 110w(FTC, 8Ω, 20Hz - 20kHz, THD 0.08%, 2ch driven), 180w(4Ω, 1kHz, 0.7%, 2ch driven). Although a single integrated amplifier, it can powerfully drive a variety of speakers, from large floorstanding speakers to small bookshelf speakers, maximizing each system’s potential.
Dirac Live to correct your room’s acoustic flaws
Onkyo builds world-class products for early adaptors and tech enthusiasts. It’s what sets us apart from the rest, and the A-50 Integrated Amplifier is no exception. That’s why it comes with built-in Dirac Live Room Correction Suite Stereo. With frequency response correction (Limited : 20～500Hz / Licensed, Full version : full bandwidth / Need to purchase a license), multiple playback modes, and more, this highly sought feature will elevate your listening experience by taking your unique system and room setup into account.
From Onkyo academy: Benefits of an integrated amplifier
An integrated amplifier combines the power of a standard amplifier, with the intelligent signal processing of a pre-amplifier, to provide the best of both worlds in one convenient chassis. Input signals from your device (music source) can be controlled and adjusted to your liking – which may vary depending on the speakers you listen through, the type of audio being played, the musical genre, etc. – and customize the experience accordingly. The power amp takes those signals and literally powers them into your speakers.
SPECIFICATIONS
OUTPUT POWER 110w ( 8ohm, 20-20kHz, THD 0.07%, 2ch driven )
180w ( 4ohm, 1kHz, THD 0.7%, 2ch driven )
AMPLIFIER CHANNEL 2 Ch
PRE AMPLIFIER CHANNEL 2 Ch
AMPLIFIER TYPE Class AB
FREQUENCY RESPONSE 5Hz~100kHz (+1/-3dB)
TONE CONTROL
(BASS / TREBLE) 100Hz ±10dB / 10kHz ±10dB
SPEAKER IMPEDANCE 4-16Ω
ANALOG AUDIO INPUT RCA (Unbalanced) x 3 Pair
DIGITAL AUDIO INPUT HDMI ARC, COAX, Optical x 2 , USB-A (Storage playback)
PHONO INPUT 1 Pair (MM/MC)
AUDIO PRE OUTPUT RCA(Unbalanced) x 1 Pair
HEADPHONE OUTPUT 1/4”(6.3mm) Jack
SETUP MIC INPUT 1/8”(3.5mm) Jack
NETWORK CONNECTIVITY Wi-Fi, LAN
BLUETOOTH SBC, aptX, aptX HD
ROOM CALIBRATION Dirac Live® Room Correction (Full version is option)
PRODUCT DIMENSIONS
(W X H X D) 17.1” (435mm) x 5.3” (135mm) x 14.0” (355mm)
PRODUCT WEIGHT 13.0 kg
PACKAGE DIMENSIONS
(W X H X D) 21.3” (542mm) x 9.3” (236mm) x 17.4” (441mm)
POWER CONSUMPTION 350w, 47w (idle), Less than 0.3w (Standby)

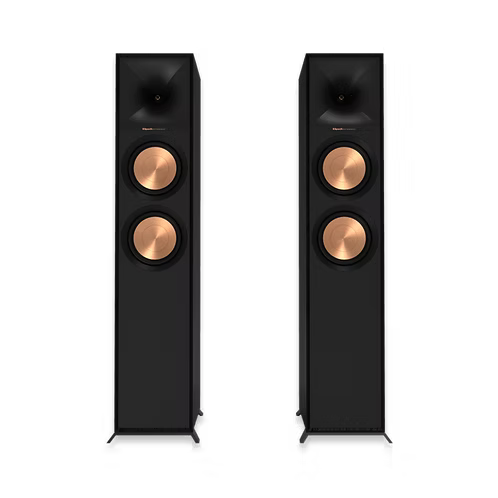

Klipsch R-600F Floorstanding Speaker (Pair)
LINEAR TRAVEL SUSPENSION (LTS) ALUMINUM TWEETER WITH KAPTON SUSPENSION
The exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced, detailed performances. Aluminum is an extremely light and rigid material used in the tweeter assembly to provide high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making it a core component of some of the best speakers in the world.
SPUN-COPPER THERMOFORMED CRYSTALLINE POLYMER (TCP) WOOFERS
Utilizing trickle-down technology from Klipsch’s highly-acclaimed Reference Premiere series, the TCP woofers have steeper angling of the cones for a smoother response and improved accuracy and transparency. The additional ribbing increases the overall rigidity for less cone breakup at higher frequencies.
REAR TRACTRIX PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
SLEEK, MODERN APPEARANCE
Hidden fasteners, edge-to-edge horn, and low-profile magnetic grilles give the speakers a polished, modern appearance.
MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD GRAIN VINYL
Stylish aesthetic with absolute durability that results in a seamless integration into any décor.
HIGH-QUALITY CABINET DESIGN
Reinforced 3/4” MDF construction with an all-new bracing design reduces cabinet vibration for less audible coloration and improved sonic accuracy.
REFINED ATMOS CONNECTIONS
Upgrading to Dolby Atmos is extremely easy with the simple and hidden connections located on the back of the speakers. These refined connections reduce the amount of wire seen and hold them in place for better wire management.
