A Reference In Image Quality
The UDP800 can play DVDs, Blu-rays, 4K UHD discs and even media files, featuring h265 & H264 support. Picture quality is sharp and clear, with crisp details pleasing to the eye.
HDR Technology
The UDP800 has eye-popping brightness, contrast and gorgeous colors. Picture is rich and full, with vivid colors, even in low light and backlight environment. UDP800 supports HDR10, HDR10+ and Dolby Vision with stunning HDR to SDR conversion, with BT.2020/BT.709/BT.601 color space support.
4K UHD Blu-ray
The UDP800 can convert low resolution video sources up to 4K 50/60Hz (3840 x 2160) resolution. Four times the resolution of full HD 1080p, enhancing home video experience.
High Fidelity Lossless Music
The UDP800 can decode DSD64/128, multi-channel DSD64, and 192kHz/24-bit PCM formats with AIFF, ALAC, APE, FLAC and WAV audio file support. Enjoy 4K hd picture quality without missing every detail of sound. UDP800 supports Dolby TrueHD and DTS-HD Master Audio, as well as Dolby Atmos and DTS-X, enabling you to enjoy the best panoramic sound and immersive experience.
User Experience interface
The UDP800 Interface is designed to provide you a smooth and intuitive experience, allowing easy access to various settings and local USB devices and networks.
Full multimedia experience
UDP800 supports multiple disc and media formats, such as UHD-BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, SACD, CD, CD-R/RW. In addition, USB HDD up to 16TB is supported, with direct access from your computer or NAS through your local network using DLNA or SMB protocols, for a better multimedia life.
Premium Digital Analog Converter

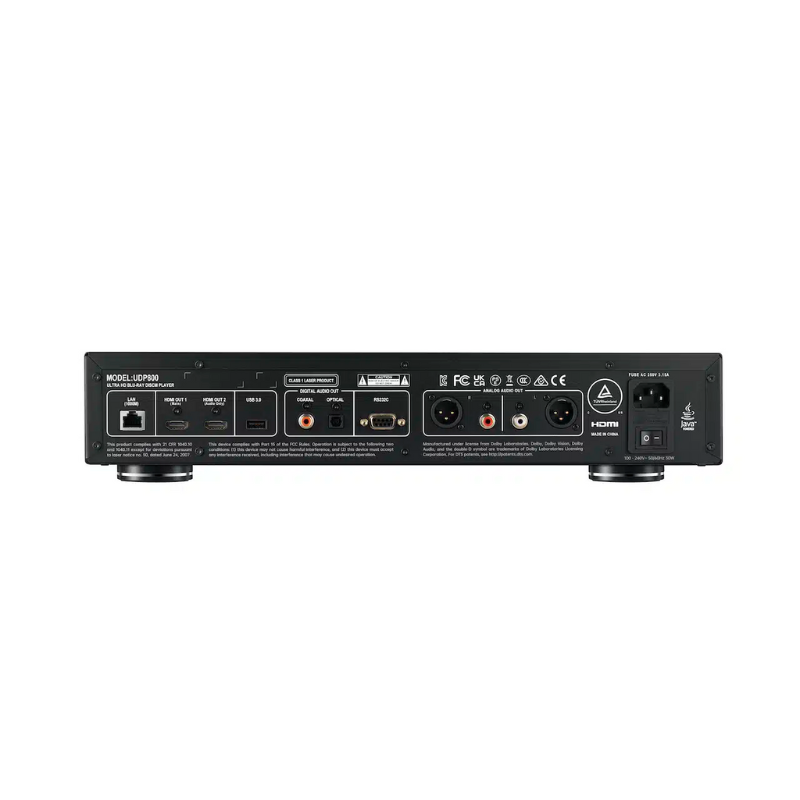

For Pure Audio playback, UDP800 specifically adopts a 4-layer PCB circuit board where each channel is designed with independent wiring. Two independent Burr-Brown PCM 1795 DAC processors are used for two-channel D/A decoding, processing left channel and right channel respectively. And high-quality MUSES8920 OP-AMP for audiophile sound quality. UDP800 comes with stereo XLR gold-plated balanced terminals and stereo RCA gold-plated unbalanced outputs. Pure audio mode function is available to bring uncompromised sound quality to audio lovers.
High-Power transformer
MAGNETAR engineers specially selected a custom 60W high-power low noise transformer for the UDP800, with a two-stage filter design along with Japanese Rubycon electrolytic capacitors to meet the high transient response required by surround sound systems and high-resolution audio. A separate metal case lowers noise level, providing stability and silence, further improving audio and video quality.
Elegant and Solid quality in Chassis Construction
Achieving exceptional audio and video performance requires high quality chassis construction and stability. The UDP800 provides a brushed aluminum front panel, in a solid highly rigid metal chassis to greatly improve audio and video performance, with a distinctive double layer chassis structure thickened to 1.6mm and a 3mm steel plate under its base, reducing vibration and generated noise during playback. Major internal components, including our CD mechanism and power supply are independently shielded to reduce external magnetic fields. With such a qualitative design, the MAGNETAR UDP800 weighs 8kg! High-end home entertainment at his best.
