AV 30 delivers exceptional performance and capability for large media rooms and dedicated home theater systems. This 11.4-channel balanced AV preamplifier features Marantz HDAM discrete circuitry and boasts seven HDMI inputs, each of which is 8K Ultra HD compatible. Powered by HEOS™ for high-resolution music streaming, AV 30 includes room correction with Audyssey MultEQ XT32 and optional Dirac Live. It delivers Dolby Atmos, DTS:X Pro, AURO-3D, and features multiple inputs and balanced pre-amp outputs for all channels, including four independent subwoofers.

Enjoy every movie moment with immersive realism and lifelike detail. AV 30 delivers an outstanding theater experience—in your home.

Ultimate Flexibility
The 11.4-channel onboard processing supports a wide range of speaker configurations. Perfect for all forms of immersive audio suitable for even large home theater systems.

AV 30 comes packed with support for the latest high-resolution movie formats, plus 8K video compatibility, room optimization, and Powered by HEOS™ technology to simplify and elevate your listening.
A modern expression of timeless design principles, AV 30 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.
Specifications
Multichannel Surround
-
DTSDTS-HD Master Audio, DTS:X,
DTS Virtual:X, DTS Neural:X
-
DolbyDolby TrueHD, Dolby Atmos,
Dolby Atmos Height Virtualization,
Dolby Surround
-
IMAXIMAX Enhanced
-
Auro 3D / 360 Reality Audio / MPEG HYes / Yes / Yes
-
Multichannel StereoYes
-
Max Number of Processing (Pre-amp) Channels11.4
Sound Enhancements
-
Copper-Plated Chassis / Toroidial Power TransformerYes / Yes
-
Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM)Yes / Yes (HDAM-SA2)
-
Pure Direct / Gold-Plated RCA TerminalsYes / Yes
-
Clock Jitter ReducerYes
-
Dirac Live upgradabilityYes
-
Compressed Audio Enhancer: MDAX2Yes
-
Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFCYes / Yes / Yes
-
AudysseyMultEQ XT32
Network
-
Wi-Fi / Bluetooth / EthernetYes / Yes / Yes
-
HEOS Multi-Room and StreamingYes
-
Bluetooth Retransmit for Bluetooth HeadphonesYes
-
Apple HomePodYes
-
Lossy formatsMP3, WMA, AAC
-
Lossless formatsFLAC, FLAC HD 192/24,
ALAC, ALAC 192/24,
WAV, WAV 192/24
-
DSD Audio StreamingYes (up to DSD5.6)
-
Gapless PlaybackFLAC, ALAC, WAV, DSD
-
TuneIn / AirPlay 2 / SpotifyYes / Yes / Yes
-
Roon-ReadyYes
-
Other Streaming Services*Amazon Music / TIDAL /
Deezer / Napster / SoundCloud
-
Compatible with Remote App for SmartphonesMarantz AVR Remote
-
Compatible with Remote App for TabletsAndroid / iOS / Amazon Kindle
HDMI
-
Total HDMI Inputs7
-
HDCP 2.3 SupportYes
-
HDMI Outputs: Main / Zone2 / 1
-
HDMI Scaling1080P/4K to 8K
-
GUI Overlay on HDMIYes
-
HDMI 2.1: 8K/60Hz AB / 4K/120Hz ABYes / Yes
-
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out7 / 2 (up to 40 Gbps)
-
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDRYes / Yes / Yes / Yes / Yes
-
Enhanced ARCYes
-
ALLM (Auto Low Latency Mode) Pass-Through for GamingYes
-
Variable Refresh Rate / Quick Frame TransportYes / Yes
-
HDMI Pass-Though in Standby ModeYes
-
DSD Audio CapabilityYes
-
Auto LipSyncYes

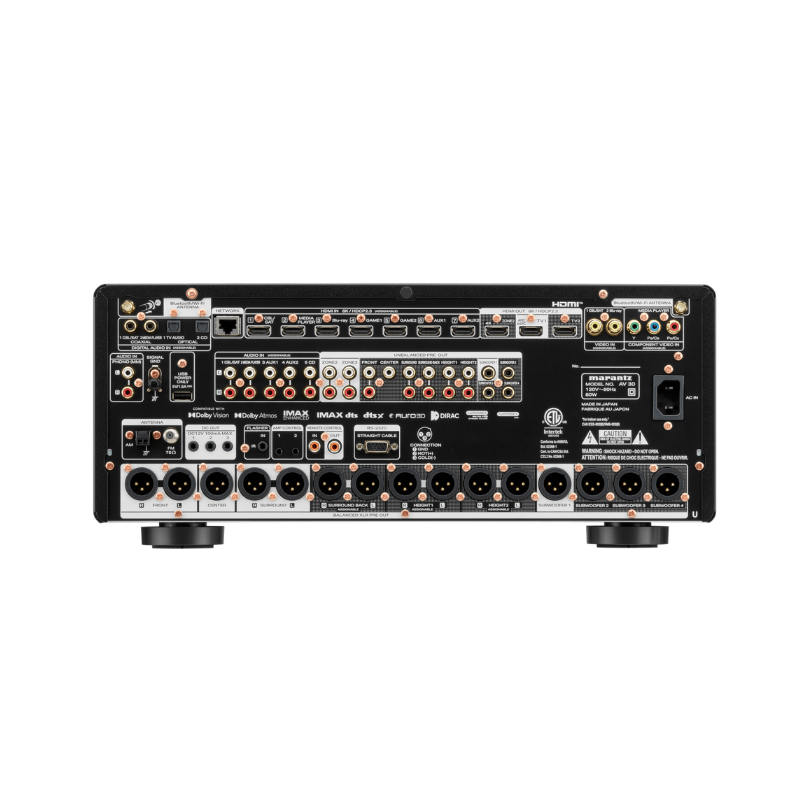

Inputs Outputs
-
Composite In / Out2 / 0
-
Component In / Out1 / 0
-
HDMI In / Out7 / 3
-
Multi-Room Video Out: Video / HDMINo / Yes
-
Analogue In6 (1x XLR)
-
Phono (MM) InYes
-
Digital In: Optical / Coaxial2 / 2
-
Multi-Room Out: analog / digital2 / 0
-
Multichannel Pre-Amp OutYes (11.4 RCA, 11.4 XLR)
-
Subwoofer Out4 (independent)
-
Speaker A / BAssignable Pre-Out
-
Bi-Amp DriveAssignable Pre-Out
-
Front USB Input / USB AudioYes / Yes
-
USB Power Supply (Rear)Yes
-
AM/FM TunerYes
Multi-Room CI
-
HEOS Multi-Room IntegratedYes
-
HEOS Link Compatibility: IR/ IPYes / Yes
-
Multi-Room Zones3
-
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogueYes (2 ch) / Yes (2 ch) / Yes / Yes
-
Zone Audio Output: Speaker / Pre-OutNo / Yes
-
Zone HDMI Output from HDMI SourceYes
-
IP Control / RS232 Control / Web Control / App ControlYes / Yes / Yes / Yes
-
IR Flasher In / Marantz Remote BusYes / Yes
-
DC Trigger Output3
-
HDMI DiagnosticsYes
Others
-
Auto Speaker Setup by MicrophoneAudyssey MultEQ XT32
Dirac Live (Upgrade)
-
Front Display2-Line FLD, Port Hole OLED
-
Graphic User InterfaceModern HD GUI
-
GUI Languages9
-
Setup Assistant / Smart SelectYes / Yes
-
Firmware Update by Network / USBYes / Yes
-
Variable Cross Over / Optimized Bass Redirection / Bass SyncYes / Yes / Yes
-
Auto Power Off / Sleep TimerYes / Yes
General
-
Metal Front PanelYes
-
System Remote ControlRC053SR
-
BacklitYes
-
Power Consumption80 W
-
Standby Consumption0.2 W
-
CEC Standby Consumption in W0.5 W
-
Network Standby Consumption2.0 W
-
Maximum Dimensions
Antenna: Horizontal:(W x D x H)
Antenna: Vertical :(W x D x H)
w/o Antenna: (W x D x H)
17.4 × 16.3 × 7.5 in.
17.4 × 16.3 × 10.0 in.
17.4 × 15.6 × 7.5 in.
-
Weight24.5 lbs.
-
What's in the boxMain unit, remote control,
batteries, AM/FM antennas,
wire labels, quick start guide,
Audyssey microphone, card
board microphone stand,
2 External Detachable Antenna,
AC cord
-
UPC Code747192143817
-
Limited Warranty (United States and Canada)5-year
