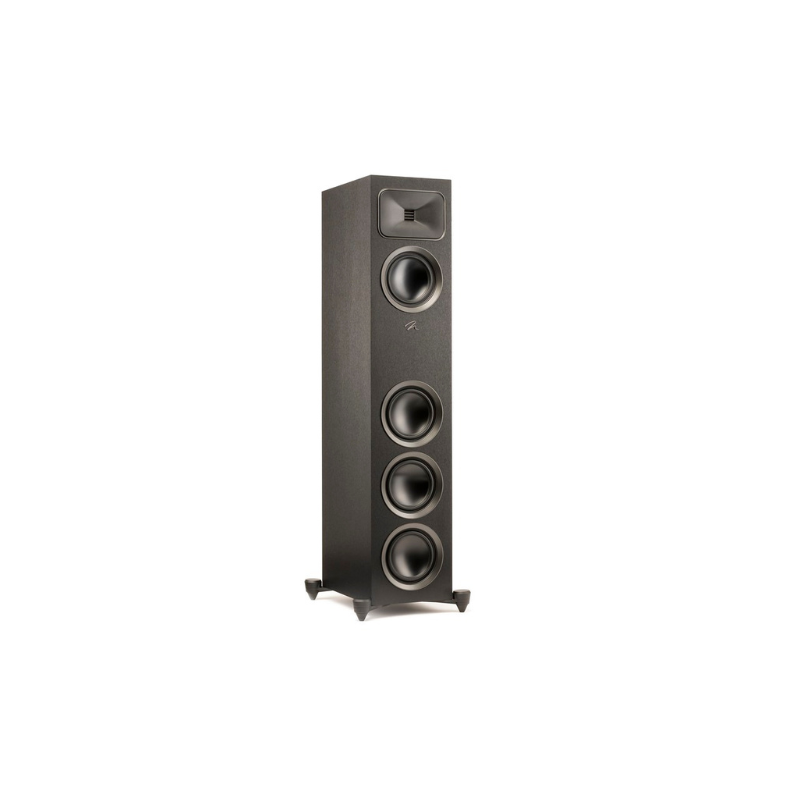

Martin Logan Motion Foundation F1 Floorstanding Speakers (Pair)

The Martin Logan Foundation Story
Martin Logan Foundation Series products redefine affordability by incorporating many of Martin Logan's renowned high-performance technologies at accessible prices.

Leveraging 40 years of design and engineering prowess and offering Martin Logan’s renowned thin-film performance, Motion® Foundation is a gateway into the world of true hi-fi sound. With a choice of 5 different models in 3 different finishes, Motion® Foundation speakers are an ideal foundation for building a high performance Stereo or Surround sound system. Bringing high end performance to a wider audience, Motion® Foundation offers incredible immersion for all your favourite content.

Legendary Martin Logan Sound
Martin Logan speakers are known for their exceptional articulation, detail and realism, regardless of the listening environment. By using advanced thin-film technologies and Controlled Dispersion, Martin Logan delivers a unique and unparalleled listening experience that is not commonly found in other speakers.

Gen2 Obsidian Folded Motion Tweeter S
The Gen2 FMT S offers effortless performance, unmatched by conventional technologies. By folding thin film material, Martin Logan is able to pack more surface area into a small space. Large surface area, light weight and low excursion means an incredibly fast and responsive tweeter capable of reproducing the most nuanced content with stunning detail and clarity.

Folded Motion® Waveguide
Enhances the Controlled Dispersion of the tweeter, blanketing the listening area with incredible detail and precision. Avoids performance robbing room reflections and provides a more consistent sound across a wider seating area.

Aluminium Midrange & Bass Drivers
Using trickle down technology from Martin Logan’s own Motion XT and Motion Series, the F1 uses the exceptional properties of Aluminium to maximize clarity, detail, and output from the midrange and bass drivers.

Modern Design Featuring Timeless Finishes
Motion® Foundation® models are available in 3 timeless finishes to compliment any décor: Walnut with Bronze trim, Black with Gunmetal trim, or Satin White with Silver trim.

Specifications:

• Dimensions (H x W x D, with feet): 41-7/16” x 8-3/8” x 14-7/16” (105.2cm x 21cm x 36.7cm)
• Frequency Response: 41 Hz - 23 kHz ± 3 dB
• Tweeter Dispersion (horizontal x vertical): 90° x 90°
• Recommended Amplifier Power: 15 - 200 watts
• Sensitivity: 92 dB
• Impedance: 4 ohms
• High Frequency Driver: 0.94” x 1” (2.4 x 2.5cm) Gen2 Folded Motion® Tweeter S with 3.5 in2 (22.6 cm2) diaphragm.
• Crossover Frequency: 240 Hz, 2,700 Hz (3-way)
• Mid-Frequency Drivers: 5.5” (14cm) aluminum cone with cast aluminum basket. Non-resonant sealed chamber format. Unibody cone construction.
• Low Frequency Driver: 3x 5.5” (14cm) aluminum cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction.
• Cabinet: Rear Ported
• Binding Post Inputs: 5-way Binding Posts (Non Bi-Wire)
• Weight: 46.5 lbs / 21.1 kg

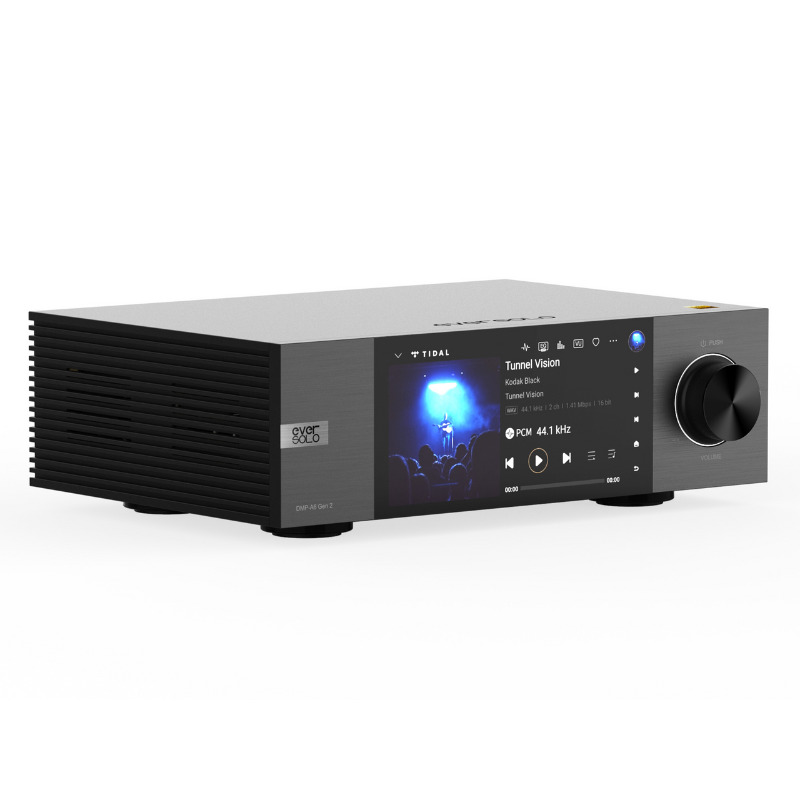

Eversolo DMP-A6 Gen 2 High-Fidelity Music Streamer with DAC (Each)

Hi-Fi Music Streamer That Combines
Exceptional Sound Quality With Futuristic Technology

The Eversolo DMP-A6 Gen 2 is a Hi-Fi streamer that seamlessly blends exceptional sound quality with cutting-edge technology. It is more than just an audio device; it is a new way to connect with the world of music. From hardware design to audio processing, every detail of the DMP-A6 Gen 2 has been meticulously crafted for audiophiles who seek the ultimate listening experience. It not only meets your listening needs but also transforms each musical journey into a marvelous artistic exploration.

Full-Aluminum Build
The unit is constructed from integrated aerospace-grade aluminum, processed with precise CNC techniques. The sturdy yet elegant aluminum appearance enhances durability while effectively shielding external interference, ensuring pure audio signal transmission. The refined matte texture adds a touch of luxury, transforming every interaction into an exquisite sensory experience.

Large Touchscreen
The large touch display combines convenience with beauty. High resolution makes playback information and controls clear at a glance. Whether browsing your music library or adjusting settings, everything is intuitive and smooth.

Ultra-Low Noise Audio Linear Power Supply
The newly upgraded linear power supply operates with a noise level below 40uV, delivering a cleaner and more stable power source for the audio circuit.

Fully Balanced Circuit Architecture
The fully balanced design from decoding to output, paired with XLR balanced and RCA unbalanced interfaces, delivers lower distortion and a greater dynamic range. Whether connecting power amplifiers or an active speaker, the DMP-A6 Gen 2 ensures more detailed and accurate sound expression.

Dual ES9038Q2M High-Fidelity DAC Chips
Two high-performance DAC chips independently process the left and right channels, providing amazing dynamic range and detailed resolution. Even complex symphonies are clearly rendered, faithfully reproducing the soundstage and atmosphere of the live recording.

Third-Generation XMOS XU316 Audio Interface
The upgraded XMOS chip offers significantly enhanced processing power, supporting DSD512 Native and PCM 768kHz@32Bit decoding, ensuring high-resolution audio is delivered in its native quality, making every note rich and captivating.

Low-Jitter Dual Clock Synchronization Management
High-precision clock oscillators, combined with optimized algorithms, minimize jitter to the lowest levels, ensuring stability and purity of audio performance.

Eversolo Self-Developed EOS Audio Engine
The innovative audio processing engine bypasses SRC limitations, providing original high-fidelity sound quality. Whether playing local music or streaming from third-party apps (like Apple Music), it ensures the best resolution playback.

EVC Output Engine
The EVC engine uses a unique volume adjustment algorithm to precisely eliminate errors at different gain levels, ensuring that while adjusting the volume, the signal shape remains unchanged, thus providing the back-end DAC with more complete audio information.

Supports Various Master Formats
The DMP-A6 Gen 2 supports a wide range of high-fidelity music formats, including DSD, MQA, FLAC, APE, and WAV, meeting the diverse needs of hi-res audio enthusiasts. From classical to electronic, you can always experience music that’s as pure as the original master recording.

Create Your Personalized Music Library
The DMP-A6 Gen 2 not only boasts powerful playback and decoding capabilities but also supports cross-platform addition of music files from local drives or network storage. It automatically categorizes and displays information such as artists, composers, albums, genre, sample rate and so on, while also supporting functions like quick searches, creating a dedicated music library just for you(music files need to contain ID3 metadata).

Rich Streaming Music Services
With deep system integration, easily access Eversolo’s customized TIDAL, Qobuz, Highresaudio, Presto Music, Radio Paradise, and other mainstream streaming services. Satisfy all your musical exploration needs and manage your library effortlessly. Support for numerous third party APPs, high resolution audio Direct output using the original EOS engine.

Cross-service Hybrid Play Queues and Playlists
With multiple integrated music services, you can easily customize your own cross-service hybrid playlists and queues. Whether it’s cherished tracks from different platforms or a blend of various music styles, the DMP-A6 Gen 2 can smoothly integrate them all.

Roon Ready & Tidal Connect
Seamlessly supports Roon and TIDAL Connect, integrating your digital music ecosystem and optimizing streaming experience. With just a tap on the screen or through a mobile app, you can easily switch devices and immerse yourself in music anytime.

10-Band EQ with Pro-Level Customization
Featuring a professional equalizer, users can tailor the settings and parameters to their personal preferences. It offers precise EQ gain adjustments and fine-tuned volume balancing for the left and right channels.

4GB DDR Memory + 32GB eMMC Storage
Large memory ensures stable multitasking, while 32GB of internal storage is perfect for holding high-quality audio files and system resources.

Quad-Core ARM Cortex-A55 Processor
The powerful quad-core processor provides strong performance support, making decoding, operation, and multitasking smooth. Whether loading large files or processing high-spec audio streams, it handles them all effortlessly.

HDMI ARC
HDMI ARC allows direct transmission of TV audio to the DMP-A6 Gen 2.

HDMI Multi-Channel Output
Supports DSD Native and up to 5.1 channel output, combining music and home theater for a thrilling surround sound experience.

Bluetooth 5.0 Module
With the Qualcomm QCC5125 chip, it offers low latency, high-quality transmission, and supports SBC and AAC codecs, ensuring perfect connectivity between your mobile device and player.

SPECIFICATIONS

Model
EVERSOLO DMP-A6 Gen 2

Display
6-inch LCD Touchscreen

Internal Memory
4GDDR4 +32G eMMC

DAC
ES 9038Q2M*2

Audio Processor
XMOS XU316

Op-amp Chip
OPA1642

Power Supply
Low Noise, High-Quality Linear Power Supply

Built-in SSD Slot
M.2 NVME 3.0 2280 Interface Protocol, Supports up to 4TB

USB-A Ports
USB3.0*2

Ethernet
RJ-45 (10/100/1000Mbps)

Wireless Network
WiFi 2.4G+5G Dual-Band

Music Playback and DAC Decoding
Supports up to Stereo DSD512, PCM 768KHz 32Bit, MQA Format

Music Services
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio Paradise, Deezer, SoundCloud, Presto Music, Apple Music*…

Network Protocol
WebDAV, UPnP, NFS, SMB, Onedrive, Drop box, emby, Plex…

Streaming
Roon Ready, DLNA, TIDAL Connect…

Control Methods
Mobile App Control, Touchscreen Control, Tablet App Control,TRIGGER OUT,WOL

Bluetooth Audio Input
Bluetooth BT5.0, Supports SBC/AAC

USB-B Audio Input
USB Audio Compatibility: Windows (10, 11), Mac, Android, iOS Supports up to Stereo DSD512, PCM 768KHz 32Bit, MQA Format

Optical/Coaxial Audio Input
Supports up to Stereo PCM 192KHz 24Bit, Dop64, MQA Format

HDMI ARC Input
Supports up to Stereo PCM 192KHz/24Bit

USB Audio Output
Supports up to Stereo DSD512 Native, PCM 768KHz 32Bit, MQA Format

HDMI Audio Output
DSD64 Native multichannel/PCM 192KHz multichannel raw output,up to 5.1

Optical/Coaxial Audio Output
Supports up to Stereo PCM 192KHz 24Bit, Dop64, MQA Format

Analog Audio Output
Pre-output: XLR (Balanced) + RCA(UnBalanced)

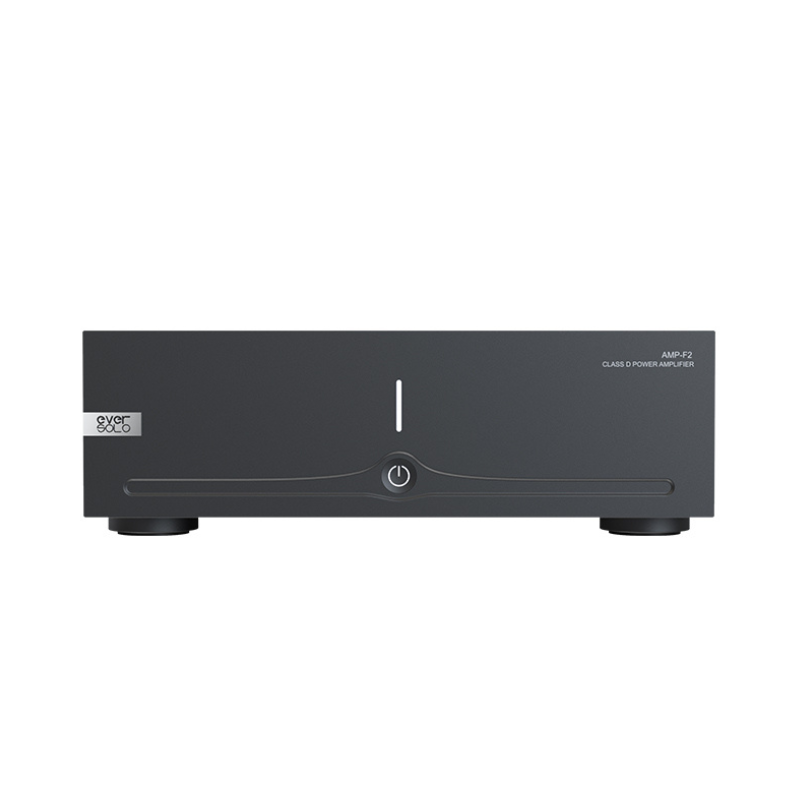

EverSolo AMP-F2 Audio Power Amplifier (Each)
