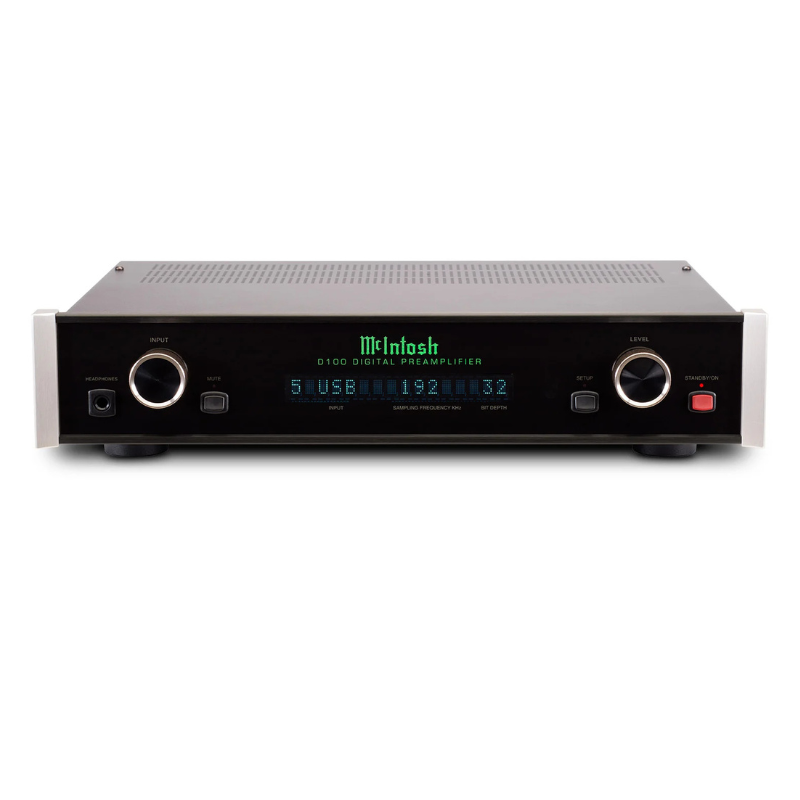

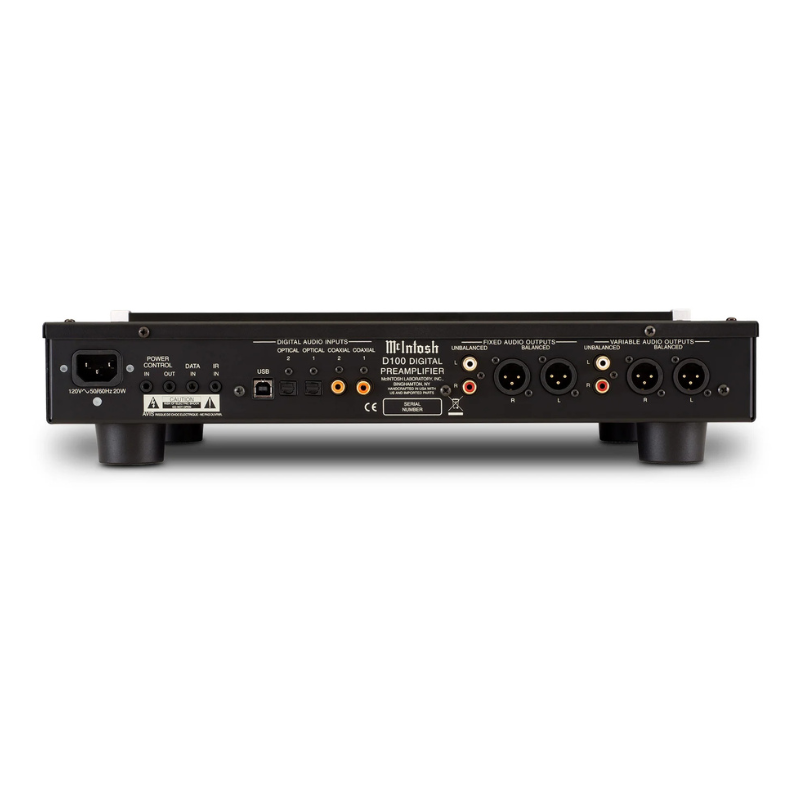

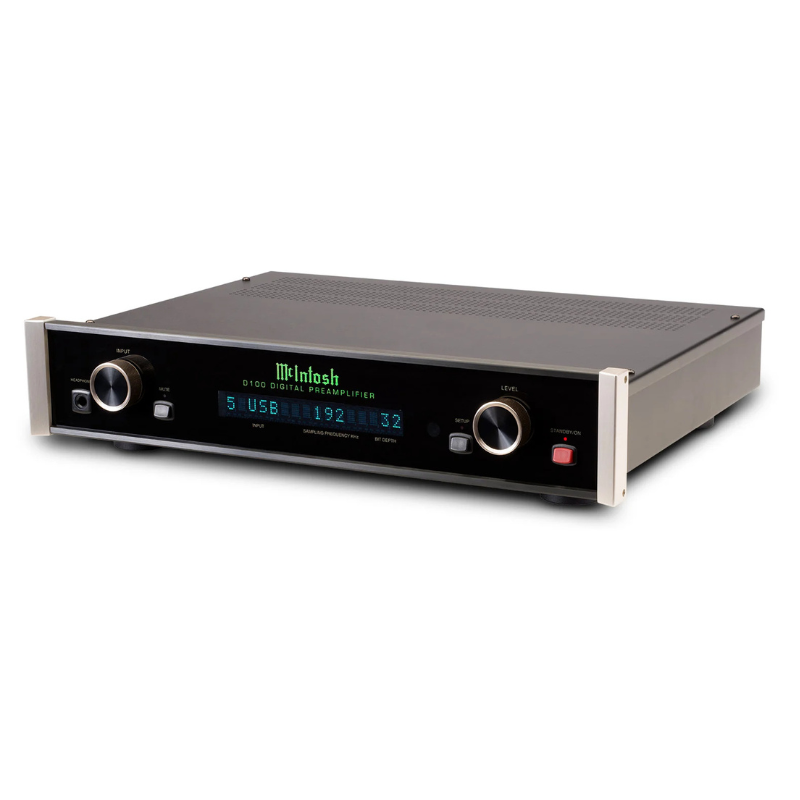

The D100 is a remote controlled digital stereo preamplifier with five digital inputs and both variable and fixed volume audio output. It is a simple solution to add digital music to your existing McIntosh system.

The D100 is also flexible enough to be used as a headphone amplifier. Just connect your digital sources and a pair of headphones for a personal listening experience.

 Advanced Quad Balanced, Digital-to-Analog circuitry is capable of handling the finest commercial recordings, assuring the best sound from your valuable music collection.

 D100’s powerful built-in headphone amplifier will elevate the sound of your headphones to deliver the ultimate personal listening experience.

Specifications

Frequency Response

• ±0.5 dB from 4 Hz to 20 kHz

• +0.5 / -3 dB from 4 Hz to 68 kHz (source dependent)

Total Harmonic Distortion

• 0.0015%

Rated Output Voltage

• Fixed:

  • 2.0 Vrms (Unbalanced)

  • 4.0 Vrms (Balanced)

• Variable:

  • 0–8 Vrms (Unbalanced)

  • 0–16 Vrms (Balanced)

Headphone Load Impedance

• 20 to 600 Ohms

Dimensions (W × H × D)

• 17-1/2” (44.54 cm) × 3-7/8” (9.8 cm) × 16” (40.64 cm)
  (Includes front panel, knobs, and cables)

Weight

• Net: 13.5 lbs (6.1 kg)

• Shipping: 28 lbs (12.7 kg)
