Description

McIntosh patented and gold-plated Solid Cinch™ speaker binding posts assure the best connection to all speaker cables, while high quality balanced and unbalanced input connectors enhance signal transfer from the connected preamplifier.

The seven small tubes are LED illuminated to indicate the amplifiers functional status: upon power up, they sequentially glow amber for a few seconds and then all turn green to signify system readiness. In the rare case of an output tube failure, the small tubes in front of it will turn red to notify you of the problem. Power Control is used to remotely control tube illumination from a McIntosh.

SPECIFICATIONS

ELECTRONIC SPECIFICATIONS

Power Output per Channel – 75W @ 4, 8 or 16 Ohms

Number of Channels – 2

Total Harmonic Distortion – 0.5%

S/N below rated output – 105dB

Dynamic Headroom – 1.2dB

Damping Factor – >22

Rated Power Band – 20Hz to 20kHz

Frequency Response

  • +0, -0.5dB from 20Hz to 20,000Hz
  • +0, -3.0dB from 10Hz to 100,000Hz

CONTROL

Remote Power Control – Yes, input and output

Multi-Channel DB25 Cable – N/A

GENERAL SPECIFICATIONS

Circuit Configuration – Unity Coupled

Circuit Design – Vacuum Tube

Mono Bridge – No

Mono Parallel – Yes, 150W @ 2, 4 or 8 Ohms

Output Type – Unity Coupled Output Transformer

Meters – No

Meter Light Switch – Small signal tubes LEDs controlled by McIntosh preamp

Balanced Input – Yes

Front Panel – N/A

Illumination – Small Signal Tubes, LED

Chassis Style – Polished Stainless Steel

CONNECTIVITY

Speaker Binding Post Type – Patented Solid Cinch™ Speaker Binding Posts

WEIGHTS & DIMENSIONS

Dimensions W x H x D – 21-1/2" 54.6cm including cables x 8-1/2" 21.6cm including feet x 12" 30.5cm

Weight – 67 lbs 30.5 kg

Shipping Weight – 75 lbs 34.1 kg

MCINTOSH-MC275 -PO

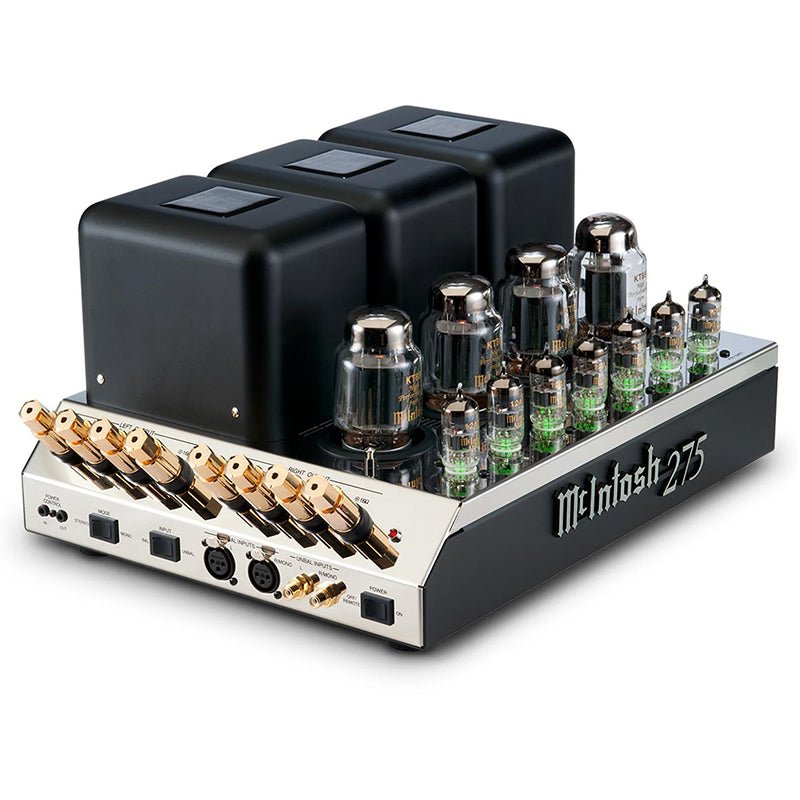

McIntosh MC275 - 2-Channel Vacuum Tube Amplifier 75W/ch | Pre-Owned

Sale price R 79,990.00
Regular price R 155,990.00You saved 48% OFF

This tube power amplifier has all the features to meet the needs of today’s music enthusiast, while preserving the qualities that have made the MC275 the most revered McIntosh tube amplifier.

This sixth generation MC275 has many subtle enhancements from the previous release that greatly imp Read more

Lucky you 🤩 Only 1 left in stock! Buy now.

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Merchant West Epiphany Finance
Description

McIntosh patented and gold-plated Solid Cinch™ speaker binding posts assure the best connection to all speaker cables, while high quality balanced and unbalanced input connectors enhance signal transfer from the connected preamplifier.

The seven small tubes are LED illuminated to indicate the amplifiers functional status: upon power up, they sequentially glow amber for a few seconds and then all turn green to signify system readiness. In the rare case of an output tube failure, the small tubes in front of it will turn red to notify you of the problem. Power Control is used to remotely control tube illumination from a McIntosh.

SPECIFICATIONS

ELECTRONIC SPECIFICATIONS

Power Output per Channel – 75W @ 4, 8 or 16 Ohms

Number of Channels – 2

Total Harmonic Distortion – 0.5%

S/N below rated output – 105dB

Dynamic Headroom – 1.2dB

Damping Factor – >22

Rated Power Band – 20Hz to 20kHz

Frequency Response

  • +0, -0.5dB from 20Hz to 20,000Hz
  • +0, -3.0dB from 10Hz to 100,000Hz

CONTROL

Remote Power Control – Yes, input and output

Multi-Channel DB25 Cable – N/A

GENERAL SPECIFICATIONS

Circuit Configuration – Unity Coupled

Circuit Design – Vacuum Tube

Mono Bridge – No

Mono Parallel – Yes, 150W @ 2, 4 or 8 Ohms

Output Type – Unity Coupled Output Transformer

Meters – No

Meter Light Switch – Small signal tubes LEDs controlled by McIntosh preamp

Balanced Input – Yes

Front Panel – N/A

Illumination – Small Signal Tubes, LED

Chassis Style – Polished Stainless Steel

CONNECTIVITY

Speaker Binding Post Type – Patented Solid Cinch™ Speaker Binding Posts

WEIGHTS & DIMENSIONS

Dimensions W x H x D – 21-1/2" 54.6cm including cables x 8-1/2" 21.6cm including feet x 12" 30.5cm

Weight – 67 lbs 30.5 kg

Shipping Weight – 75 lbs 34.1 kg
