McIntosh MEN220 Room Correction System

Regular price R 143,990.00
  • Works on 1/12 Octaves
  • 2-Way Electronic Crossover for Bi-amping


McIntosh MEN220 Room Correction System
Ask a Question

Backed by Merchant West, E-piphany's E-Credit offers finance on orders with a minimum value of R50 000. Learn More.

Merchant West Epiphany Finance

Product information

Warranty & Support
Manufacturer’s warranty can be requested from customer service. Click here to make a request to customer service.

Would you like to tell us about a lower price? Please click here to provide feedback.

Product Specifications
Please refer to the below table for the most important specifications. You can also view the product description below the table for more details. Always feel free to contact our expert consultants by clicking here to find any additional information or to ensure that this product will work for you.

Product Description

The MEN220 delivers a potent suite of Room Correction, Custom-EQ, and 2-Way Crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining all the features can reveal a level of clarity and resolution unattainable by any other means.

"I have never heard my speakers sound so wonderful!" - Michael customer review

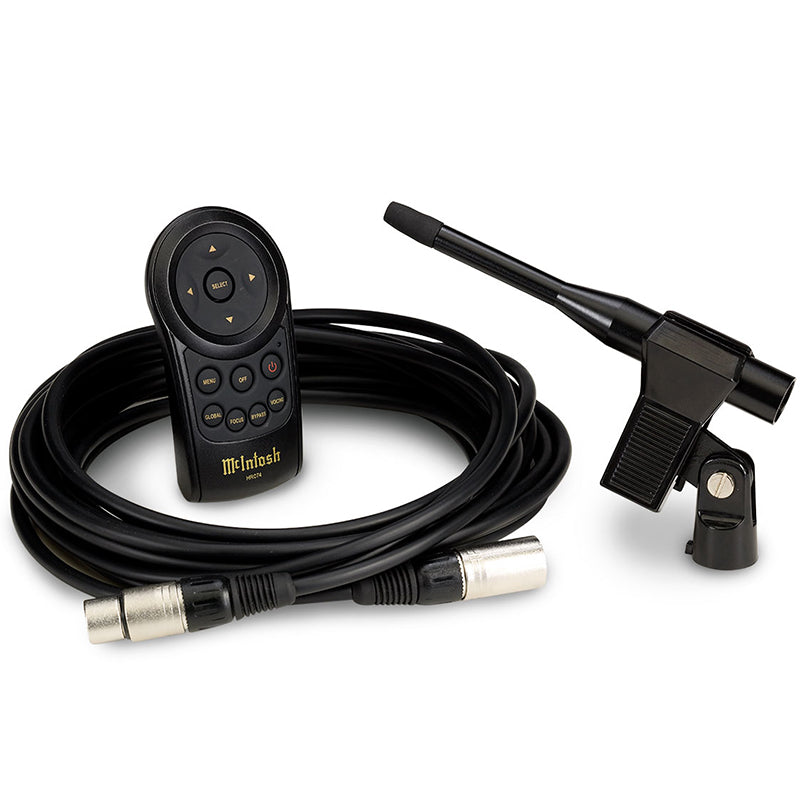

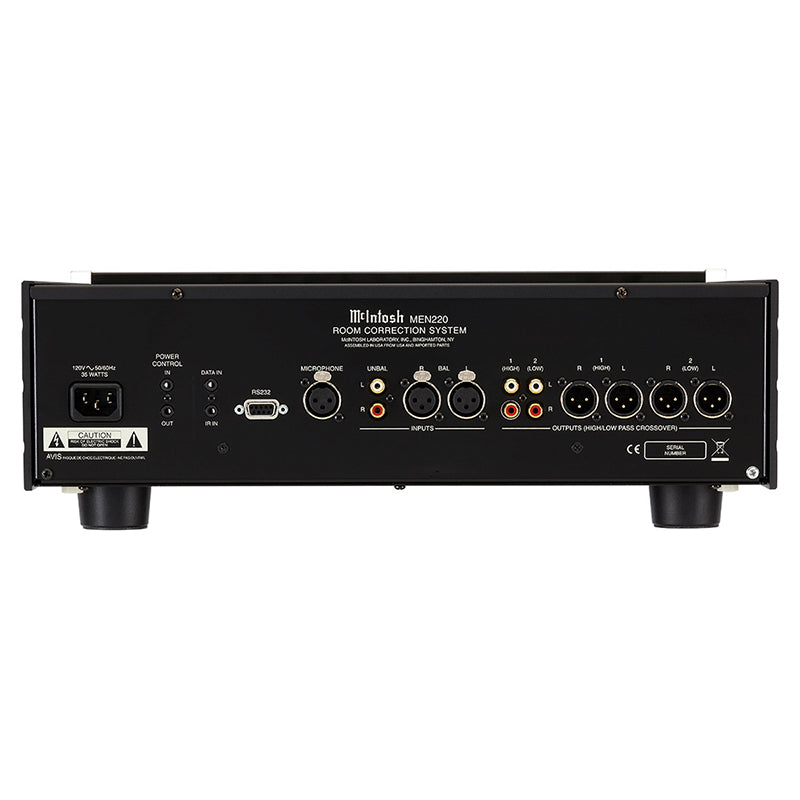

Full system control and PC link are provided via RS232 while McIntosh data, power control, and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported; a hand-held, IR remote control is included. Contact your local dealer to learn more.


Electronic Specifications

Unless noted, the following were taken with RoomPerfect set to Bypass Mode and Voicing Mode set to Neutral.

  • Frequency Response: +0, -0.5dB from 20Hz to 20,000Hz
  • Total Harmonic Distortion: 0.002% from 20Hz to 20,000Hz
  • Maximum Input Voltage:
    4.5V Unbalanced and Balanced (Preamp-Power Amp)
    2.25V Unbalanced and Balanced (Processor Loop)
  • Maximum Output Voltage:
    4.5V Unbalanced and Balanced (Preamp-Power Amp)
    2.25V Unbalanced and Balanced (Processor Loop)
  • Signal To Noise Ratio (A-Weighted): 100dB
  • Input Impedance: 10K ohms Unbalanced and Balanced
  • Voltage Gain: 0dB
  • Output Impedance: 50 ohms
  • Crossover Filter Types, Order and Slope:
    Butterworth, 1st order, 6 dB/octave
    Butterworth, 2nd order, 12 dB/octave
    Butterworth, 4th order, 24 dB/octave
    Linkwitz-Riley, 2nd order, 12 dB/octave
    Linkwitz-Riley, 4th order, 24 dB/octave
    Linkwitz-Riley, 8th order, 48 dB/octave

Weights & Dimensions

  • Dimensions (W x H x D): 17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs and cables)
  • Weight: 25.5 lbs (11.6 kg)
  • Shipping Weight: 41.9 lbs (19 kg)
