- Belt drive
- Moving Coil cartridge
- Illuminated speed meter

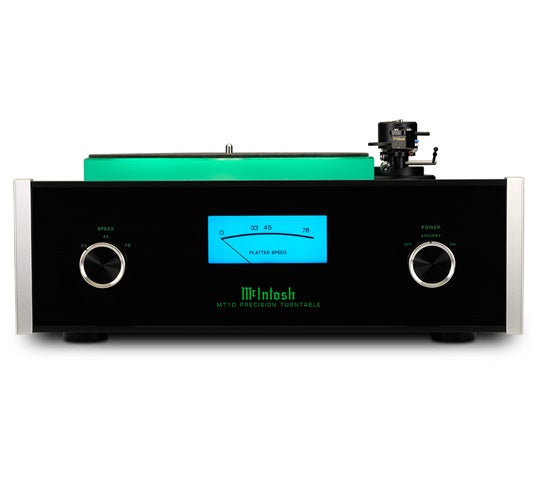

With tracking force, anti-skate, and cartridge position preset at the factory, the McIntosh MT10 Precision Turntable delivers high-performance LP playback with minimal setup. A custom tonearm features a rigid, dural-aluminum arm-tube gimbaled in two sapphires (horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV moving coil cartridge is included and features an ebony body with an elliptical stylus. Enjoy a new level of music with the MT10 turntable.
SPECIFICATIONS
Cartridge Specifications
Cartridge Type - Moving Coil, Low Output
Output Level - 0.5 mV at 5 cm/s
Load Impedance - 400 to 500 Ohms recommended
Frequency Response - 20Hz to 50kHz
Channel Separation - Greater than 30dB at 1Khz
Compliance - 6 x 10-6 cm/dyne
Recommended Tracking Force - 2.4 g
Channel Difference - Less than 0.3dB at 1kHz
Total Mass - 11 g
Stylus - Elliptical Diamond
Cantilever Material - Aluminum
Tonearm Specifications
Bearing - Sapphire and Ceramic
Arm Tube - Dural-Aluminum
Counterweight - Eccentric
Adjustments - Vertical Tracking Angle, Antiskate, Azimuth
Turntable Specifications
Playback Speeds - 33-1/3, 45 and 78 rpm
Motor Type - DC Brushless
Speed Control - Electronic w/ braking feature
Platter - Silicon Acrylic
Platter Bearing - Magnetic Suspended Ceramic
Signal To Noise Ratio - 41dB - 44dB
Wow & Flutter - 0.10% - 0.15%
Connectivity
Stereo Outputs Unbalanced - 1
Control
Power Control Input - 1
Power Control Output - 1
Platter Light - Yes
Speed Control Fine Adjustment - Yes
General Specifications
Dust Cover Included - No
Weights & Dimensions
Dimensions (W x H x D) -
17-1/2" (44.45cm) x 8-13/16" (22.38cm) x 21" (53.34cm)
Note: Tone Arm Height will vary depending on the type of Cartridge installed.
Weight - 42 lbs (19 kg)
Shipping Weight – 63 lbs (28.6 kg)
