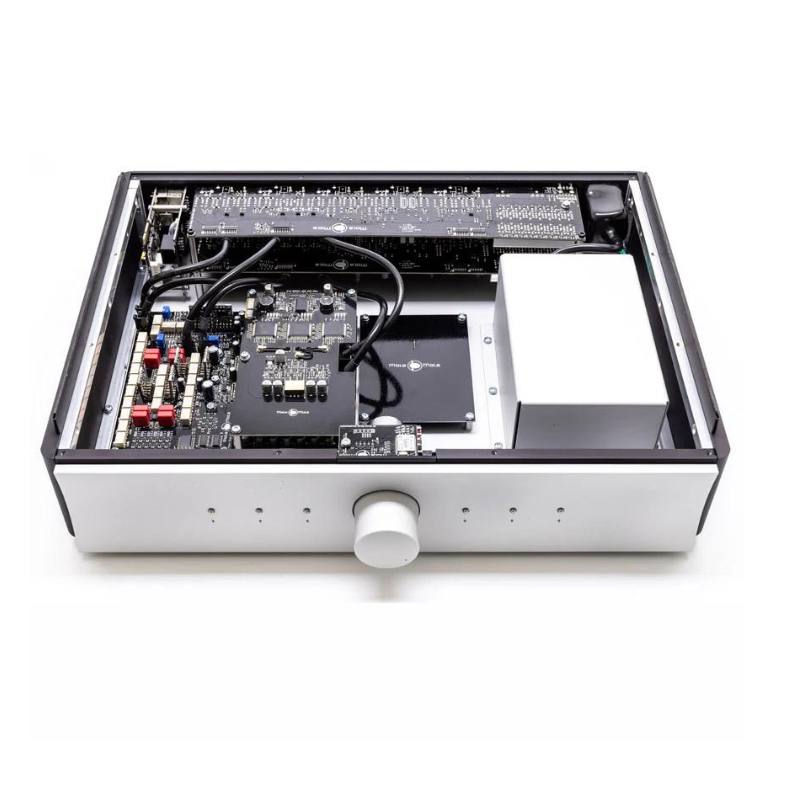

The chassis has ample room to fit optional extras, most notably a DAC and a phono stage. The 6 preset buttons are programmable via RS232 or Bluetooth to access any combination of channel, processing and routing. In a system with mainly digital sources, the preset buttons would be programmed to select between them. Vinyl lovers on the other hand might want to use several buttons to select the same turntable but with different EQ settings to suit their large collection of historic LP's.

All five inputs are switchable between XLR and floating RCA connections, and all can be assigned as either phono or line. All stages in the Makua use discrete amplifier modules in a little known topology called "single-ended driven differential". Compared to doubly executed signal paths, this structure prevents noise from propagating all the way through. The Makua is amazingly immune to influences like mains quality and choice of interlinks. The relay-based volume control directly controls the gain of the output stage. Dynamic range and linearity of this arrangement is much greater than those of stepped attenuators. Operation is smooth and entirely glitch free.

Specifications

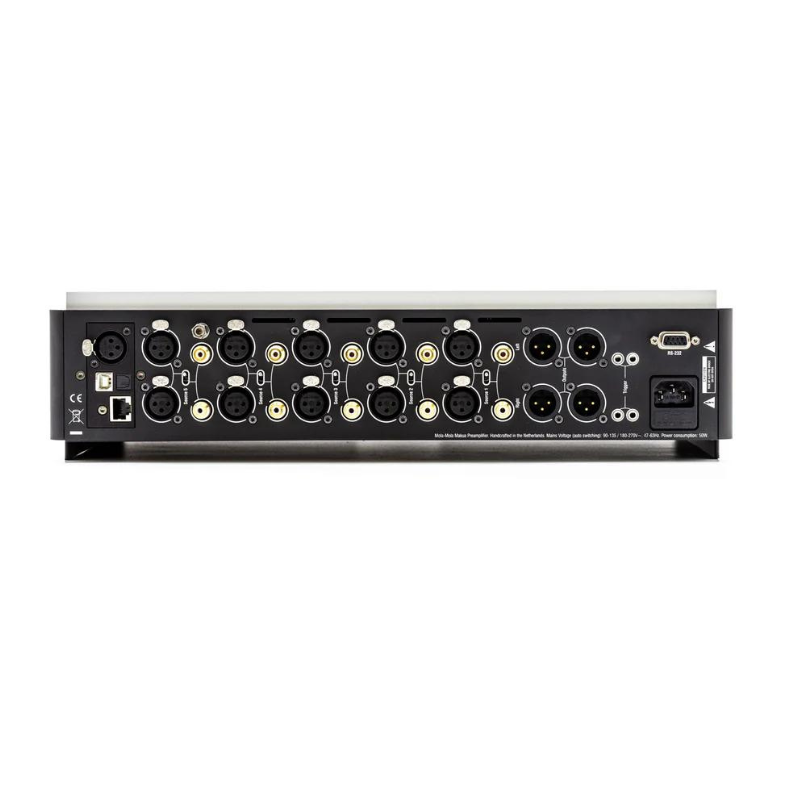

I/O:

• Inputs:
  • 5 Balanced Inputs (Selectable via switch and software)
  • 5 Unbalanced Inputs (Selectable via switch and software)
• Outputs:
  • 2 Parallel Balanced Outputs for Bi-Amping (XLR)
• Trigger Outputs:
  • 4 Programmable Trigger Outputs (3.5mm Jack)
• Additional Features:
  • Mastering Mode
  • All Inputs Routable Through Optional Processor Boards (e.g., Phono Stage)
  • Processing Balance and Input Gain Offset
  • Phase Invert and Mono Sum
  • Full Software Control of Routing and Processing

Performance:

• Maximum Input/Output Level: 20 dBu (7.75 Vrms)
• Unweighted Noise Voltage at Unity Gain: 1.9 µV
• Input Impedance: 100 kΩ
• Output Impedance: 44 Ω
• Distortion at Maximum Signal Level (THD, IMD): Not measurable, estimated around -150 dB
• Bandwidth: >200 kHz
• Gain Range: -70 dB to +15 dB
• Gain Resolution: <1 dB, better than 0.2 dB over normal listening range

Control:

• Programmable Presets: 6
• Remote Control: Premium Remote Control Included
• App Control: Mola Mola Remote App
• RS232 (SUB-D) Interface

Add-On Options:

• Mola Mola Phono Stage
• Mola Mola DAC

Dimensions and Weight:

• Dimensions: 420 mm (W) x 110 mm (H) x 345 mm (D) (Depth includes volume knob and connectors)
• Weight: 11 kg
