The Gold 500 6G is the flagship model of the new Gold Series 6G. It represents the highest-levels of performance and system design at the price point, and within this competitive market segment. Designed to house the latest MPD III high-frequency transducer alongside the new 3-inch mid-driver and powerful twin 8-inch bass drivers, each of which benefit from the latest HDT, C-CAM cone technology and hugely powerful motor systems. The Gold 500 6G is a worthy flagship for such a prestigious range; a formidable acoustic treat for the ears as well as the eyes.
Key Features
- Three-way design
- 1 x MPD III high-frequency transducer
- 1 x 3-inch mid-driver featuring HDT, C-CAM cone technology
- Steel mid-pod enclosure with die-cast aluminium baffle
- 2 x 8-inch bass drivers featuring HDT, C-CAM cone technology
- New crossover design utilising carefully selected high-quality capacitors

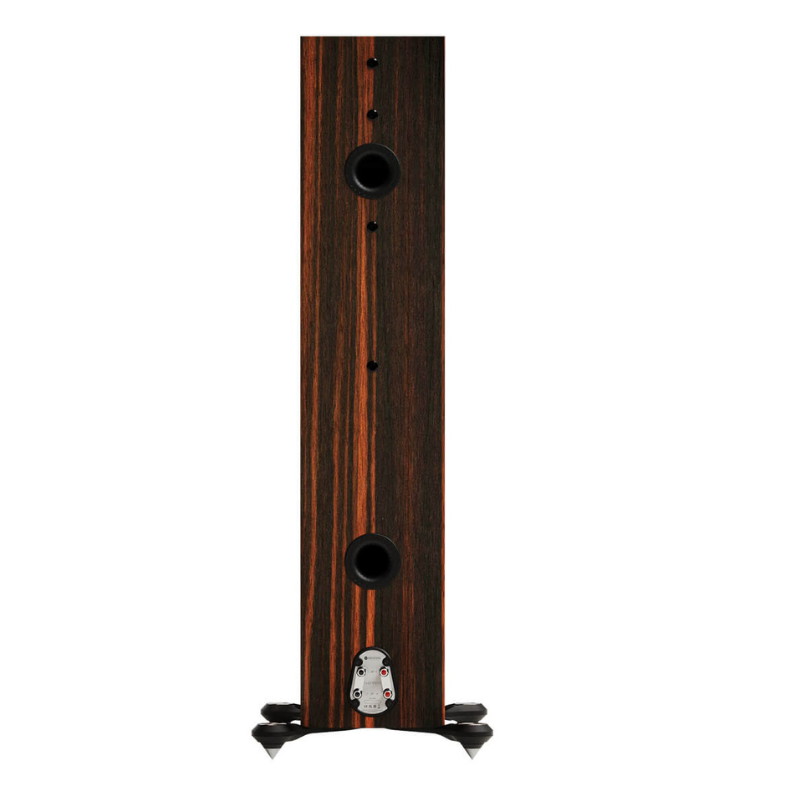

- Ported cabinet design using HiVe II port technology and through-bolt technology
- All-new cast aluminium outriggers and plinth/spike assembly featuring a new steel plate for greater structural integrity and improved stability

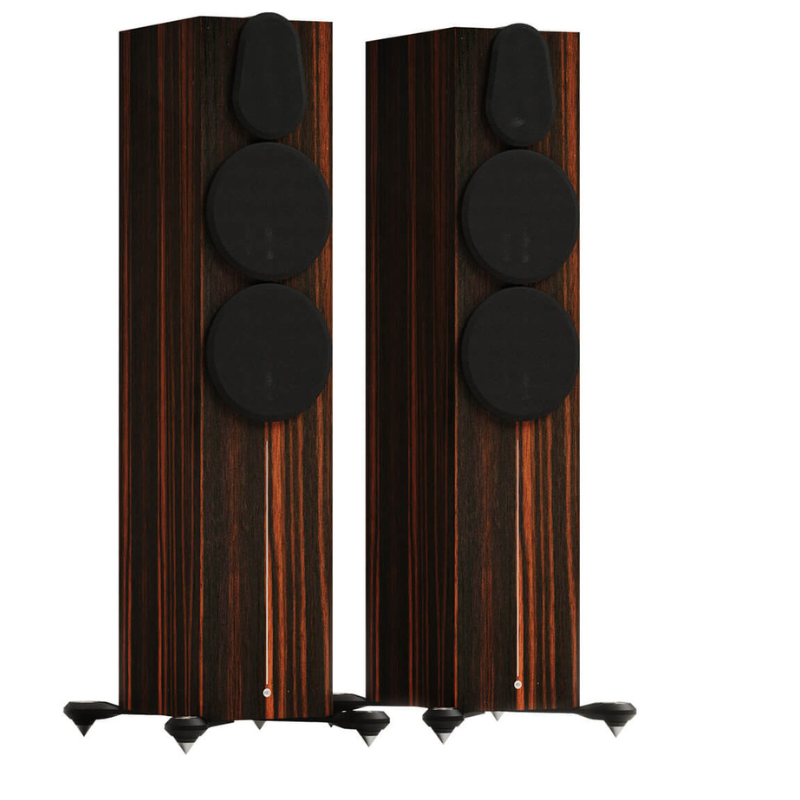

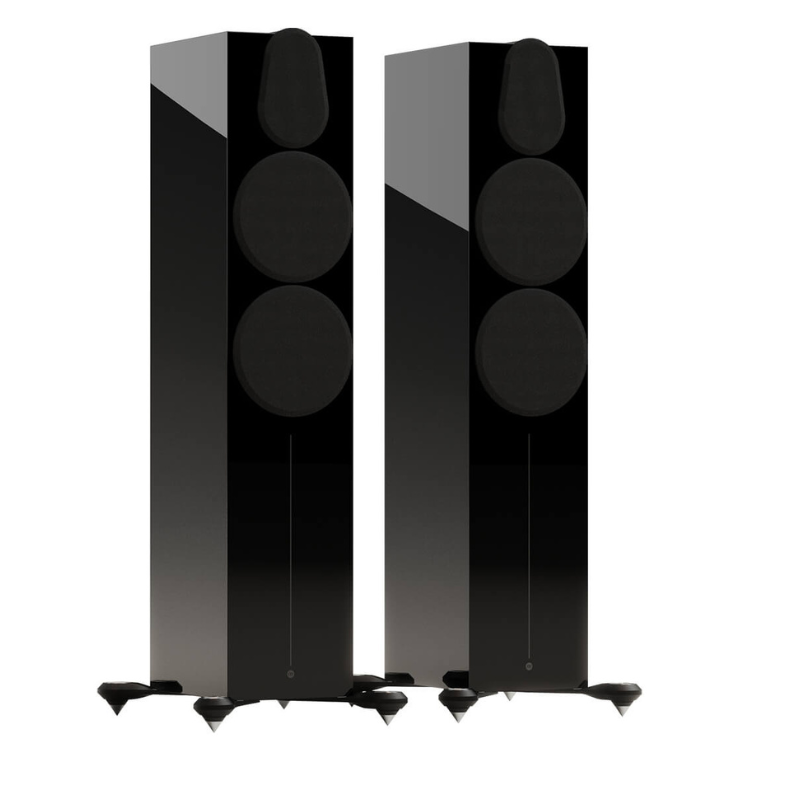

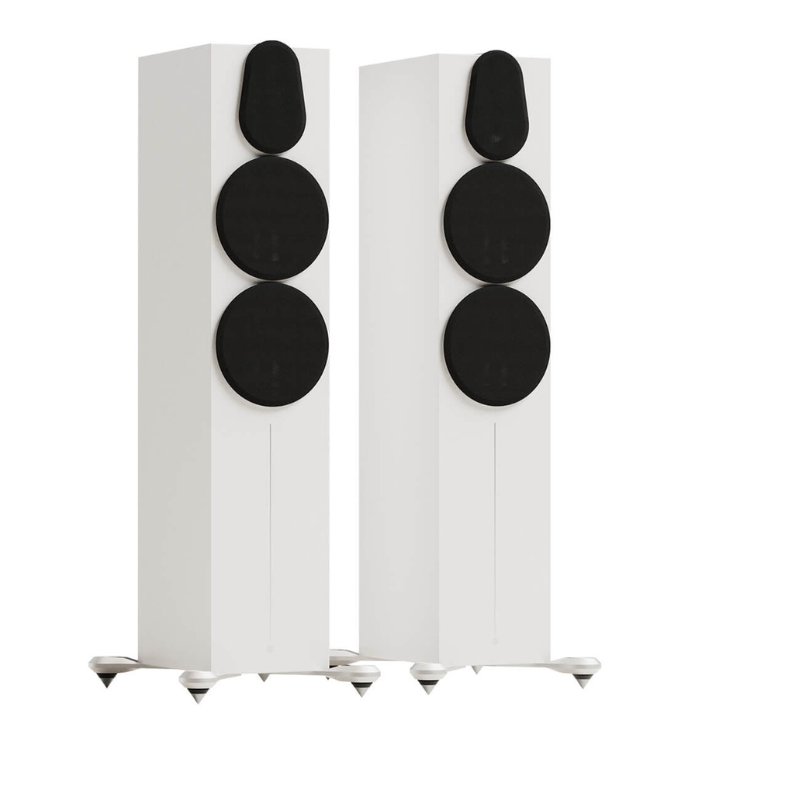

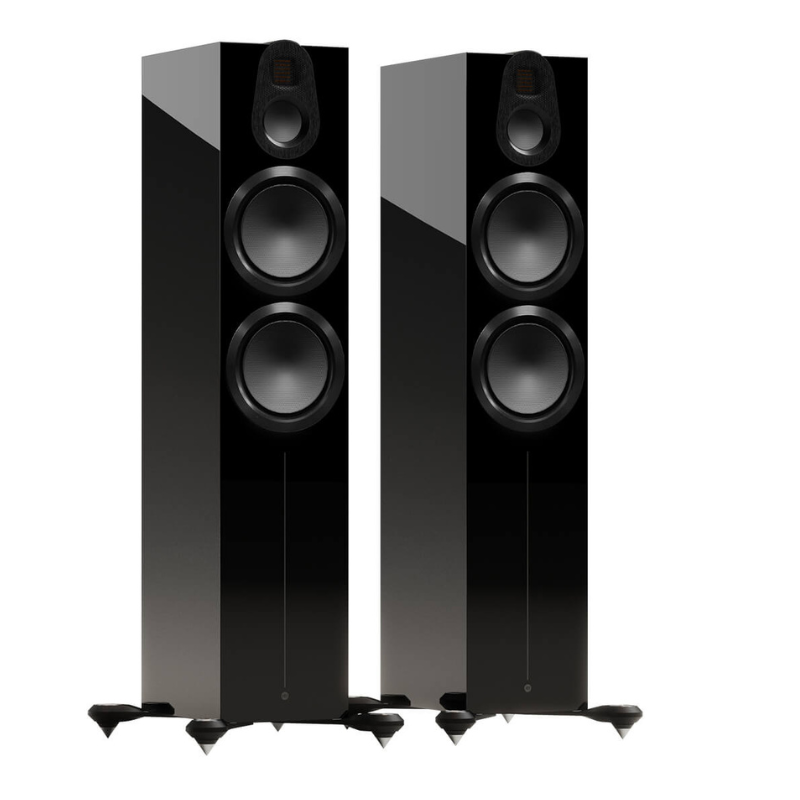

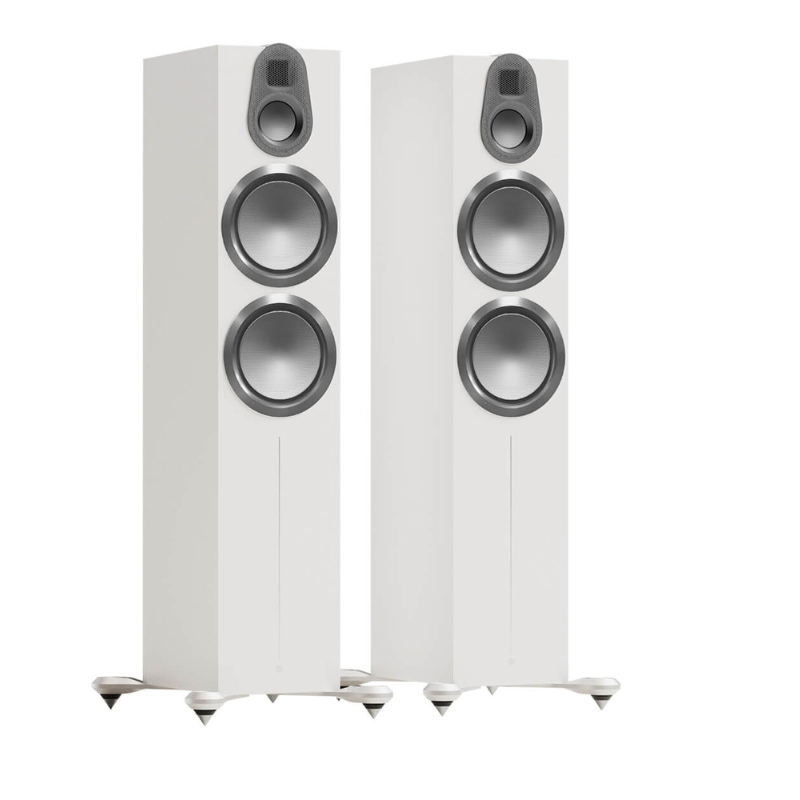

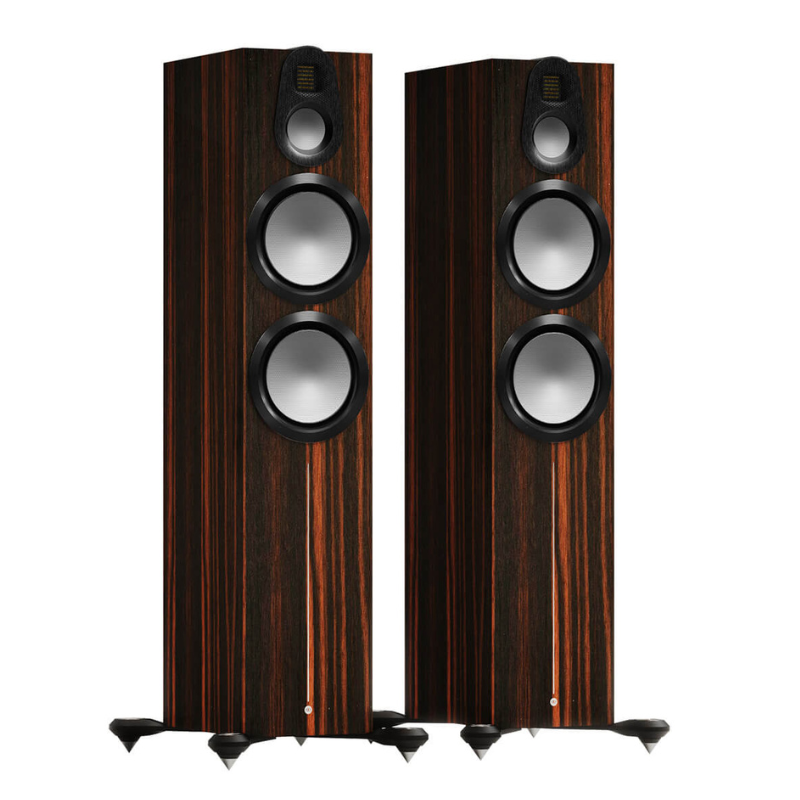

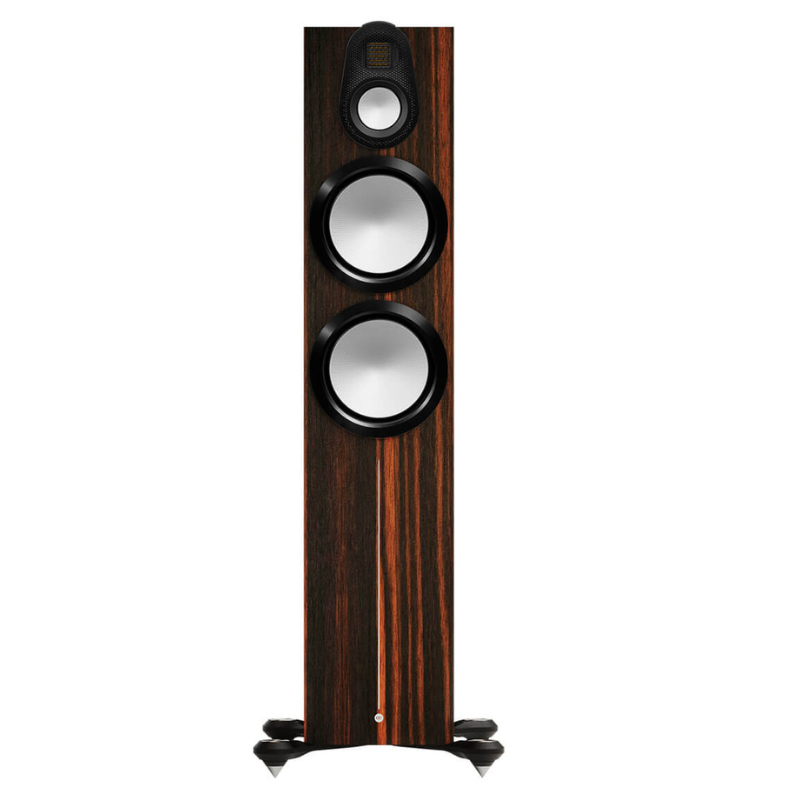

- Finishes available: Macassar wood veneer, High-Gloss Black and Satin White
- Individual driver ‘Magnetic grilles’ included
Specifications
System Format: 3-way
Sensitivity:
- (2.83v @ 1m, Free-Field): 88.5 dB
Recommended Amplifier Power:
- 130 – 600 W (RMS into 4 Ohm, Music Signal)
Continuous Power Handling:
- 300 W (CTA 426-B)
Nominal Impedance:
- 4 Ohms
Minimum Impedance:
- 4 Ohms @ 150 Hz
Drive Units:
- 2 x 8” (203 mm) HDT C-CAM Bass Drivers
- 1 x 3” (76 mm) HDT C-CAM Mid-Range Driver
- 1 x MPD III Tweeter
Frequency Response:
- Free-Field (-6dB): 44 Hz – 60 kHz
- In-Room (-6dB): 25 Hz – 60 kHz
Maximum Peak SPL:
- 122 dB (AES75, Z-weighted)
Bass Alignment:
- HiVe II Ported
Port Tuning Frequency:
- 33 Hz
Crossover Frequencies:
- LF/MF: 700 Hz
- MF/HF: 2.6 kHz
Dimensions:
- H: 1155 mm (45 1/2”)
- W: 383 mm (15 1/16”)
- D: 475 mm (18 11/16”)
Weight:
- 26.5 kg (58 lb 7 oz) each
Sold As: Pair
