True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation.
Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
SPECIFICATIONS
Frequency Response
45 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
150 W
Recommended Amplifier Requirements
30 – 120 W

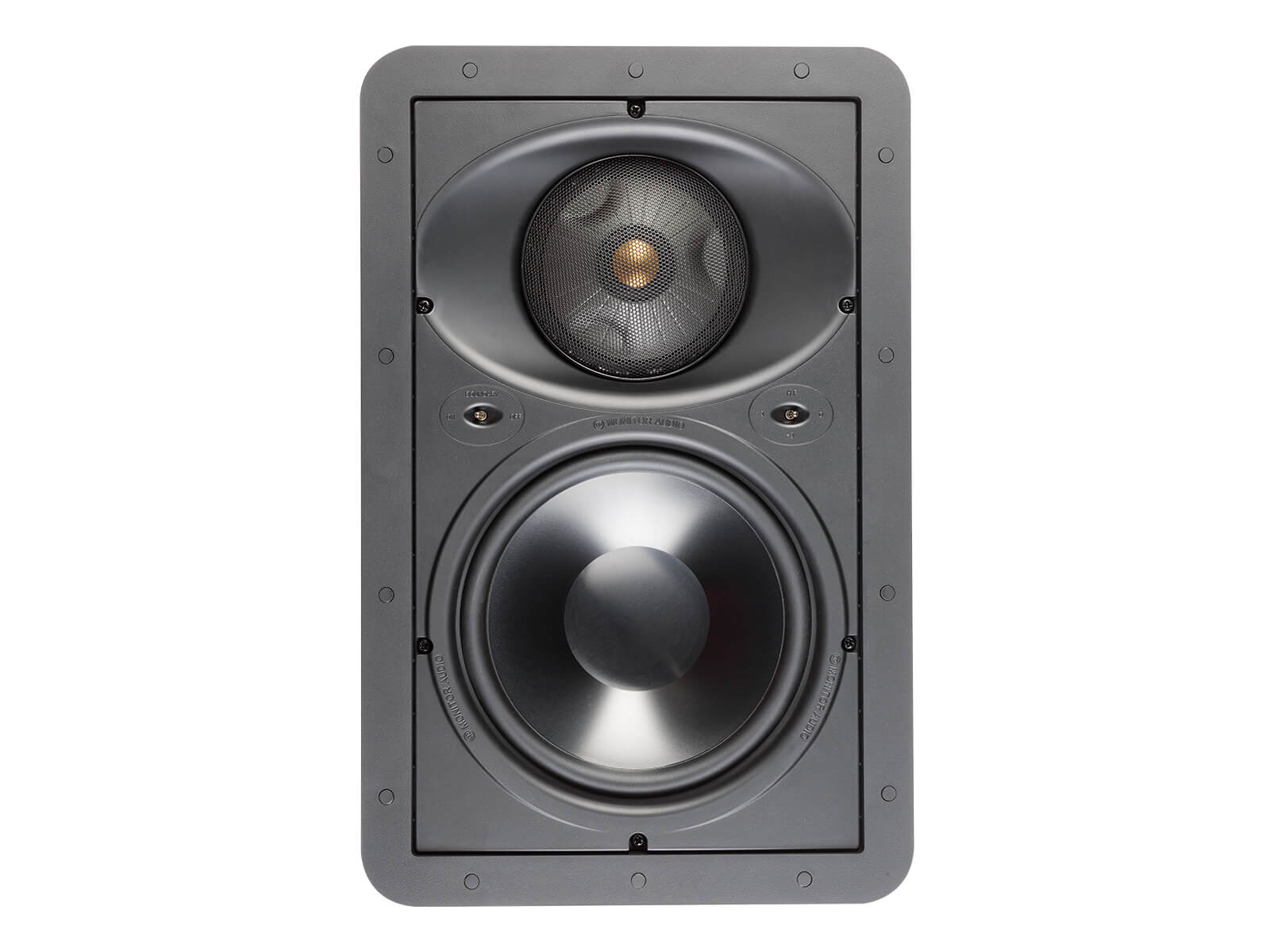

Drive Unit Complement

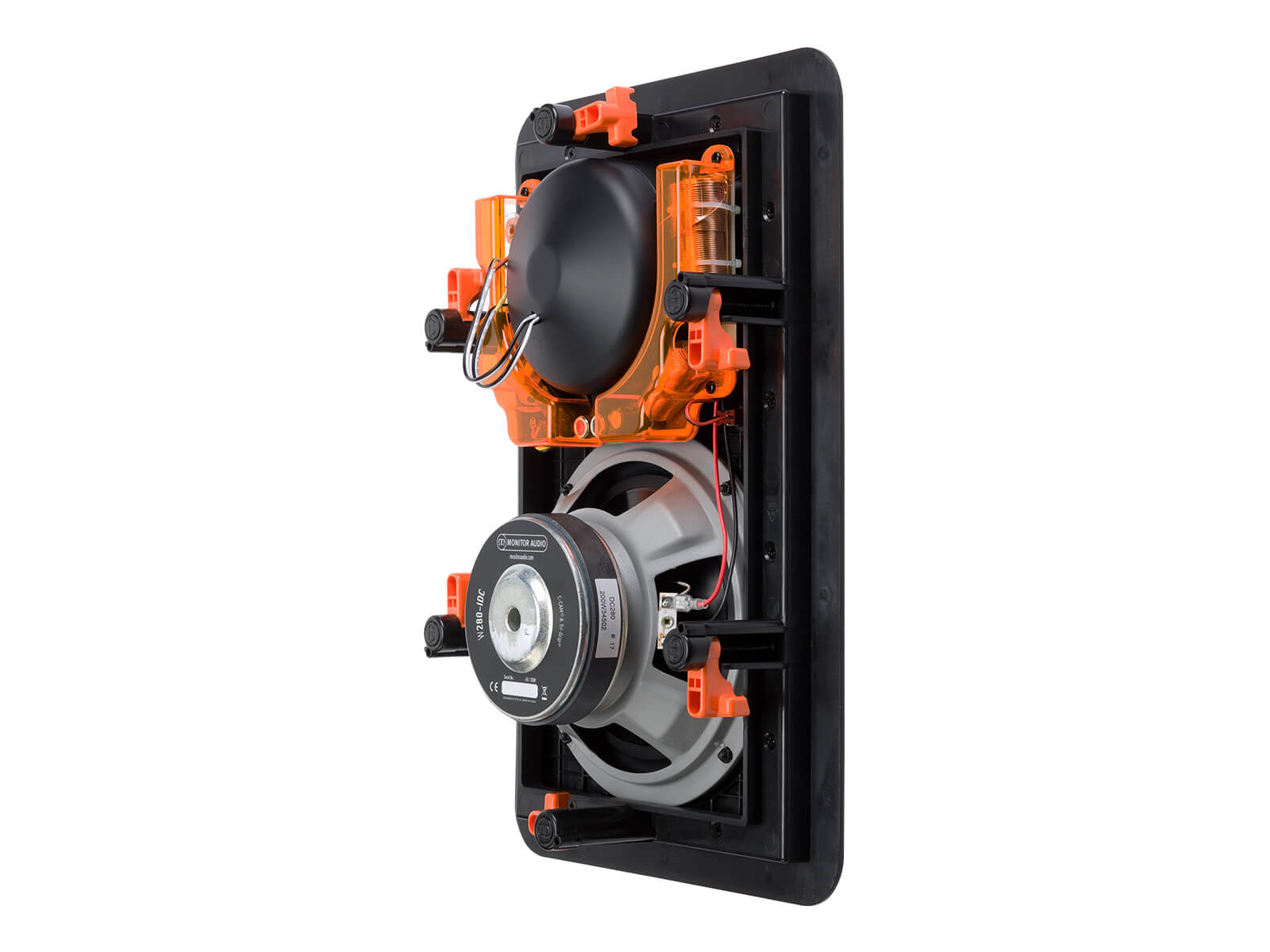

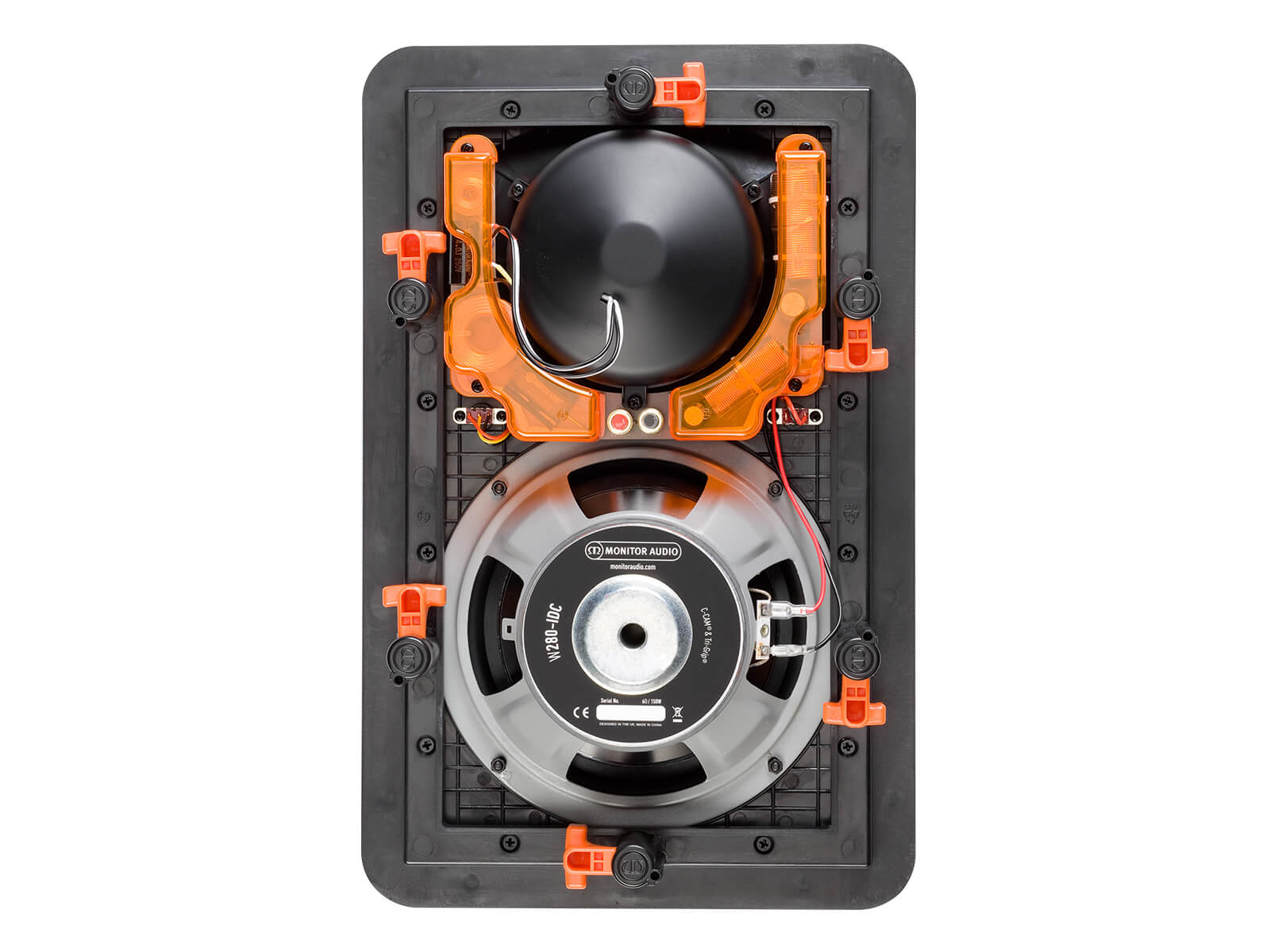

8" C-CAM cone bass driver, pivoting IDC module housing:
4" C-CAM RST inverted mid range driver

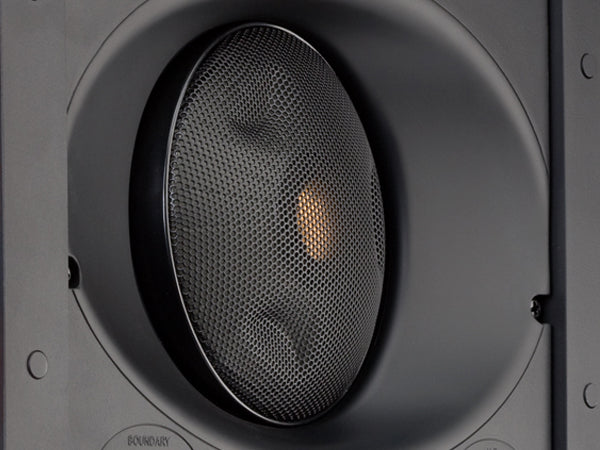

1" C-CAM Gold Dome Tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
441 x 288 mm (173/8 x 115/16")
Overall Depth (Including Grille)
104 mm (41/8")
Mounting Depth
100 mm (315/16")
Cut-Out Hole Diameter
387 x 234 mm (151/4" x 93/16")
Fixing Type
6 position Trip-Grip dog fixings
Construction Material
A mineral filled ABS, RoHS compliant
Weight
3.6 kg (7 lb 14 oz)
Pre-Construction Bracket
WB8 Pre-Construction
Bracket (Green)
Back Box
WCBOX-L
Sold As
Single Unit
