Technology
- The included bracket allows for forwarding and backward adjustment plus a 22.5º tilt upwards and downwards for optimum setup.
- Can be used vertically or horizontally, as a centre or surround channel

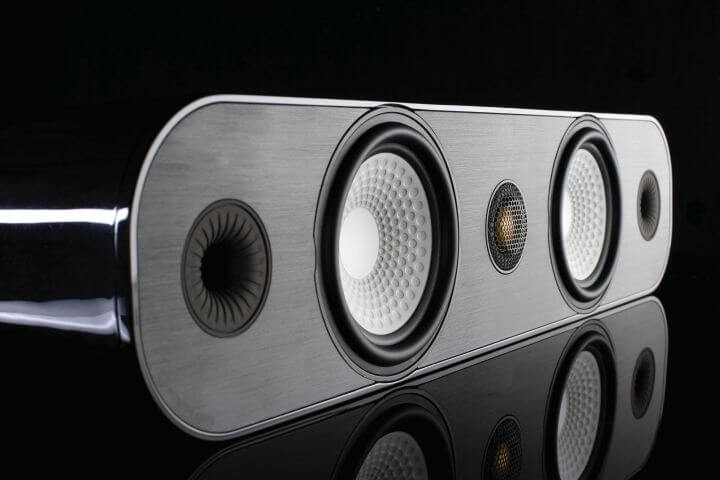

- 2 x 51/2" C-CAM mid/bass driver with RST technology
- 1" Gold C-CAM Tweeter
- HiVe II port technology delivers smoother airflow for better transient response and tighter bass

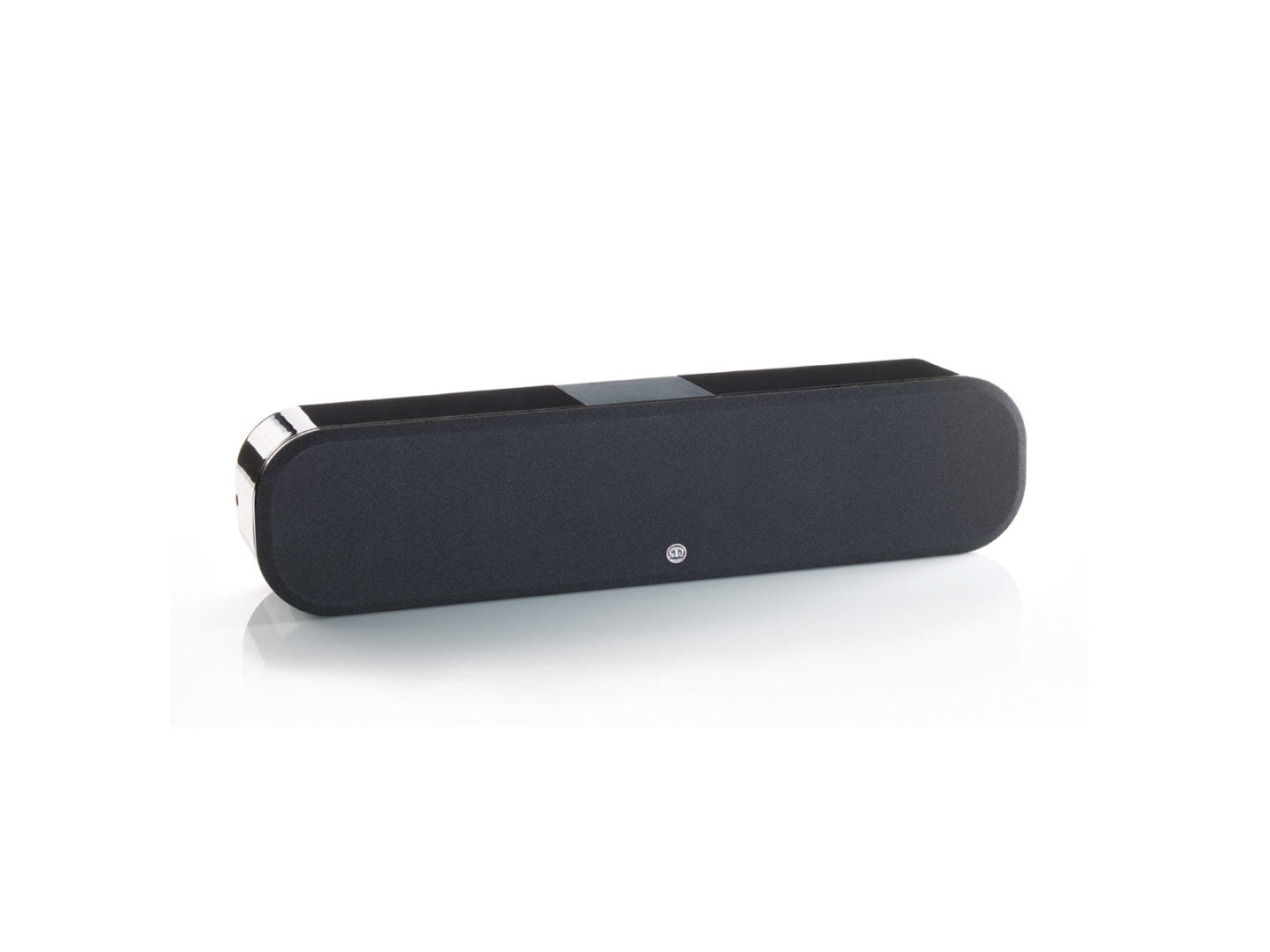

- Magnetic Grilles; for the sleekest effect there are no visible fixings
- Rigid die-cast alloy cabinet

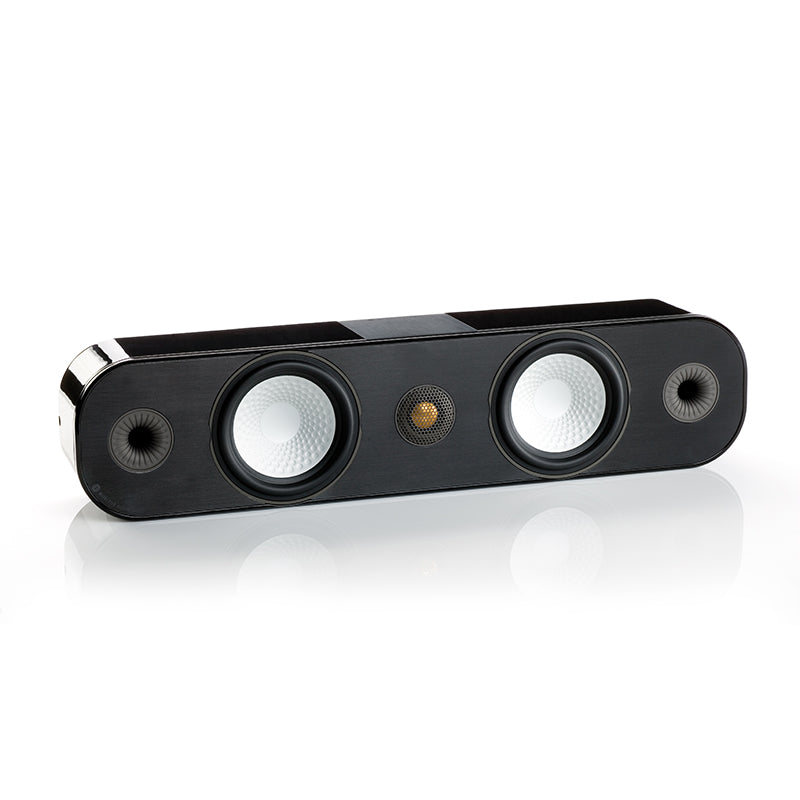

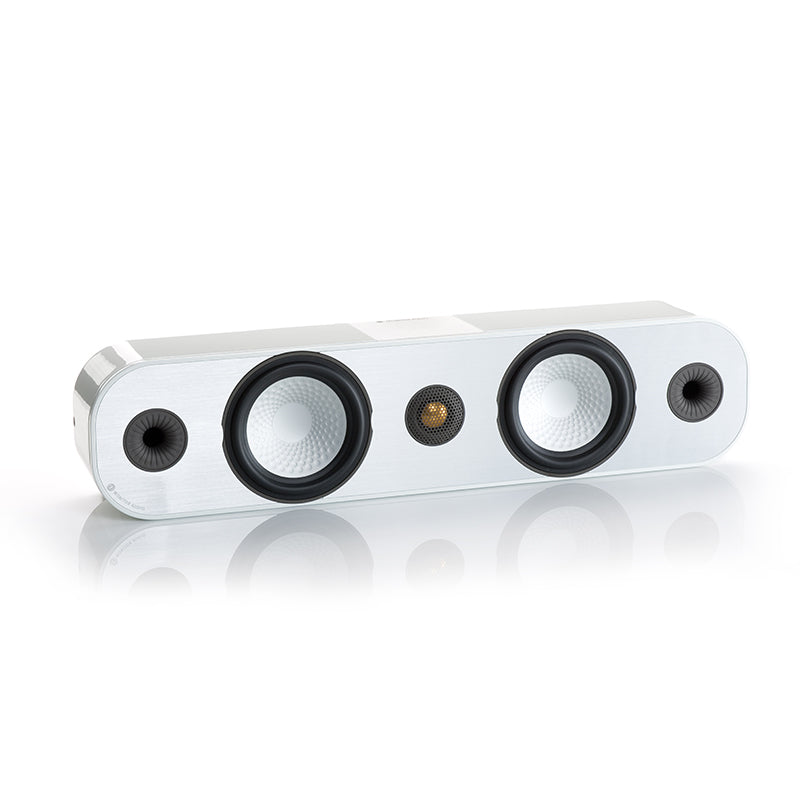

- Finished in luxurious metallic black high gloss or metallic pearl white high gloss
SPECIFICATIONS
Frequency Response
50 Hz — 35 kHz
Sensitivity (1W@1M)
90 dB
Drive Unit Complement
2 x 140 mm (51/2") C-CAM mid/bass driver with RST technology.
1 x 25 mm (1") C-CAM Gold Dome tweeter.
Nominal Impedance
8 ohms
Maximum SPL
116.8 dBA
Recommended Amplifier Requirements
50 — 200 W
Bass Alignment
Bass reflex - twin front-mounted Dual HiVe II ports
Power Handling (RMS)
200 W
Crossover Frequency
600 Hz & 3.0 kHz
External Dimensions (H x W x D)
610 x 140 x 100 mm (24 x 51/2 x 315/16")
Weight (each)
6.85 kg (15 lb 2 oz)
Sold As
Single Unit
