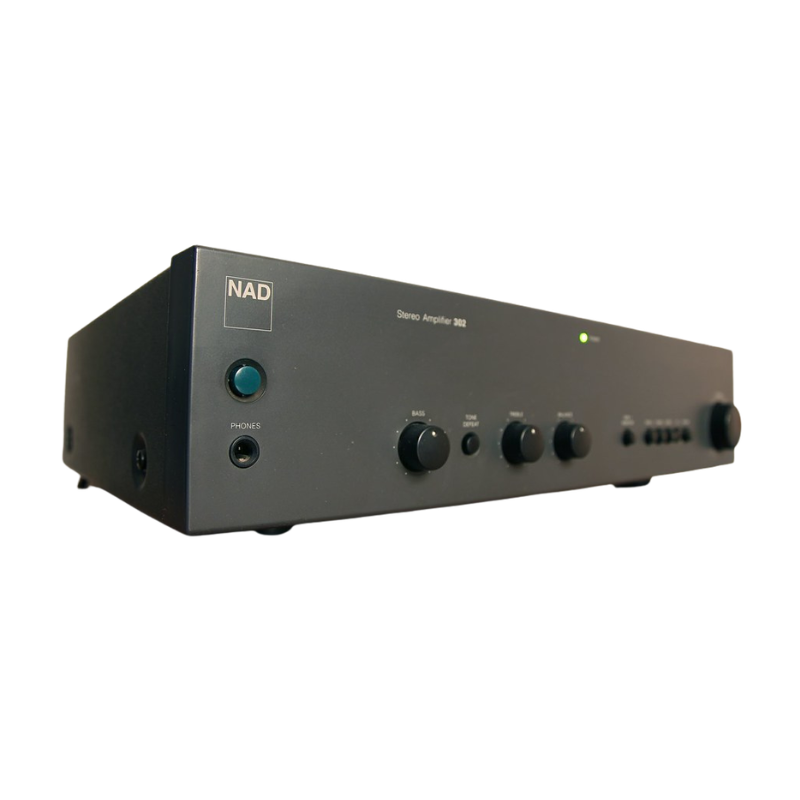

NAD 302 stereo integrated amplifier (Each)

Description

Description

The NAD 302 is a highly regarded stereo integrated amplifier that combines NAD’s straightforward design philosophy with impressive real-world performance. Rated at 25 watts per channel into 8 ohms, the NAD 302 is conservatively specified while offering strong dynamic performance when required.

It features a built-in moving-magnet phono stage, making it an excellent choice for vinyl enthusiasts, alongside dedicated inputs for CD, tuner, video and tape sources. A Tone Defeat function allows the tone-control circuitry to be bypassed for a more direct signal path.

The amplifier also includes separate preamplifier and power-amplifier sections, pre-out and main-in connections, a headphone output and robust speaker connections. Its combination of versatility, simplicity and strong musical performance makes the NAD 302 an excellent choice for a classic two-channel stereo system.

Specifications

Product Type: Stereo Integrated Amplifier
Power Output: 25 W per channel into 8 Ω
Clipping Power: 40 W
Dynamic Power: 50 W per channel into 8 Ω
Dynamic Power: 60 W per channel into 4 Ω
Dynamic Power: 75 W per channel into 2 Ω

THD: <0.03% (20 Hz – 20 kHz)
Damping Factor: >60 (8 Ω, 50 Hz)
Frequency Response: 20 Hz – 20 kHz, ±0.3 dB
Signal-to-Noise Ratio: 102 dB (ref. 1 W); 116 dB (rated power)

Inputs:

Phono MM
CD
Tuner
Video
Tape
Main-In

Phono Input Sensitivity: 2.7 mV
Line Input Sensitivity: 165 mV
Phono Input Impedance: 47 kΩ / 200 pF
Line Input Impedance: 20 kΩ / 500 pF

Outputs:

Pre-Out
Tape Out
Headphone Output

Tone Controls:

Bass: ±10 dB at 50 Hz
Treble: ±7 dB at 10 kHz
Tone Defeat: Yes

Dimensions (W × H × D): 420 × 108 × 320 mm
Net Weight: 6.0 kg
Shipping Weight: 7.4 kg
Remote Control: No
Manufactured: 1993–1996

NAD302 - PO

NAD 302 stereo integrated amplifier (Each) | Pre-Owned

R 1,999.00

The NAD 302 is a compact and capable stereo integrated amplifier designed to deliver clean, detailed and musical sound. With 25 watts per channel and NAD’s renowned high-current design, it offers impressive performance and excellent control, making it an ideal choice for a quality two-channel system Read more

Quantity

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Description

THD: <0.03% (20 Hz – 20 kHz)
Damping Factor: >60 (8 Ω, 50 Hz)
Frequency Response: 20 Hz – 20 kHz, ±0.3 dB
Signal-to-Noise Ratio: 102 dB (ref. 1 W); 116 dB (rated power)

Inputs:

Phono MM
CD
Tuner
Video
Tape
Main-In

Phono Input Sensitivity: 2.7 mV
Line Input Sensitivity: 165 mV
Phono Input Impedance: 47 kΩ / 200 pF
Line Input Impedance: 20 kΩ / 500 pF

Outputs:

Pre-Out
Tape Out
Headphone Output

Tone Controls:

Bass: ±10 dB at 50 Hz
Treble: ±7 dB at 10 kHz
Tone Defeat: Yes

Dimensions (W × H × D): 420 × 108 × 320 mm
Net Weight: 6.0 kg
Shipping Weight: 7.4 kg
Remote Control: No
Manufactured: 1993–1996
