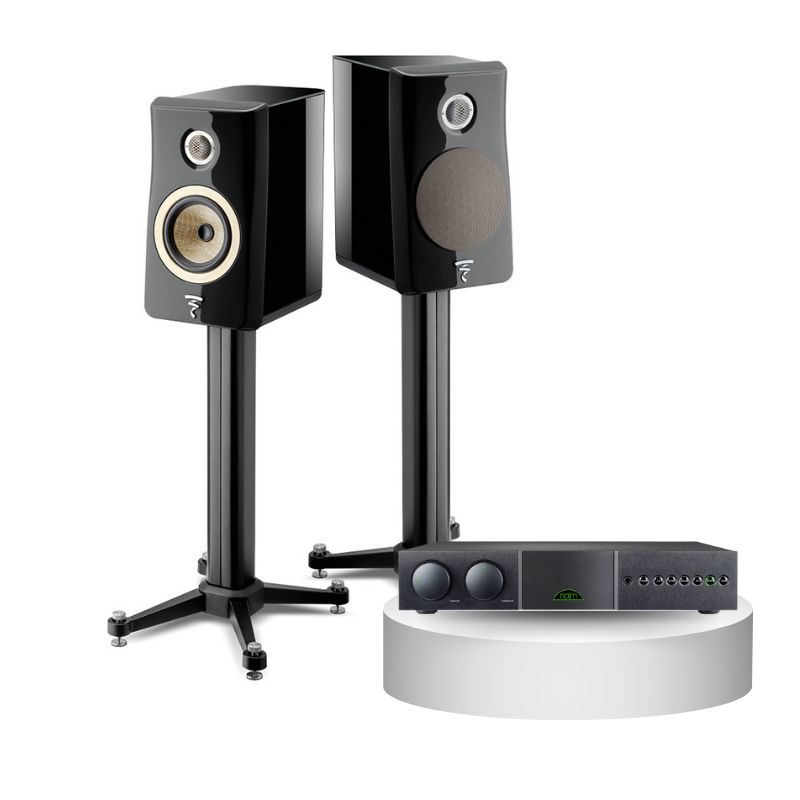

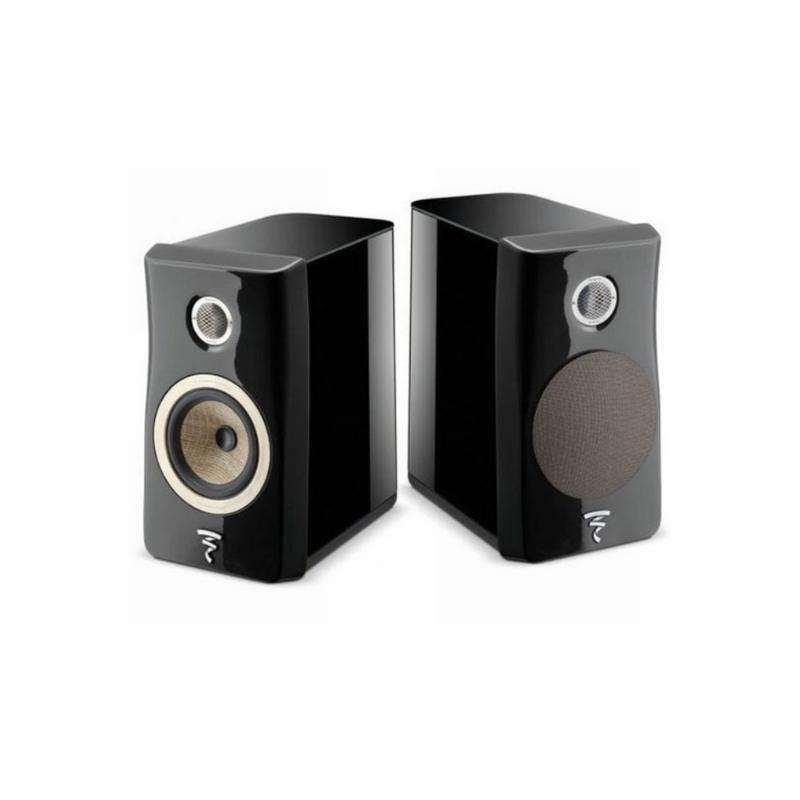

Focal Kanta N°1 - 2-Way Bookshelf Speakers (Pair) + Stands
SPECIFICATIONS
Type2-way bass-reflex bookshelf speaker
Drivers 1 x 61/2"16.5cm Flax bass-midrange with TMD suspension and NIC motor11/16" 27mm ‘IAL3’ pure Beryllium inverted dome tweeter
Sensitivity 2,83V/1m88dBFrequency Response +/-3dB46Hz - 40kHzLow Frequency Point - 6dB42HzNominal Impedance8 Ohms
Minimum Impedance3.9 Ohms
Recommended Amplifier Power25 - 150WCrossover Frequency2,400Hz
Dimensions HxWxD1639/64 x 97/ 3 2 x 1525/64" 422 x 234 x 391mm
Net weight with front grille28.1lbs 13kg
Total weight including packaging 33.1lbs 15kg
__________

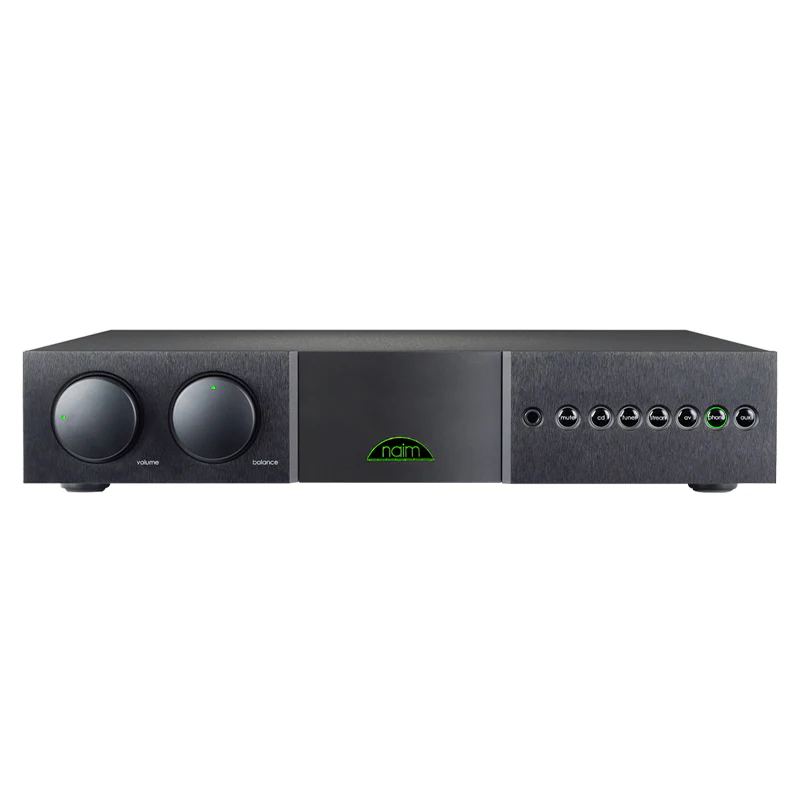

Naim Supernait 3 Integrated Amplifier
FEATURES
With our typical obsessive attention to detail – all in service of achieving the most authentic musical performance – the SUPERNAIT 3 benefits from the following features:
- Class A headphone amplification
- Alps Blue Velvet volume control
- Reed relay input selection
- Ceramic insulators for the power transistors
- Galvanically isolated microprocessor control section
- Microphonic-isolating PCB mounts
Step up from the NAIT XS3 to the SUPERNAIT 3 and you benefit from a range of superior features, all designed to deliver even better sound quality:
- Full 24V DR module built-in: enjoy the purer power and performance improvement of Naim’s Discrete Regulation technology for the entire pre-amp stage.
- Larger toroidal transformer in the power supply: provides greater power and speed of recovery
- Additional leaded through-hole components in the signal path: further minimises negative effects of vibration and transient thermal conditions

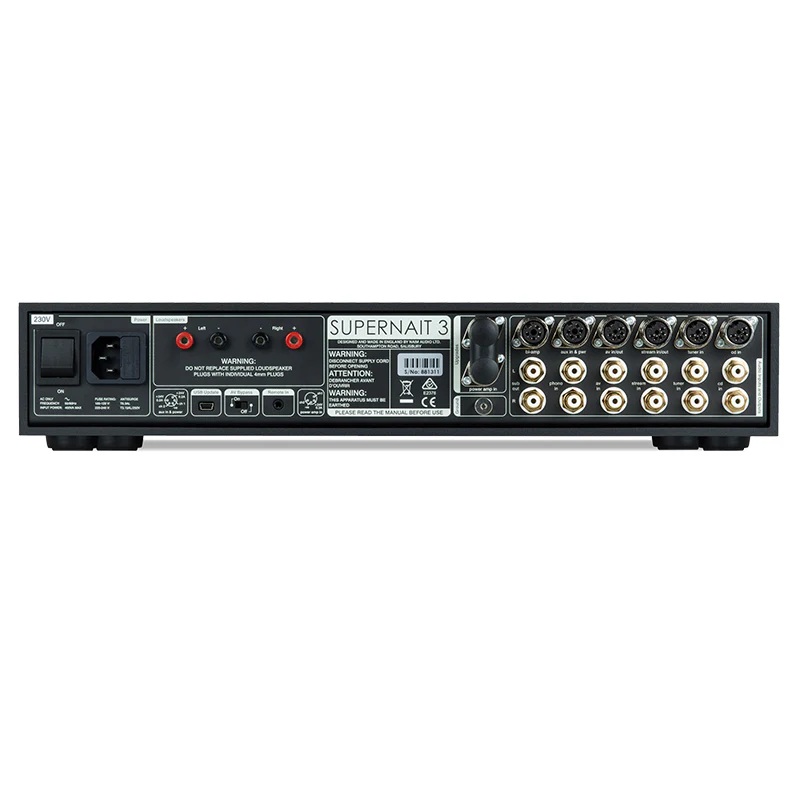

- Chassis-mounted input sockets hand-wired to the circuit boards: offers enhanced vibration isolation
- Full Alps Blue Velvet balance control
TECHNOLOGY & CRAFT
The upgrades in more detail:
- Our R&D team has found a way to more than double the speed of the voltage gain stage, which in turn doubles the rate at which the speaker output stage can react.
- The second gain stage transistors have been optimised, so they no longer need to be shielded by a cascode stage transistor. Removing the cascode means less amplifier stabilisation is required: that doubles the slew rate and delivers an uplift in sound quality.
- The phono circuit topology comprises 3 stages: the gain stage, passive equalisation and final gain and active equalisation. This enables excellent noise performance, extended RIAA equalisation beyond the audio band and great overload headroom.
- All RIAA equalisation capacitors and the RIAA resistors are ‘through-hole’ mounted film designs, with low microphonic pickup and excellent transient performance. As phono stages are 1000x more sensitive than other inputs, this greatly benefits the sound quality.
- Input impedance is 47kΩ in parallel with 470pF capacitive loading; the gain is perfect for 5mV moving magnet cartridges.
