Description
TECHNICAL DATA
- 4N Pure Silver wire: 3 x φ 0.26mm
- Silver-plated Oxygen-Free Copper (OFC) wire: 16 x φ0.10mm
MOUNTING INSTRUCTIONS
All Ortofon cartridges have a color coding of the terminals, indicating red and green for the right channel respectively hot and the ground terminal. White and blue for left channel respectively hot and ground terminal. The green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.
We recommend connecting lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember the correct orientation of the leads. Ortofon SH-4 headshell and Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is normally only 1.0 mm.
Using LW 8N with the SH-4 headshell requires the LW 8N shell side clamp to be widened a little bit to fit on the SH-4 PINs. If shifted around, it may cause over-tightening of the assembly. Being aware of this detail, you will avoid the risk of having the cartridge's terminal PINs fall out.
TECHNICAL DATA
- 4N Pure Silver wire: 3 x φ 0.26mm
- Silver-plated Oxygen-Free Copper (OFC) wire: 16 x φ0.10mm
MOUNTING INSTRUCTIONS
All Ortofon cartridges have a color coding of the terminals, indicating red and green for the right channel respectively hot and the ground terminal. White and blue for left channel respectively hot and ground terminal. The green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.
We recommend connecting lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember the correct orientation of the leads. Ortofon SH-4 headshell and Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is normally only 1.0 mm.
Using LW 8N with the SH-4 headshell requires the LW 8N shell side clamp to be widened a little bit to fit on the SH-4 PINs. If shifted around, it may cause over-tightening of the assembly. Being aware of this detail, you will avoid the risk of having the cartridge's terminal PINs fall out.

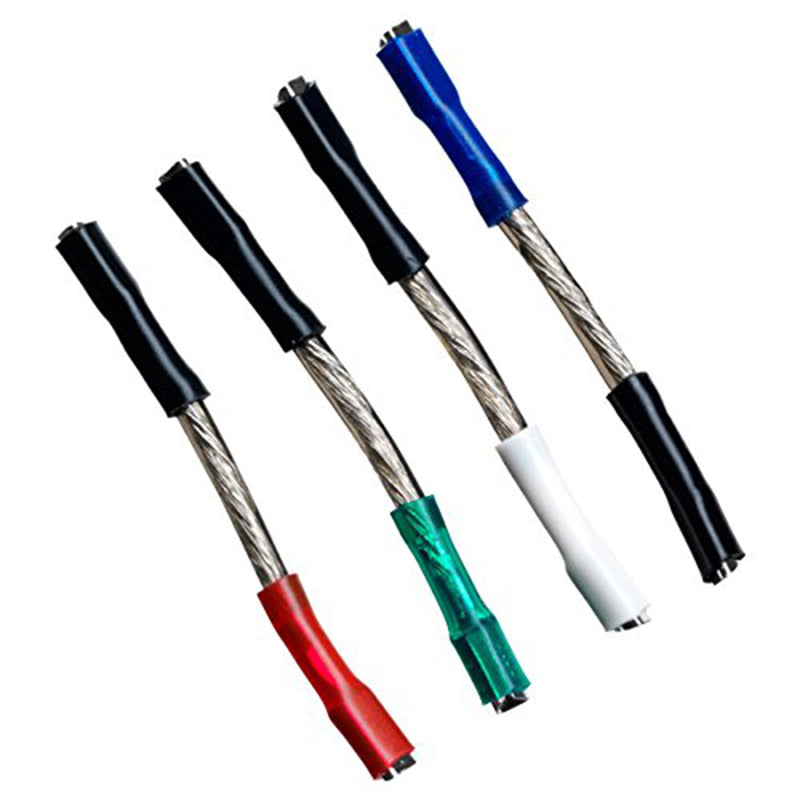

Ortofon LW-800S Headshell Lead Wires
Regular price
R 3,020.00
