Ortofon 2M 78 Moving Magnet Cartridge (Each)

Gallery
Description

Description

2M 78 features:
- An improved engine, which provides a high level of sonic accuracy
- Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile
- 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

The 2M 78 Verso model is an alternative product for bottom mount tonearms.

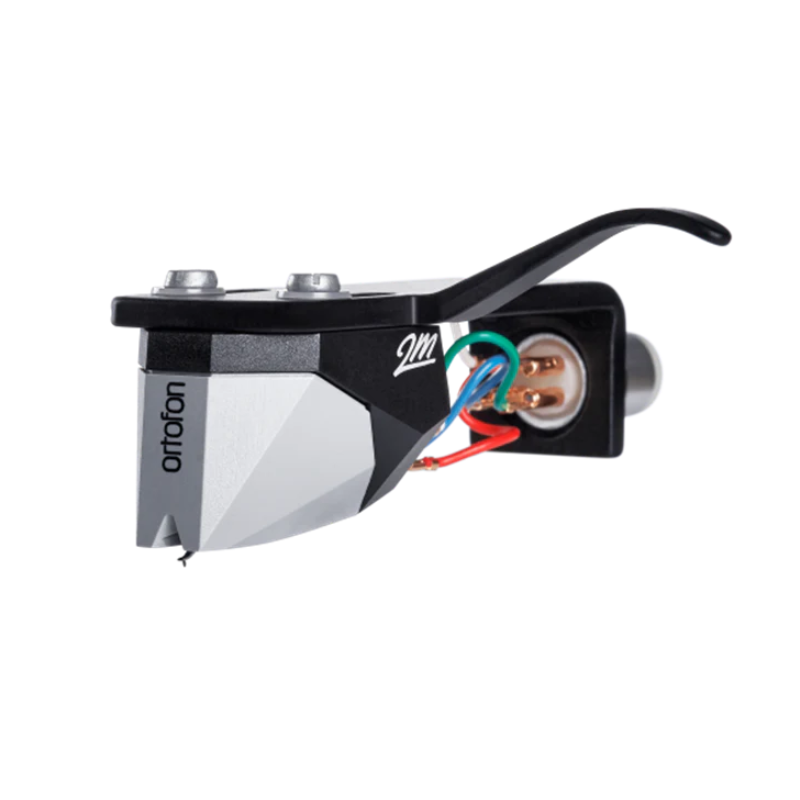

Exclusive Plug-and-Play MkII solution
The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!

Features:
- Universal mount fitting a wide range of S-shaped tonearms.
- Weight with a 2M cartridge pre-mounted 20g
- The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
- Elegant hi-tech design
- Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with the Ortofon TA-110/ TA-210 tonearms, likewise with the major part of tonearms with universal mount

Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Channel balance at 1 kHz -
Channel separation at 1 kHz -
Channel separation at 15 kHz -
Frequency range at - 3dB - 20-20.000 Hz
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 æm
Compliance, dynamic, lateral - 18 æm/mN
Stylus type - Spherical
Stylus tip radius - R 65 æm
Tracking force range - 1,6-2,0g 16-20 mN
Tracking force, recommended - 1,8 g 18 mN
Tracking angle - 20ø
Internal impedance, DC resistance - 700 Ohm
Internal inductance - 350 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Grey
Cartridge weight without screws - 7,2 g
2M PnP MkII cartridge with integrated headshell weight - 20 g
2M PnP MkII cartridge with integrated headshell length - 52 mm

ORTOFON 2M 78 MMC - STANDARD

Ortofon 2M 78 Moving Magnet Cartridge (Each)

R 3,780.00

Select cartridge type

Standard Standard
Pre-Mounted Pre-Mounted
Verso Verso
Rega Rega

Product variants

Select quantity

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Description

2M 78 features:
- An improved engine, which provides a high level of sonic accuracy
- Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile
- 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

The 2M 78 Verso model is an alternative product for bottom mount tonearms.

Exclusive Plug-and-Play MkII solution
The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!

Features:
- Universal mount fitting a wide range of S-shaped tonearms.
- Weight with a 2M cartridge pre-mounted 20g
- The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
- Elegant hi-tech design
- Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with the Ortofon TA-110/ TA-210 tonearms, likewise with the major part of tonearms with universal mount

Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Channel balance at 1 kHz -
Channel separation at 1 kHz -
Channel separation at 15 kHz -
Frequency range at - 3dB - 20-20.000 Hz
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 æm
Compliance, dynamic, lateral - 18 æm/mN
Stylus type - Spherical
Stylus tip radius - R 65 æm
Tracking force range - 1,6-2,0g 16-20 mN
Tracking force, recommended - 1,8 g 18 mN
Tracking angle - 20ø
Internal impedance, DC resistance - 700 Ohm
Internal inductance - 350 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Grey
Cartridge weight without screws - 7,2 g
2M PnP MkII cartridge with integrated headshell weight - 20 g
2M PnP MkII cartridge with integrated headshell length - 52 mm
