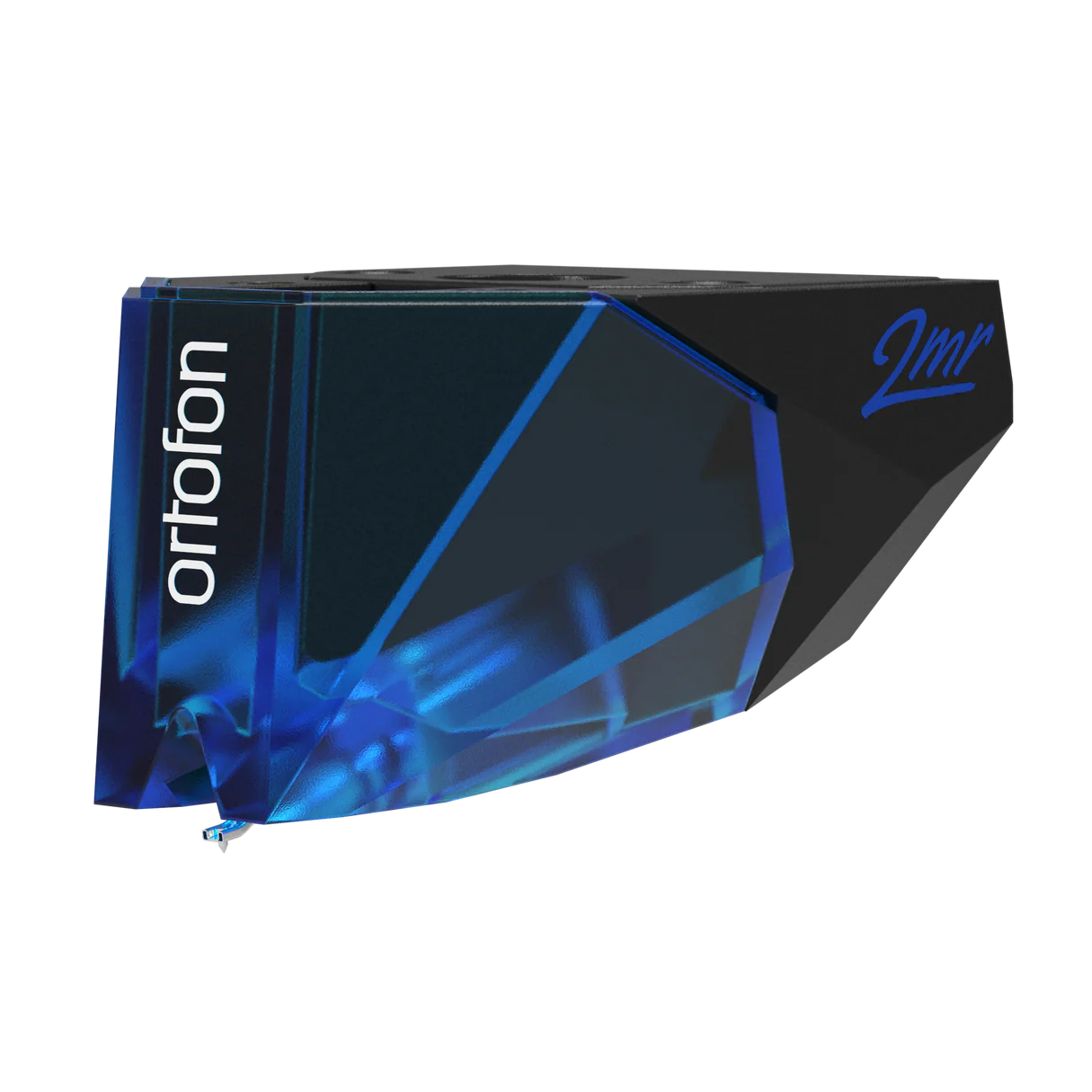

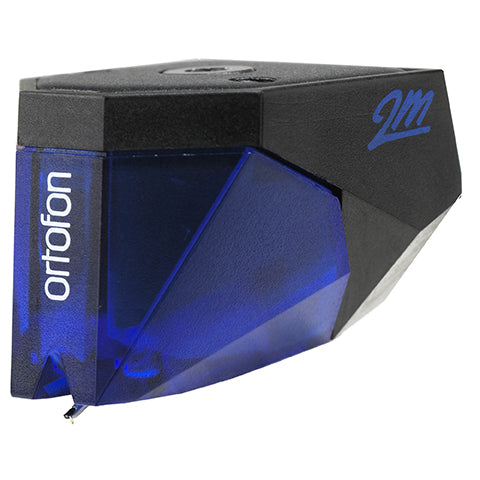

Ortofon 2M Blue Moving Magnet Cartridge (Each)

Regular price R 6,610.00
  • Standard
  • Plug n Play
  • Verso


Ortofon 2M Blue Moving Magnet Cartridge (Each)
Ask a Question

Backed by Merchant West, E-piphany's E-Credit offers finance on orders with a minimum value of R50 000. Learn More.

Merchant West Epiphany Finance

Product information

Warranty & Support
Manufacturer’s warranty can be requested from customer service. Click here to make a request to customer service.

Would you like to tell us about a lower price? Please click here to provide feedback.

Product Specifications
Please refer to the below table for the most important specifications. You can also view the product description below the table for more details. Always feel free to contact our expert consultants by clicking here to find any additional information or to ensure that this product will work for you.

Product Description

2M Blue features:
- an improved engine, which provides an increased output of 5.5mV and an optimized sound reproduction and a high level of sonic accuracy
- Nude Elliptical diamond and split pole pins with a copper wire
- 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details than 2M Red

Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
Channel balance at 1 kHz - 1,5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-25.000 Hz
Frequency response - 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 80 æm
Compliance, dynamic, lateral - 20 æm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 æm
Tracking force range - 1,6-2,0g 16-20 mN
Tracking force, recommended - 1,8 g 18 mN
Tracking angle - 20ø
Internal impedance, DC resistance - 1,3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Blue
Cartridge weight - 7,2 g
2M PnP MkII cartridge with integrated headshell weight - 20 g
2M PnP MkII cartridge with integrated headshell length - 52 mm
Replacement stylus unit - 2M Blue interchangeable with 2M Red and 2M Silver

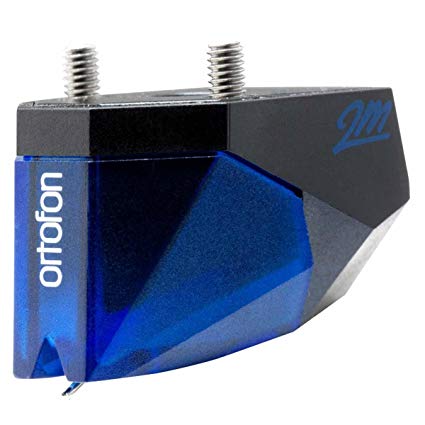

The 2M Blue Verso model is an alternative product for bottom mount tonearms.

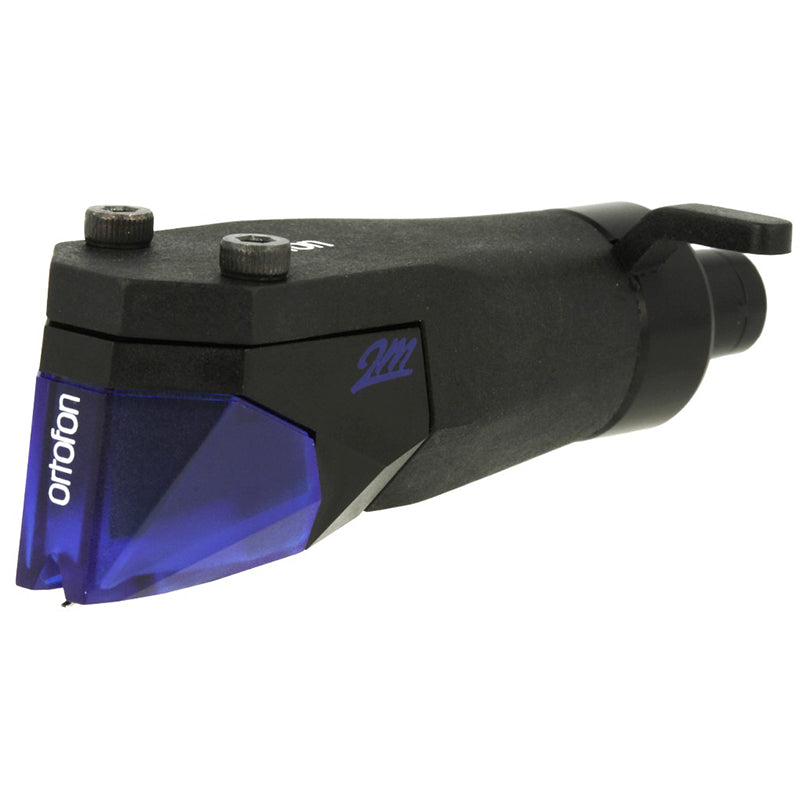

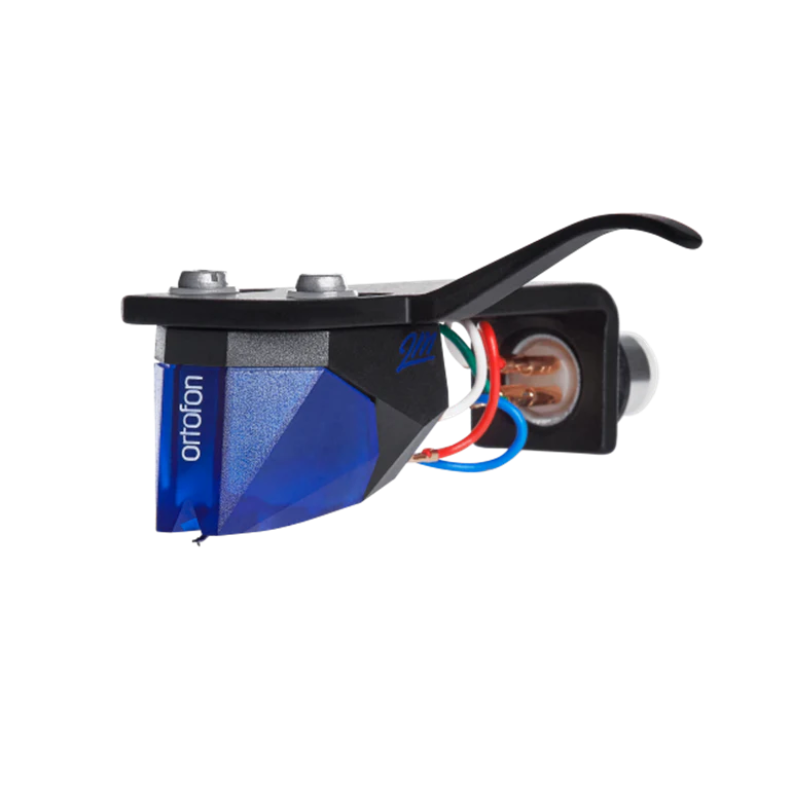

Exclusive Plug-and-Play MkII solution
The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!
