Description
The Quintet Bronze moves into the higher league of the Quintets.
The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners.
Additionally, its larger footprint ensures reduced distortion and record wear.
The sound will be very even-handed with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.
SPECIFICATIONS
Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
Channel balance at 1 kHz - < 1.2 dB Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at - 3dB - 20-25.000 Hz
Frequency response 20-20.000 Hz - +/-1.5 dB
Tracking ability at 315Hz at recommended tracking force * - 80 æm
Compliance, dynamic, lateral - 15 æm/mN
Stylus type - Nude Fine Line
Stylus tip radius - r/R 8/40 æm
Tracking force range - 2.1-2.5 g 21-25 mN
Tracking force, recommended - 2.3 g 23 mN
* Typical value
Tracking angle - 20ø
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - > 20 Ohm
Cartridge body material - ABS/Aluminium
Coil wire material - Pure 4-nines copper
Cartridge colour - Bronze
Cartridge weight - 9 gram
The Quintet Bronze moves into the higher league of the Quintets.
The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners.
Additionally, its larger footprint ensures reduced distortion and record wear.
The sound will be very even-handed with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.
SPECIFICATIONS
Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
Channel balance at 1 kHz - < 1.2 dB Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at - 3dB - 20-25.000 Hz
Frequency response 20-20.000 Hz - +/-1.5 dB
Tracking ability at 315Hz at recommended tracking force * - 80 æm
Compliance, dynamic, lateral - 15 æm/mN
Stylus type - Nude Fine Line
Stylus tip radius - r/R 8/40 æm
Tracking force range - 2.1-2.5 g 21-25 mN
Tracking force, recommended - 2.3 g 23 mN
* Typical value
Tracking angle - 20ø
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - > 20 Ohm
Cartridge body material - ABS/Aluminium
Coil wire material - Pure 4-nines copper
Cartridge colour - Bronze
Cartridge weight - 9 gram

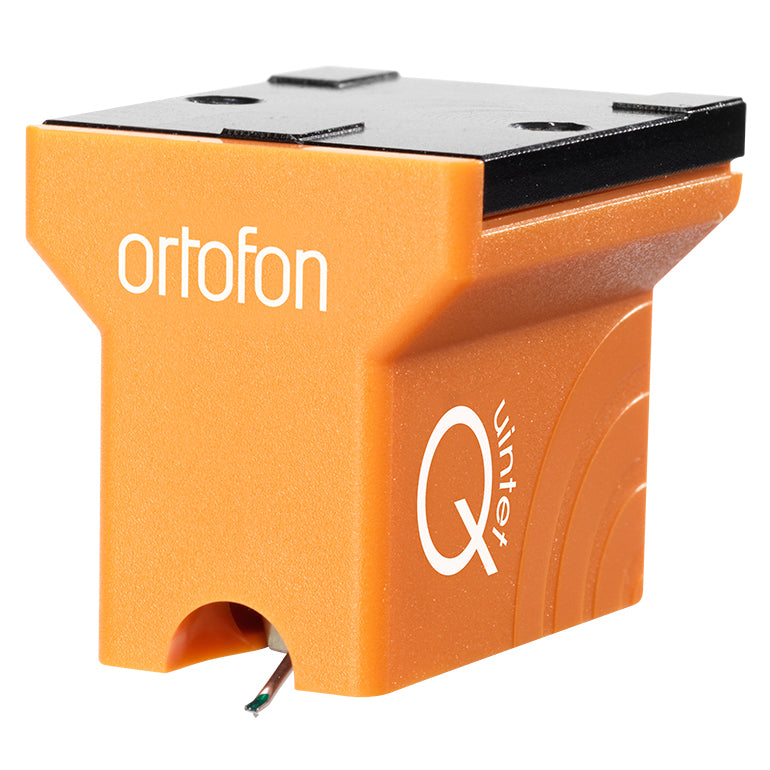

Ortofon MC Quintet Bronze Moving Coil Cartridge (Each)
Regular price
R 18,990.00
