Ultimate, Uncompromising Bass.
Everything is maximized with the new Defiance X10 / X12 / X15 subwoofers. Output is massive, thanks to heavy-duty, internally-braced cabinets, and Active Ridge Technology (ART™) for maximum driver-excursion. Massive SPL levels are coupled with precision control, intense detail and vanishingly low distortion. Completely Crafted in Canada, Defiance X outperforms every sub in their class.
Patented Active Ridge Technology (ART™)
The farther the driver can freely move, the deeper the bass it can generate. Patented* ART driver design “overmolds” durable driver surrounds to allow the farthest possible throw without distortion or destruction. Greater excursion results in a measured 3dB gain in output, with a 50% reduction in audible distortion compared to drivers held back by standard surrounds.
Subwoofer Control App
Simplify setup & tuning with the free Paradigm Subwoofer Control App*, available for iOS and Android devices. The app controls volume, low-pass filter, phase, deep bass and much more from the comfort of your listening chair. It features three preset listening modes and a built-in shortcut to the Anthem Room Correction (ARC®) app.
Specifications
- Amplifier: 1800 watts Dynamic Peak; 900 watts RMS, Class-D amplifier
- Amplifier Features: Auto-On / Off, improved soft-clipping circuitry
- Room Correction: Anthem Room Correction (ARC®) Included
- Frequency Response On-Axis: ±3 dB from 18Hz – 240Hz

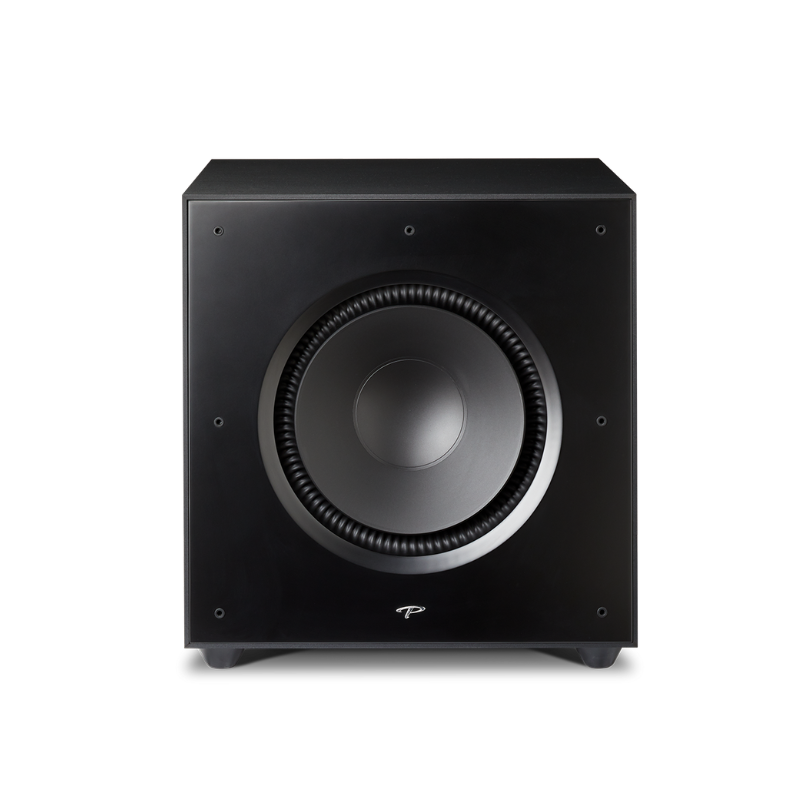

- Low Frequency Driver: 15" (381 mm) ART™ Surround with carbon-loaded polypropylene cone
- Sensitivity (Room/Anechoic): 100mV mono (max. volume)
- Low Frequency Extension: 14 Hz (DIN)
- Impedance: RCA: 10k ohms
- Finishes: Satin Black
- Low Pass Filter Frequency: Variable 30Hz - 120Hz
- Sub / Sat Phase Alignment: Variable 0° - 180° App or Control Panel
-

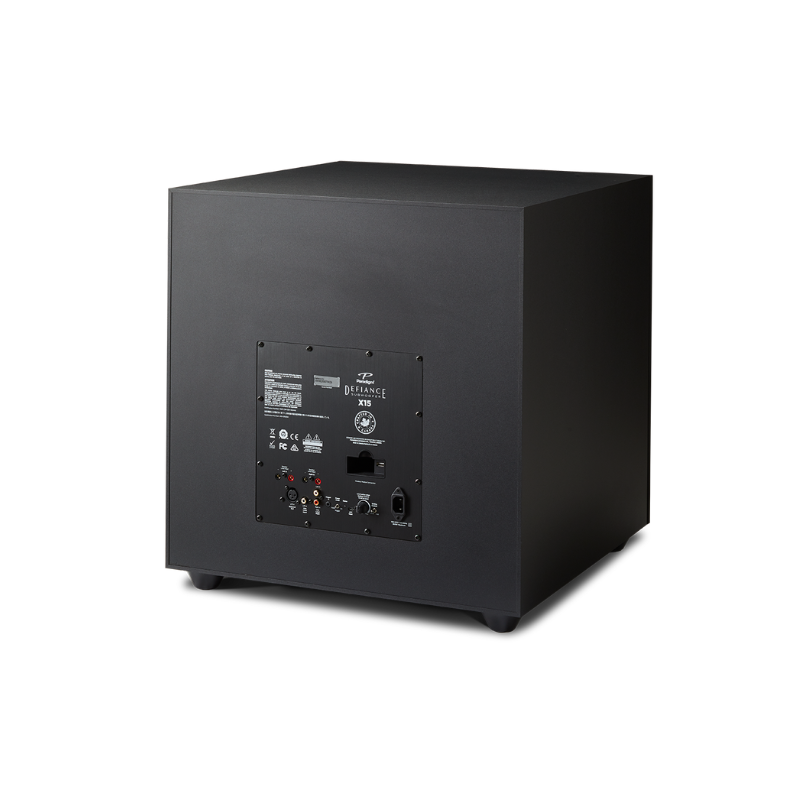

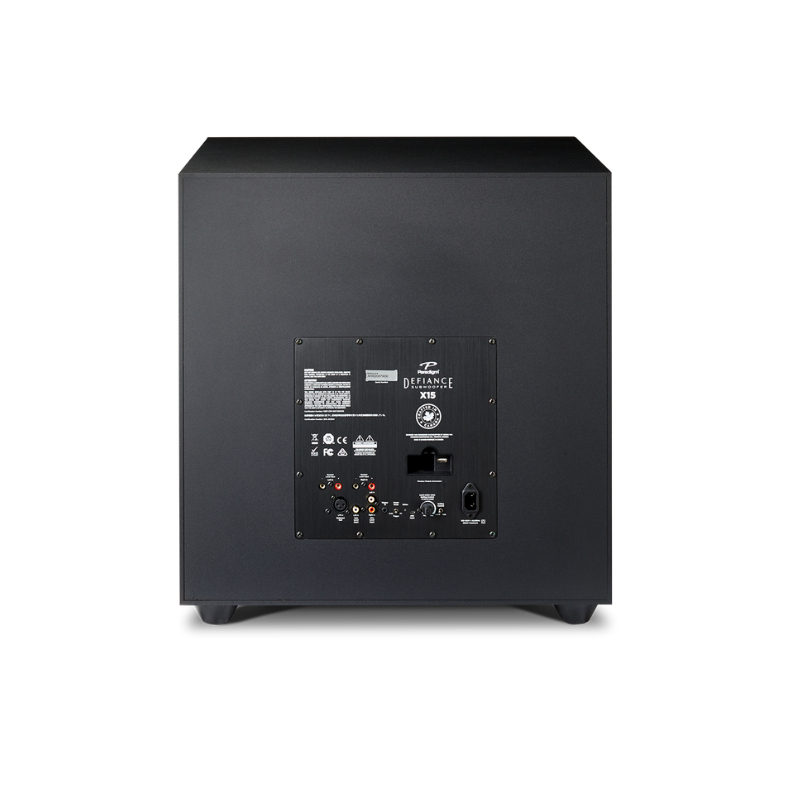

Inputs:
- One Balanced XLR (LFE) for Sub-Out from receiver/processor
- Three RCA (Left, Right, and LFE) for left/right lineout and/or Sub-Out from receiver/processor or other line-level source
- Two Speaker Level (Left and Right) for input from amplifier or other speaker level source
- Compatible Products: Defiance WT Wireless Kit (sold separately)
- Dimensions (H x W x D, includes grille): 24 5/8" × 23 3/16" × 24 5/8" (62.6cm × 59cm × 62.6cm)
- Weight: 92 lbs. (41.7 kg)
