Deep Bass for Home Theatre and Music - Whether you're installing a new set of surround or ATMOS speakers, adding a second subwoofer for the ultimate home theatre experience, or just need more core-pounding impact from your favourite music, the HTS 10 delivers the powerful bass you crave with its long-throw 10" driver, patented Power Port technology and 200W Class D amplifier.
Patented Power Port® Technology - The Power Port® floor-firing design smoothly transitions air flow from the speaker into your listening area for deep, extended bass impact whilst minimizing turbulence, distortion, and port noise. At the port tuning frequency, Power Port® equipped subwoofers to have 3dB less port noise than similarly configured subwoofers without Power Port®.

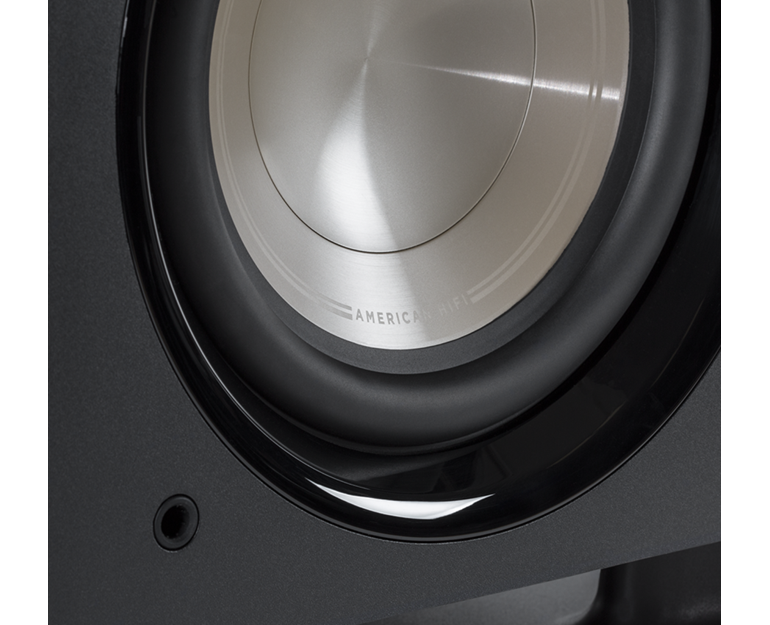

Dynamic Balance Drivers - Front-firing 10" driver with our patented Dynamic Balance technology is Klippel optimised to provide clean, clear bass, better linearity, lower distortion, and greater durability.
Modern Styling - Curved edges offer a sensual yet powerful look that fits with any home decor—available in a stunning black washed walnut or classic brown walnut finish.

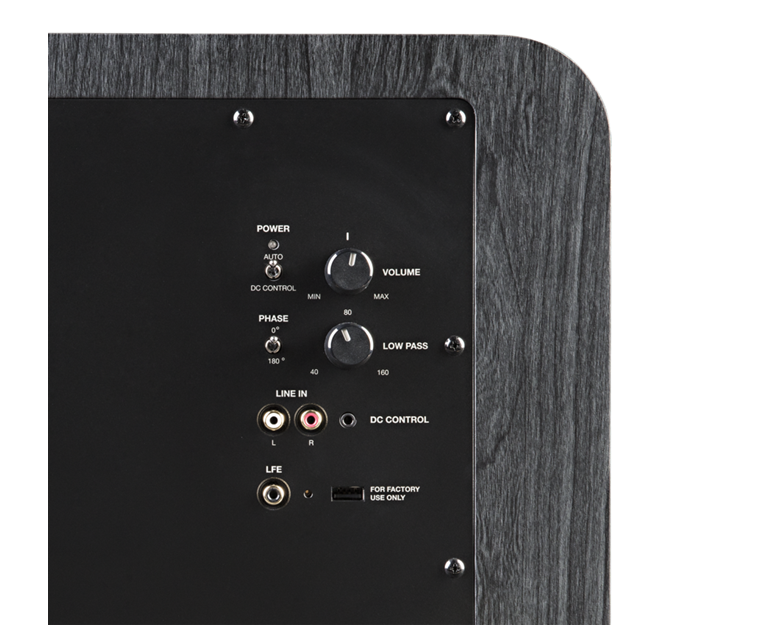

Complete Control - Built-in controls for variable volume, low pass filter, and phase (0/180°) for optimum bass levels. Set power toggle to Auto on/off or DC control (12V trigger) for fast and easy on/off power switching in the sub and other home theatre equipment-all easily accessible on the back panel.
Universal Compatibility - Connect via LFE (unfiltered/low pass disabled) or stereo line-level RCA inputs-complements any home theatre system (cables not included).
Quality Crafted Cabinet Design - Strong, rigid and acoustically inert enclosure reduces unwanted internal standing waves for less audible colouration. And non-resonant Meddite MDF construction, with extra bracing and minimum thick baffles, ensures a more lifelike sound.
SPECIFICATIONS
Subwoofer
Total Pieces - 1
Height - 16.5" (41.91 cm)
Width - 15.12" (38.4 cm)
Depth - 16.1" (40.89 cm)
Weight - 37.75 lbs (17.12 kg)
Subwoofer Array Driver Enclosure Type - Power Port Bass Vented
Subwoofer Array Driver Complement - (1) 10" (25.4 cm) d (Round) Polypropylene Dynamic Balance and Klippel optimised driver - Subwoofer
Peak Power - 200 Watts
Continuous Power - 100 Watts
Internal Amplifier
Amplifier Class - Class D
Audio Quality
Total Frequency Response - 25 Hz → .180 Hz
Nominal Impedance - 8 ohms
Lower and Upper -3dB Limits - 30 Hz → .120 Hz
Inputs
Audio Inputs
- LFE (Unfiltered)
- Stereo Line Level - (2) RCA
Controls
IO Button Location - Back Panel
Adjusts
- "Volume +/-
- Low Pass Filter (30Hz-120Hz)
- Phase (0/180°)
- Power: Auto on/off
- Power: DC control (12V trigger)"
Power
US Power Cycle - Energy Star Compliant with Auto Standby (.5W)
