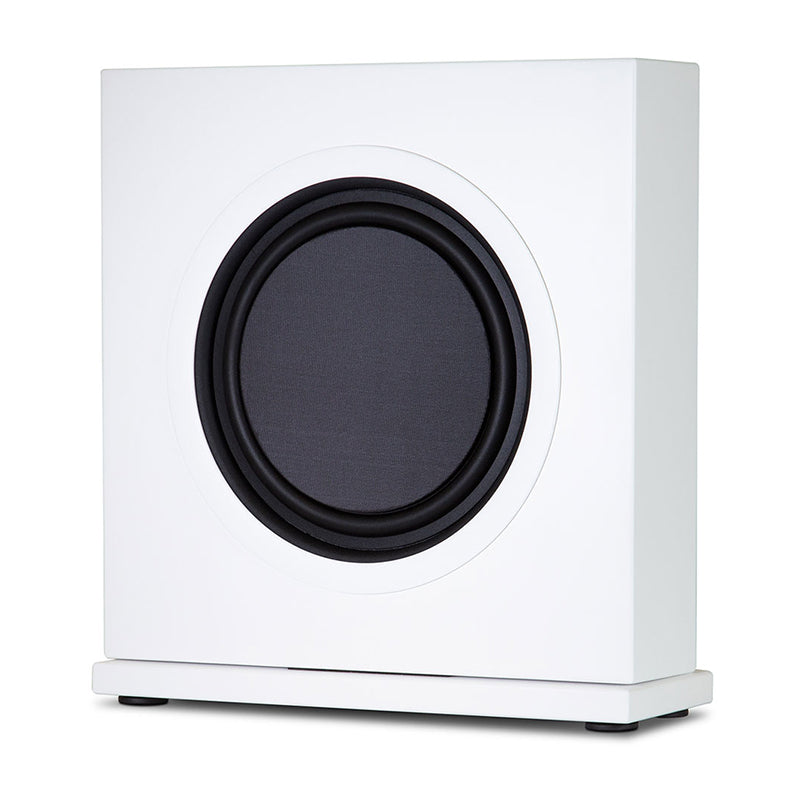

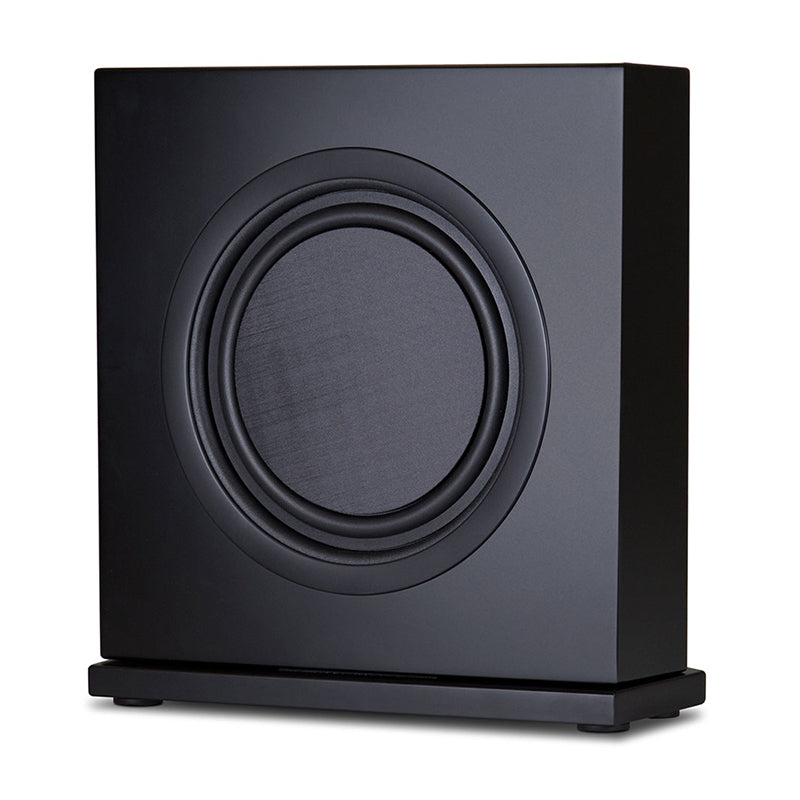

CustomSound™ CSIR SUB can be placed in 3 distinct ways. It can be mounted on a narrow, low profile plinth and placed upright. It can also be set on its back allowing it to be tucked out of the way, behind or under furniture. It comes with a mounting bracket, enabling the subwoofer to be wall-mounted to maximize floor space.
The 10“, the high-performance shallow driver offers deep and resonant bass well beyond its modest size.
- Ultra-Slim 10” Passive In-Room Subwoofer
- Three Placement Options:
– On-Wall with supplied mounting bracket
– On-Floor with supplied base
– Laid on its back for under or behind furniture - High excursion, a shallow driver with Glass fiber / PMI
- Foam sandwich cone, dual rubber surround
- Renowned PSB sonic signature, well suited for either music or home theater
- Design and final voicing engineered by Paul Barton
- ISO Acoustic feet for improved isolation and sound clarity
- An ideal match with CS500W subwoofer amplifier
- Gross Dimensions (w/o Base):15¾ x 15¾ x 4¾” (W x H x D)
- Gross Dimensions (w/ base):15¾ x 17 x 5¼” (W x H x D)
SPECIFICATIONS
- Frequency Response
Frequency Response
25-150Hz
- Sensitivity
Anechoic Chamber
88dB
Listening Room
90dB
- Impedence
Nominal
8 Ohms
- Acoustic Design
Woofer (Nominal)
10” (254mm)
Glass fiber / PMI foam sandwich cone
Die Cast Basket
Rubber Surround
Balanced Drive motor structure
- Recommended Power
Recommended Power
40-200 Watts
- Construction
Cabinet
MDF
Grille Face
Acoustic Transparent Cloth
Grille Frame
Wood
- Size (W x H x D)
Net Width
15 3/4 “(400mm)
Net Hight
17″ (432mm)
Net Depth
5 1⁄4” (133mm)
- Shipping Information
Net Width
21 1/4” (540mm)
Net Hight
21 5/8” (550mm)
Net Depth
11” (280mm)
Net Weight
24 4/5 lbs
Shipping Weight
32 1/2 lbs
- Brackets
Wall Bracket
Included
Floor Stand
Included
