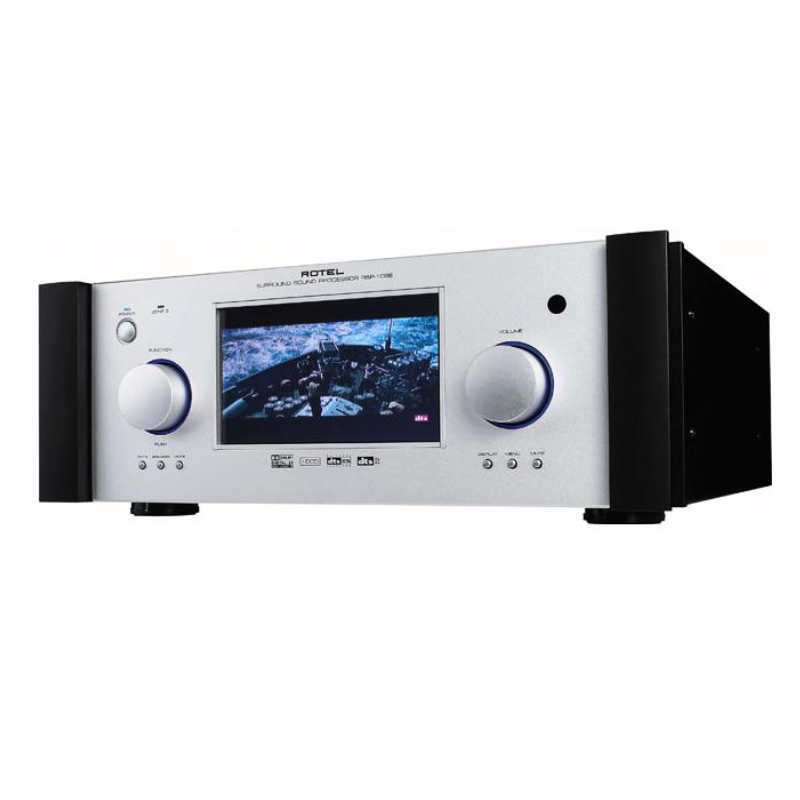

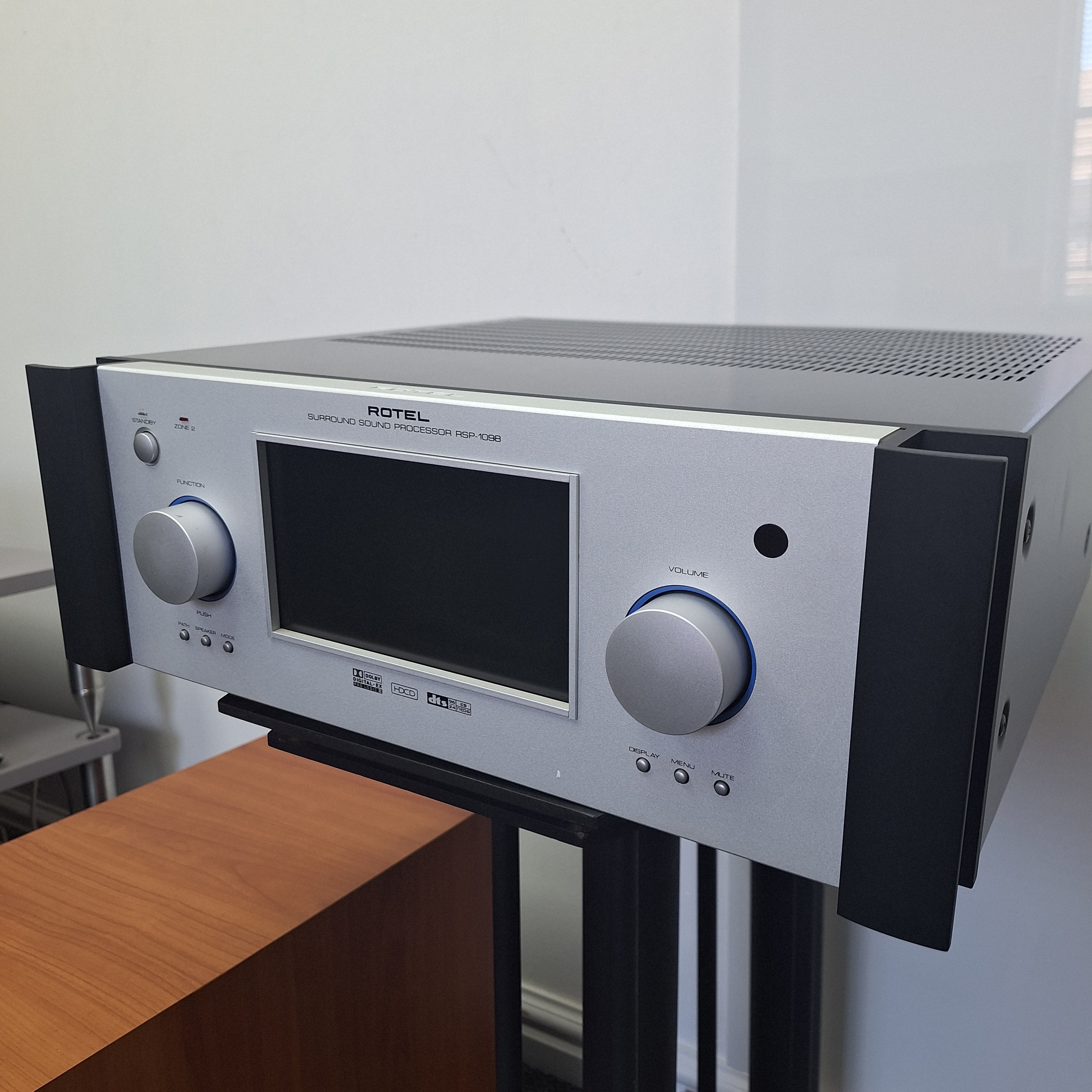

On the RSP-1098’s front panel, you’ll find an integral LCD color monitor flanked by just a power switch, two knobs, and six miniature pushbuttons. These elements let even technophobes enjoy the RSP-1098’s exceptional performance, yet allow more sophisticated users a level of control, system customization, and convenience. The RSP-1098 contains a power supply built around Rotel-made dual toroidal transformers and special low-ESR storage capacitors for a rock-solid source of operating current and superb isolation between digital and analog sections. The RSP-1098 uses modular construction borrowed from the computer industry which provides performance free of the crosstalk and noise inevitable with more crowded designs. We’ve included eight assignable digital audio inputs (five coaxial and three optical) in addition to eight A/V analog inputs, each with composite and S-video capability. Outputs include eight main audio outputs, four digital audio (two coaxial, two optical), one tape out, zone 2 out (with video), and three A/V outputs all with composite and S-video connections. The world of high definition video won’t challenge the RSP-1098’s four component video inputs, signal paths, and switching ICs. In addition, composite and S-video input signals can be processed through a transcoder circuit to output all Component Video signals. The result is superb system flexibility and outstanding performance. RSP 1098 7.1 Surround Preamp/Processor
___________
Specification:
Audio
THD: <0.05%
IM Distortion (60Hz : 7kHz): <0.05%
Frequency Response (line level): ±3 dB, 10Hz – 95kHz
Frequency Response (digital level): ±0.3 dB
S/N Ratio (Stereo, A-weighted): 95 dB (Analogue)
S/N Ratio (Dolby Digital, dts, 0dBFs): 92 dB
Input Sensitivity / Impedance: 200mV / 100 kΩ (Line Level)
Tone Controls (Bass / Treble): ±6 dB at 50Hz / 15kHz
Preamp Output Level: 1.0V / 250 Ω
Video
Frequency Response: 3Hz – 100MHz, ±3 dB
S/N Ratio: 45 dB
Input Impedance: 75 Ω
Output Level: 1V
General
Power Consumption: 70 watts
Power Requirements: 115V 60Hz (USA) / 230V 50Hz (CE)
Weight: 45.5 lbs
Dimensions (W × H × D): 433mm × 165mm × 421mm (17 1⁄8" × 6 1⁄2" × 16 5⁄8")
Front Panel Height: 150mm (5.9")
