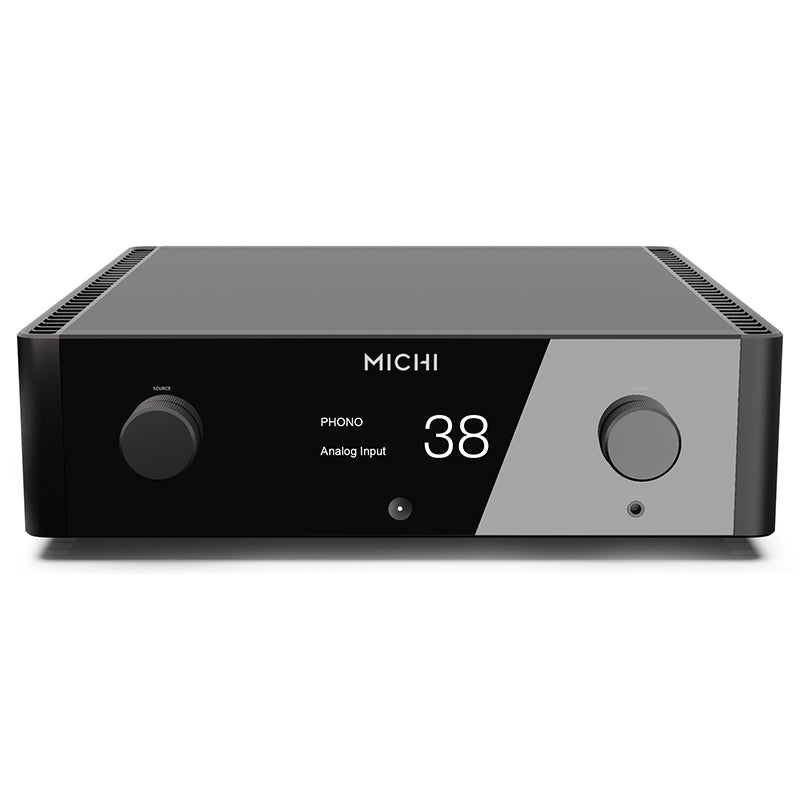

The Michi X3 Integrated Amplifier delivers uncompromised audio performance with a full array of source inputs including Analog, Digital, PC-USB, XLR, apt-X Bluetooth, and a Moving Magnet Phono Stage connection for classic vinyl lovers. The X3 is conveniently packaged in an elegant industrial design delivering 350 Watts of Class AB power into 4-ohm speakers while maintaining musical accuracy with exceptional acoustic detail.
Every aspect of the X3 has been custom engineered with all critical circuits and components hand-selected through rigorous listening sessions and bench testing. Engineered with over 58 years of audio engineering experience the X3 is sure to bring countless hours of entertainment.
SPECIFICATIONS
Dimensions (W × H × D)
485 x 150 x 452mm
19" × 6" × 17 3/4"
19" × 6" × 17 3/4"
Front Panel Height
132 mm (5.25")
Power Requirements
230V, 50Hz
Power Consumption
500W
Standby Power Consumption
Normal: <0.5W
Network Wakeup: <2W
Net Weight
28.9kg (63.7 lbs.)
BTU Rating
1303 BTU/h
Maximum Power Output
350W/Ch (4Ω)
Continuous Power Output
200W/Ch (8Ω)
Total Harmonic Distortion (THD)
<0.008%
Frequency Response
Line Level Inputs: 10Hz - 100kHz (+0dB, -0.4dB)
Digital Inputs: 20Hz - 20kHz (0 ± 0.4dB)
Phono Input: 20Hz - 20kHz (+0dB, +0.4dB)
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 102dB
Digital Inputs: 102dB
Phono Input: 80dB
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%
Damping Factor (20Hz - 20kHz, 8Ω)
350
Channel Separation
>55dB
Input Sensitivity
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Phono Input (MM): 5.2mV
Input Impedance
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Input Overload
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 5.5V
Phono Input: 60mV
Preout Level
1.9V
Output Impedance
100Ω
Tone Controls
±10dB at 100Hz / 10kHz
Coax/Optical Digital Input Signals
SPDIF LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 32/384)
USB Audio Class 2 (up to 32/384)
DSD and DoP support
