What you will get

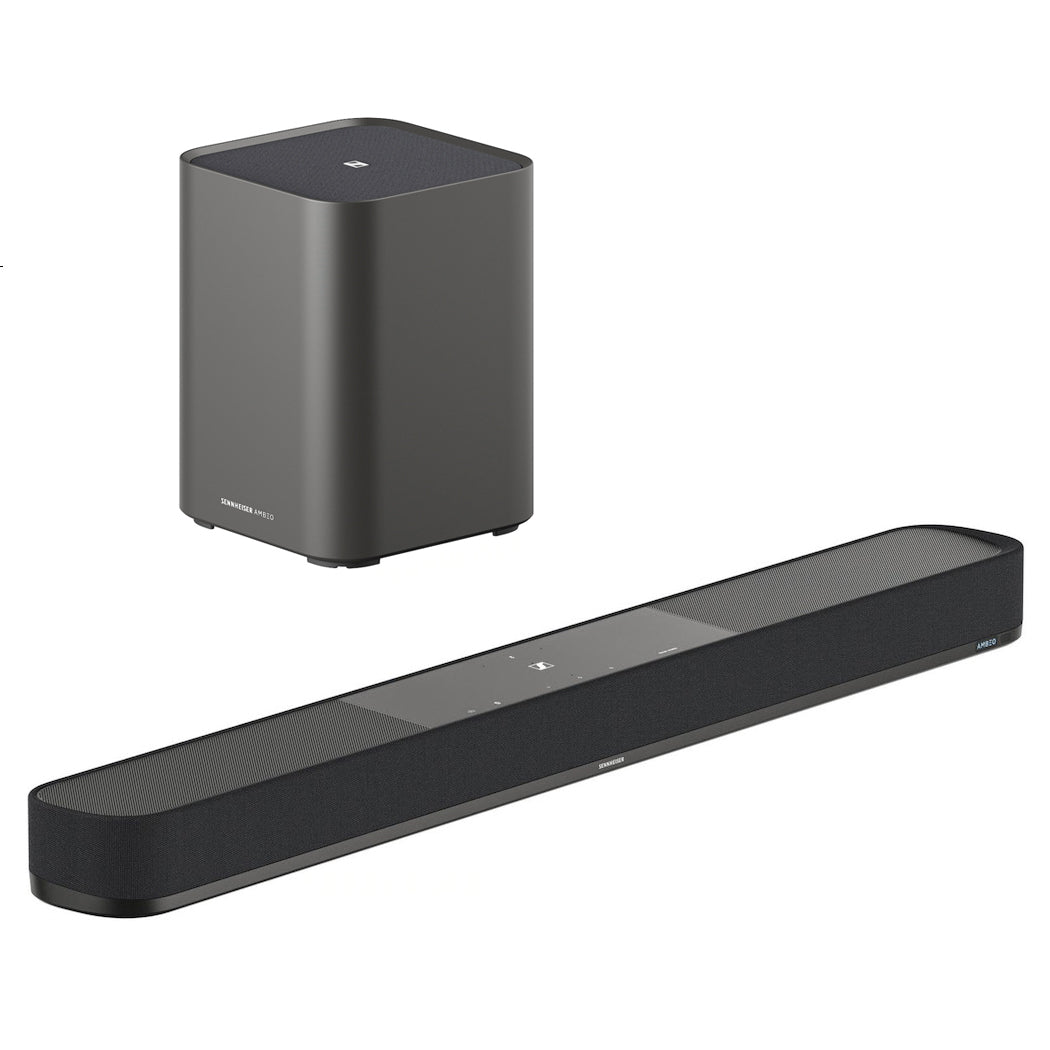

The Experience Set contains one -AMBEO- Soundbar Plus and one -AMBEO- Sub. Exceptionally good on their own but even better together.
-AMBEO- Soundbar | Plus
The world’s most immersive sound.
-
Ultimate immersive sound
-
9x Class-D amplifiers
-
Powerful and adaptive audio features
-
Wireless
-AMBEO- Sub
Bass reinvented.
-
-AMBEO- virtualization technology
-
8” high-end proprietary woofer
-
Automated self-calibration
-
Multiple connectivity options
Specifications
Sennheiser Ambeo Soundbar
Amplifier
9x Class D Amplifiers
Total Audio Power
400w (Rms)
Total Number Of Speakers
9
Audio Processing
Quad Core 1,8ghz Soc
Voltage Range
00–240v ~50/60hz
Woofers
2x 4″ Cellulose Cone Driver
Full Range
7x 2″ Aluminum Cone Fullrange Driver
Frequency Response
38hz – 20 Khz
Hdmi Tv (Earc) Out
1x Hdmi Earc (Hdmi 2.1)
Hdmi In
2x Hdmi 2.0a
Opt In
1x S/Pdif, Sampling Rates: Up To 192 Kh
Aux In
1x Stereo Rca Sockets
Usb
1x Usb Socket (Type A), For Power Supply For Accessories (External Devices): 5 V, 1 A;
Subwoofer Sw Pre-Out
1x Mono Rca, Max. 2 V
Microphone Input For Room Calibration
4x Built-In Far Field High-Precision Microphones
Max Power
100 Mw (Max)
Smart Standby
Deep Standby: <0.5w
Temperature Range (Operation)
0 °C To +40 °C
Relative Humidity (Operation)
10 To 90 %
Dimensions (With Feet)
Approx. 105,1 X 7,7 X 12,1 Cm
Dimensions (Without Feet)
Approx. 105,1 X 7,5 X 12,1 Cm
Weight
Approx. 6,3 Kg
Wifi
Ieee 802.11 A/B/G/N/Ac/Ax
Wifi Transmission System
2 X 2 Mimo
Wifi Transmission Frequency
2,400 Mhz To 2,483.5 Mhz / 5,170 Mhz To 5,835 Mhz
Wifi Modulation 2.4 Ghz
Cck, Dqpsk, Dbpsk Für Dsss, 64qam, 16qam, Qpsk, Bpsk For Ofdm
Wifi Modulation
024-Qam, 256-Qam, 64qam, 16qam, Qpsk, Bpsk
Bluetooth Output Power
Bt Soc: 10mw (Max) Bt Sub: 10mw (Max)
Bluetooth Version
5.0 Classic/Ble
Bluetooth Transmission Frequency
2,400 Mhz To 2,483.5 Mhz
Bluetooth Modulation
Gfsk, Π/4 Dqpsk, 8dpsk
Bluetooth Profiles
A2dp, Avrcp, Gatt
Bluetooth Output Power
Bt Soc: 10mw (Max) / Bt Sub: 10mw (Max)
Bluetooth Audio Codec
Bt Soc: Aac, Sbcbt Sub: Lc3
Ethernet
1x Rj-45 Ethernet Socket
Sennheiser Sub
