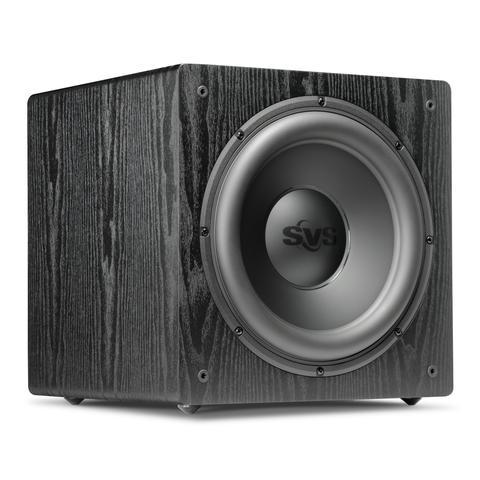

The SVS SB12-NSD combines a compact sealed enclosure with a powerful 12-inch driver and sophisticated DSP-controlled amplification to deliver deep, accurate and controlled low-frequency performance.
At the heart of the SB12-NSD is a 12-inch front-firing NSD driver with an aluminium cone, long-throw suspension and a robust cast-aluminium basket. The driver is powered by SVS's STA-400D Sledge amplifier, delivering 400 watts RMS with up to 800 watts of peak dynamic power
The sealed cabinet design allows the SB12-NSD to maintain a relatively compact footprint while providing a frequency response extending down to approximately 23Hz. Its integrated DSP and limiter settings are specifically optimised for the SB12-NSD, helping the subwoofer deliver controlled performance while protecting the driver and amplifier.
The SB12-NSD includes stereo RCA line-level inputs and outputs, an adjustable low-pass filter, phase adjustment and an 80Hz high-pass output. With its compact dimensions and flexible controls, it can be integrated into a wide range of stereo music and home theatre systems.
Specifications
General
- Type: Active sealed subwoofer
- Enclosure: Sealed
- Driver: 12" front-firing NSD driver
- Cabinet: Rigid MDF
- Amplifier: SVS STA-400D Sledge Class D
- Amplifier Power: 400W RMS / 800W peak dynamic power
Performance
- Frequency Response: 23Hz – 270Hz ±3dB
- Low-Pass Filter: Adjustable, with Disable setting
- Phase: Adjustable
- DSP: Customised EQ and DSP limiter settings
- Auto Turn-On: Yes
Connectivity
- Stereo RCA line-level inputs
- Stereo RCA line-level outputs
- 80Hz high-pass RCA outputs
- Unfiltered RCA outputs for daisy-chaining
Driver Construction
- 12" aluminium cone
- Composite dust cap
- 2" high-power voice coil
- High-temperature former
- Nomex long-throw spider
- Long-throw rubber surround
- Cast-aluminium basket
- FEA-optimised motor structure
Dimensions & Weight
- Height: 14.6" / 371mm
- Width: 14.2" / 361mm
- Depth: 14.2" / 361mm
- Weight: Approximately 35lb / 15.9kg
