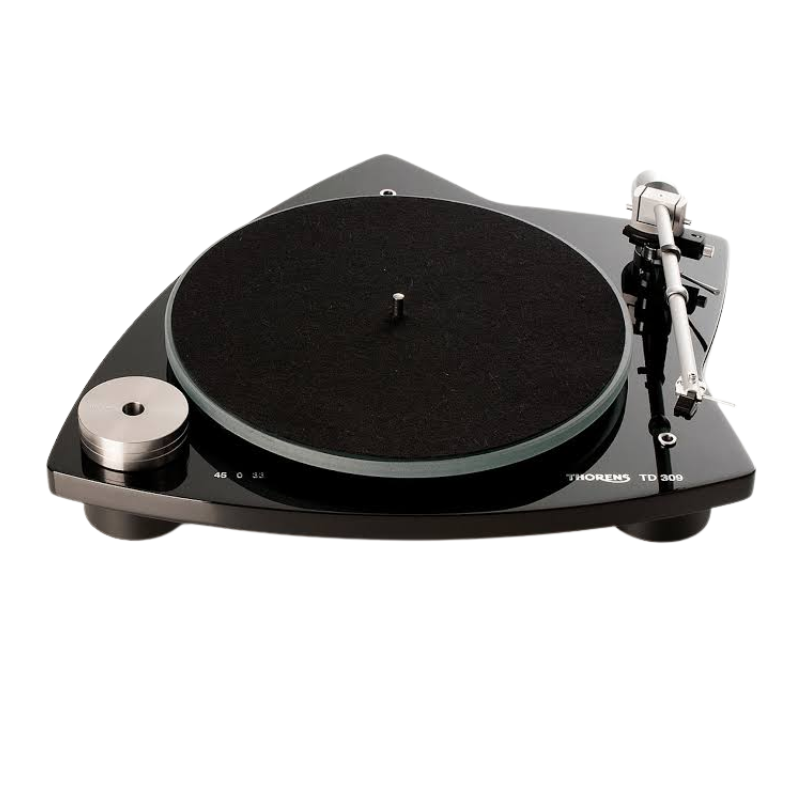

The Thorens TD 309 combines Thorens’ long-standing turntable expertise with a modern suspended-chassis design. Its innovative Tri-Balance suspension system is designed to provide effective isolation from external vibrations, while the electronically controlled, servo-driven DC motor provides stable 33 1/3 and 45 rpm operation.
The turntable features a 12-inch glass platter mounted on an aluminium sub-platter, together with the Thorens TP 92 tonearm. The TP 92 uses low-friction precision bearings, magnetic anti-skating and an aluminium arm tube designed to reduce unwanted resonance. The tonearm also allows adjustment of azimuth and overhang.
With its MDF plinth, suspended sub-chassis and external power supply, the TD 309 is designed to provide a carefully controlled platform for vinyl playback while maintaining a distinctive, minimalist appearance.
KEY FEATURES
- Tri-Balance suspended sub-chassis design
- Servo-controlled DC motor
- Electronic speed selection
- 33 1/3 and 45 rpm
- 12-inch glass platter
- Aluminium sub-platter
- Thorens TP 92 tonearm
- Magnetic anti-skating system
- Adjustable azimuth and overhang
- External power supply
- Manual operation
-
No automatic shut-off
Specification Details Type Manual turntable Drive System Belt drive Motor Servo-controlled DC motor Speeds 33 1/3, 45 rpm Speed Change Electronic Platter 12-inch glass, 2.3 kg Sub-Platter Aluminium Tonearm Thorens TP 92 Tonearm Effective Length 232.8 mm / 9.1" Overhang 17.8 mm, variable Offset Angle 23.6° Tonearm Effective Mass Approx. 11 g Anti-Skating Magnetic Cartridge Thorens TAS 267 MM* Automatic Shut-Off No Power Supply External, 12 V DC/AC, 6 W minimum Dimensions (W × H × D) 470 × 125 × 430 mm Weight 6.5 kg Plinth MDF
