Description

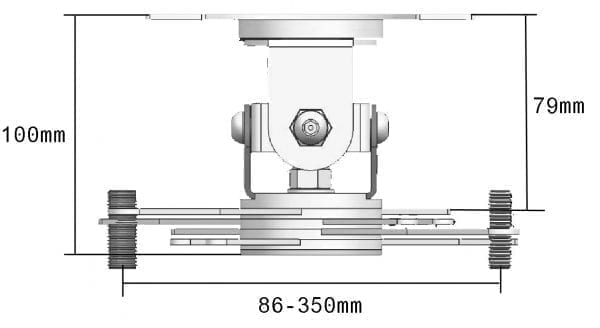

The Techmount TM-CC is a universal projector ceiling bracket designed to secure 99% of data projectors safety and sturdily to ceilings. It is designed for applications where no ‘drop’ is required so no pole is included. It holds the projector 110mm away from the ceiling.

Robust Construction

High standard of finish and over-engineered for stability and safety. A rugged high-quality satin-white finish blends with ceiling tiles.

Manoeuvrable

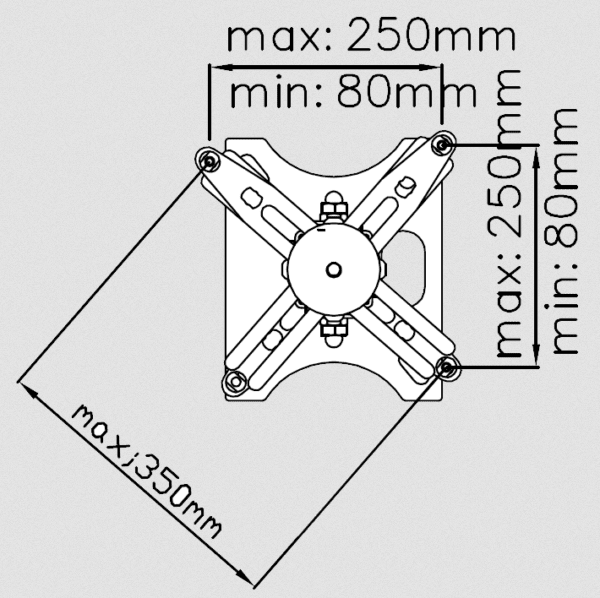

The top and bottom parts can rotate 360 degrees, and the spider arms have a maximum span of 340mm (13.4″).

Sloping Ceilings?

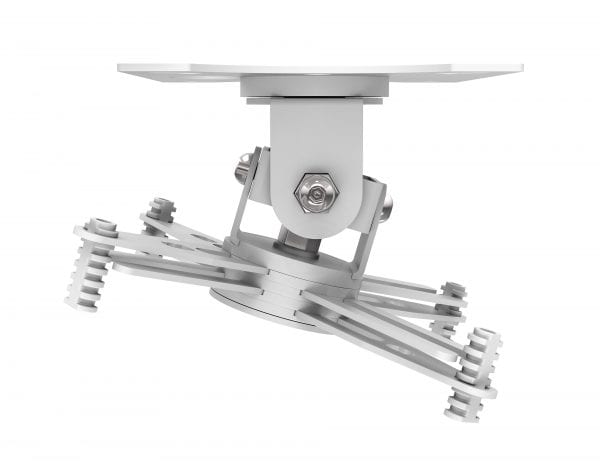

A tilting mechanism is built in allowing you to use the bracket with cathedral-type ceilings.
Safety Approved

As with all projector Techmounts a safety cable is included to attach to the projector. The TM-CC has a recommended maximum safe working load (SWL) of 10kg which is well within the limits of the product.

Easy fit

Fitting the bracket to the projector is simple; most projectors have threaded inserts in the bottom for attachment. Not all use the same diameter screws we provide a selection to suit almost all projectors. Simply adjust the arms on our bracket over the attachment holes, and insert a screw into the projector.

Tools Included

A spanner and pin-hex key are included.

Secure

Quick-release mechanisms make life easier for thieves so the TM-CC comes with secure pin-hex bolts.


SPECIFICATIONS

BOX DIMENSIONS - 244 x 174 x 120mm / 9.61″ x 6.85″ x 4.72″

PACKAGED WEIGHT - 1.9 kg / 4.19 lbs

SAFE WORKING LOAD - 10kg/ 22.05 lbs

COLOUR - Satin White

ACCESSORIES INCLUDED

  • 1 x H50 Pin-Hex key
  • 1 x H50 power drill hex bit
  • 1 x 17mm (0.7″) Spanner
  • 4 x M2.5 43mm (1.7″) pan slot for Optoma & Acer
  • 4 x M3 43mm (1.7″) screws
  • 4 x M4 43mm (1.7″) screws
  • 4 x M5 43mm (1.7″) screws
  • 4 x M6 43mm (1.7″) screws
  • 4 x M8 50mm (2.0″) Ceiling Fixtures with rawl plugs
  • 1 x Safety Tether

WARRANTY - Lifetime return-to-base

COMPLIANCES - TUV-GS Certification


Vision VIS-1932372

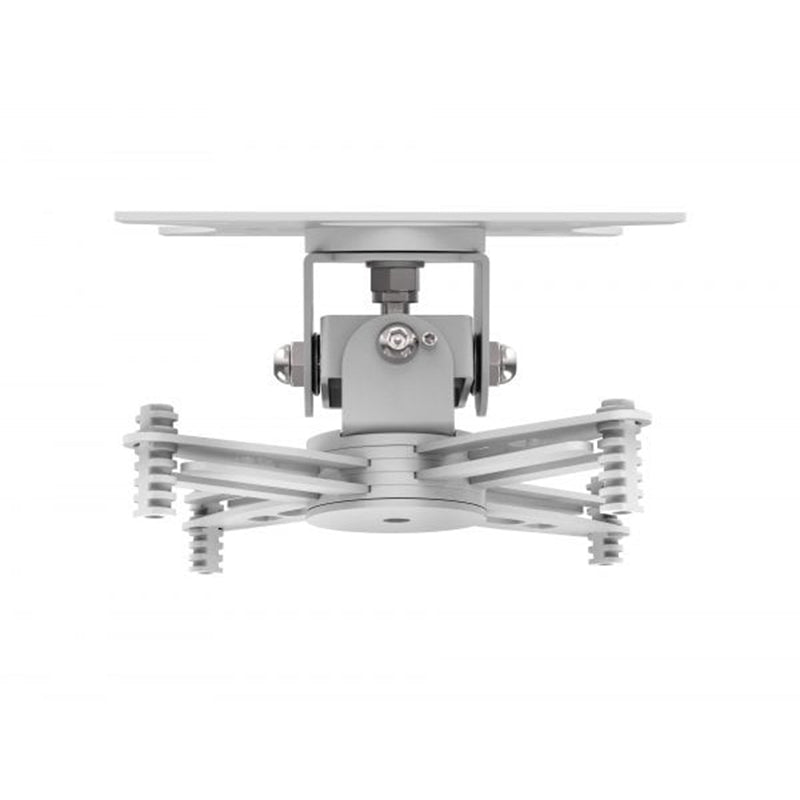

Vision VIS-1932372 Close-Coupled Projector Ceiling Mount

Regular price R 1,500.00
  • Universal projector ceiling mount for close-to-ceiling installation
  • All parts included and arrives 95% assembled reducing time onsite
  • 4 fully adjustable spider arms fit 99% of projectors

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Merchant West Epiphany Finance
Description

The Techmount TM-CC is a universal projector ceiling bracket designed to secure 99% of data projectors safety and sturdily to ceilings. It is designed for applications where no ‘drop’ is required so no pole is included. It holds the projector 110mm away from the ceiling.

Robust Construction

High standard of finish and over-engineered for stability and safety. A rugged high-quality satin-white finish blends with ceiling tiles.

Manoeuvrable

The top and bottom parts can rotate 360 degrees, and the spider arms have a maximum span of 340mm (13.4″).

Sloping Ceilings?

A tilting mechanism is built in allowing you to use the bracket with cathedral-type ceilings.
Safety Approved

As with all projector Techmounts a safety cable is included to attach to the projector. The TM-CC has a recommended maximum safe working load (SWL) of 10kg which is well within the limits of the product.

Easy fit

Fitting the bracket to the projector is simple; most projectors have threaded inserts in the bottom for attachment. Not all use the same diameter screws we provide a selection to suit almost all projectors. Simply adjust the arms on our bracket over the attachment holes, and insert a screw into the projector.

Tools Included

A spanner and pin-hex key are included.

Secure

Quick-release mechanisms make life easier for thieves so the TM-CC comes with secure pin-hex bolts.


SPECIFICATIONS

BOX DIMENSIONS - 244 x 174 x 120mm / 9.61″ x 6.85″ x 4.72″

PACKAGED WEIGHT - 1.9 kg / 4.19 lbs

SAFE WORKING LOAD - 10kg/ 22.05 lbs

COLOUR - Satin White

ACCESSORIES INCLUDED

  • 1 x H50 Pin-Hex key
  • 1 x H50 power drill hex bit
  • 1 x 17mm (0.7″) Spanner
  • 4 x M2.5 43mm (1.7″) pan slot for Optoma & Acer
  • 4 x M3 43mm (1.7″) screws
  • 4 x M4 43mm (1.7″) screws
  • 4 x M5 43mm (1.7″) screws
  • 4 x M6 43mm (1.7″) screws
  • 4 x M8 50mm (2.0″) Ceiling Fixtures with rawl plugs
  • 1 x Safety Tether

WARRANTY - Lifetime return-to-base

COMPLIANCES - TUV-GS Certification
