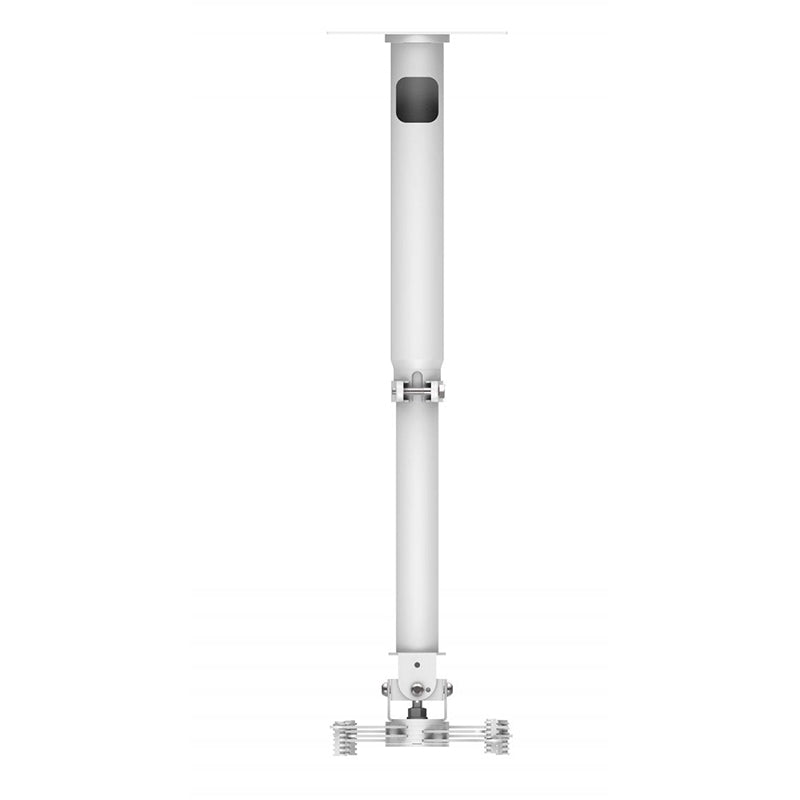

The TM-TELE Techmount is a projector ceiling bracket for anchoring any data projector safely to a ceiling. The telescopic design allows fast deployment and adjustment without the need cut and drill the pole. It has a greater range than most other telescopic mounts and the pole can be removed for “flush-mounting” the projector as close to the ceiling as possible. Note: unlike the TM-1200 the length of this bracket cannot be extended.
Thoughtful design detail include a length adjustment clamp system which requires only one hand.
A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.
A back-up fall-arrest tether is included which secures the projector to your bracket, and the pole has a mechanical stop so that the two parts of the pole cannot be separated. Vision recommends a maximum safe working load of 10kg which is well within the limits of the product and meets the BSi installation standard specification (PAS122:2009).

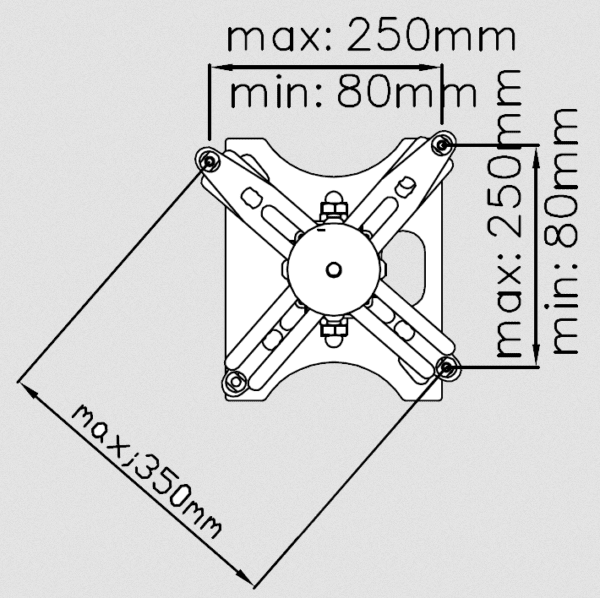

Projectors have threaded inserts in the bottom for attachment – but not all use the same diameter screws so Vision includes a selection to suit most projectors. Simply locate the “spider” arms on our bracket over the attachment holes, and insert a screw into the projector.
Obstruction-free Cable Management
Vision’s unique ‘chute-through’ system leaves cable access clear – even for big VGA connectors.
A spanner and pin-hex key are included. Vision also includes a hex-key bit for a power drill to speed up installation.
Quick-release mechanisms make life easier for thieves, so the TM-TELE is secure and features security bolts.
BOX DIMENSIONS - 393 x 150 x 80 mm / 15.47″ x 5.91″ x 3.15″
PACKAGED WEIGHT - 3 kg / 6.61 lbs
SAFE WORKING LOAD - 10kg / 22.05 lbs
COLOUR - Satin White
- 1 x H50 Pin-Hex key
- 1 x H50 power drill hex bit
- 1 x 17mm (0.7″) Spanner
- 4 x M3 43mm (1.7″) screws
- 4 x M4 43mm (1.7″) screws
- 4 x M5 43mm (1.7″) screws
- 4 x M6 43mm (1.7″) screws
- 4 x M2.5 43mm (1.7″) pan slot
- 4 x M8 50mm (2.0″) Ceiling Fixtures with rawl plugs
- 1 x Safety Tether
- 1 x Ceiling Trim Disc
WARRANTY - Lifetime return-to-base
COMPLIANCES - TUV-GS
